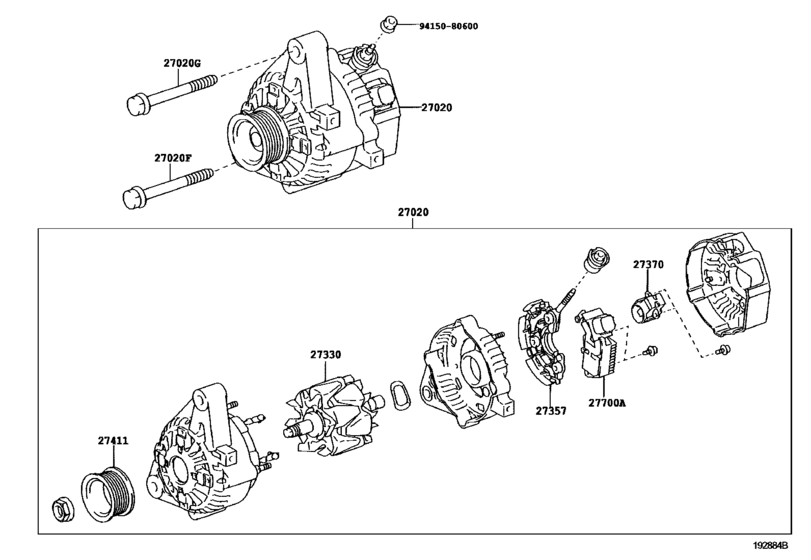

Alternator ([07.2007 - 08.2009] 12V 80A (0707-0908)1GRFE..GCC) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 07.2007
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31010 Alternator Assy[07.2007 - 08.2009] 1GRFE..GSJ15..GCC 12V 80A |
27060-31010 |
US $1,371.55 |
||
| replacement | |||||
|
27020
|
27020
27060-31011 Alternator Assy[07.2007 - 08.2009] 1GRFE..GSJ15..GCC 12V 80A |
27060-31011 |
US $858.38 |
||
|
27020
|
27020
27060-31180
Alternator Assy
[08.2009 - 11.2010] 1GRFE..GSJ15 12V 100A |
27060-31180 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-31260 Alternator Assy[08.2009 - 11.2010] 1GRFE..GSJ15 12V 100A |
27060-31260 |
from US $856.63 |
||
|
27020
|
27020
27060-31260 Alternator Assy[08.2014 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA 12V 100A |
27060-31260 |
from US $856.63 |
||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[08.2009 - 11.2010] 1GRFE..GSJ15 |
91552-81040 |
from US $1.12 |
||
|
27020F
|
27020F
91642-81065 Bolt(For Alternator)[07.2007 - 08.2009] 1GRFE..GSJ15 |
91642-81065 |
from US $1.25 |
||
|
27020G
|
27020G
91552-81070 Bolt(For Alternator)[08.2009 - 11.2010] 1GRFE..GSJ15 |
91552-81070 |
from US $1.48 |
||
|
27020G
|
27020G
91642-81065 Bolt(For Alternator)[07.2007 - 08.2009] 1GRFE..GSJ15 |
91642-81065 |
from US $1.25 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[08.2009 - 11.2010] 1GRFE..GSJ15..GCC |
27330-30070 |
— | ||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [04.2009 - 08.2009] 1GRFE..GSJ15..GCC |
27330-30130 |
US $202.68 |
||
|
27330
|
27330
27330-62220
Rotor Assy, Alternator
[07.2007 - 04.2009] 1GRFE..GSJ15..GCC |
27330-62220 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [07.2007 - 04.2009] 1GRFE..GSJ15..GCC |
27330-30130 |
US $202.68 |
||
|
27357
|
27357
27357-22200 Holder, Alternator, W/rectifier[07.2007 - 08.2009] 1GRFE..GSJ15..GCC |
27357-22200 |
from US $64.64 |
||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[08.2009 - 11.2010] 1GRFE..GSJ15..GCC |
27370-31220 |
from US $19.11 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[07.2007 - 08.2009] 1GRFE..GSJ15..GCC |
27370-75060 |
from US $15.22 |
||
|
27411
|
27411
27411-31200
Pulley, Alternator
[07.2007 - 08.2009] 1GRFE..GSJ15..GCC |
27411-31200 |
— | ||
|
27700A
|
27700A
27700-31040 Regulator Assy, GeneratorGENERATOR [07.2007 - 08.2009] 1GRFE..GSJ15..GCC |
27700-31040 |
from US $137.39 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
