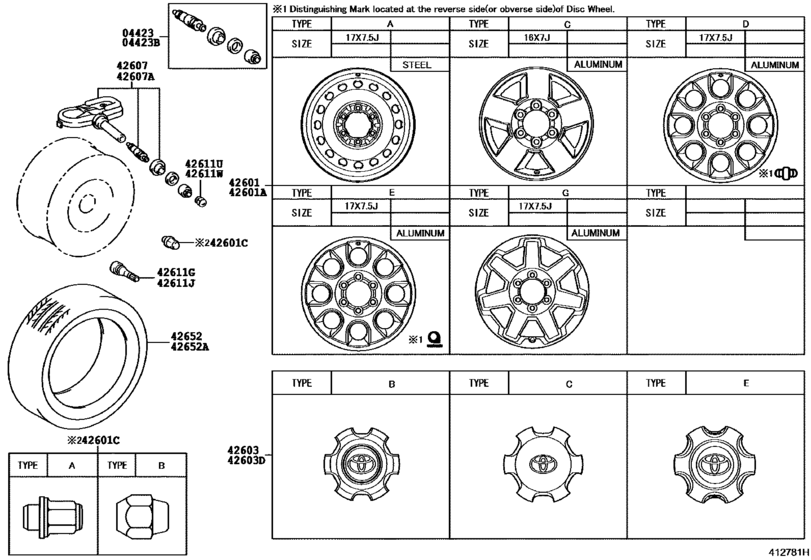

Disc Wheel & Wheel Cap ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 07.2007
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[08.2016 -] GSJ15..GCC |
04423-33060 |
from US $4.47 |
||
|
04423B
|
04423B
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[08.2016 -] GSJ15..GCC |
04423-33060 |
from US $4.47 |
||
|
42601
|
42601
42611-35330 Wheel, DiscDISC [11.2014 - 01.2015] GSJ15..ATM..GCC 17X7.5J,IMAGE PACKAGE&CONVENIENCE PACKAGE,TYPE A:REFER ILLUST. |
42611-35330 |
US $222.40 |
||
|
42601
|
42601
42611-35370 Wheel, DiscDISC [07.2007 - 11.2010] GSJ15 16X7J,TYPE C:REFER ILLUST. |
42611-35370 |
US $548.91 |
||
|
42601
|
42601
42611-35490 Wheel, Disc[11.2010 - 08.2013] GSJ15 17X7.5J,TYPE D:REFER ILLUST. |
42611-35490 |
US $598.42 |
||
|
42601
|
42601
42611-35500 Wheel, Disc[11.2010 - 08.2013] GSJ15 17X7.5J,TYPE E:REFER ILLUST. |
42611-35500 |
US $598.42 |
||
|
42601
|
42601
42611-35540 Wheel, Disc[08.2013 -] GSJ15..CHI,GCC,GEN,SA 17X7.5J,TYPE G:REFER ILLUST. |
42611-35540 |
US $565.54 |
||
|
42601A
|
42601A
42611-35330 Wheel, DiscDISC [11.2014 - 01.2015] GSJ15..ATM..GCC 17X7.5J,IMAGE PACKAGE&CONVENIENCE PACKAGE,TYPE A:REFER ILLUST. |
42611-35330 |
US $222.40 |
||
|
42601A
|
42601A
42611-35370 Wheel, DiscDISC [07.2007 - 11.2010] GSJ15 16X7J,TYPE C:REFER ILLUST. |
42611-35370 |
US $548.91 |
||
|
42601A
|
42601A
42611-35490 Wheel, Disc[11.2010 - 08.2013] GSJ15 17X7.5J,TYPE D:REFER ILLUST. |
42611-35490 |
US $598.42 |
||
|
42601A
|
42601A
42611-35500 Wheel, Disc[11.2010 - 08.2013] GSJ15 17X7.5J,TYPE E:REFER ILLUST. |
42611-35500 |
US $598.42 |
||
|
42601A
|
42601A
42611-35540 Wheel, Disc[08.2013 -] GSJ15..CHI,GCC,GEN,SA 17X7.5J,TYPE G:REFER ILLUST. |
42611-35540 |
US $565.54 |
||
|
42601C
|
42601C
90942-01058 Wheel Nut[07.2007 - 11.2010] GSJ15 TYPE A:REFER ILLUST. |
90942-01058 |
from US $5.23 |
||
|
42601C
|
42601C
90942-01104 Nut, Hub (For Axle)[11.2014 - 01.2015] GSJ15..ATM..GCC IMAGE PACKAGE&CONVENIENCE PACKAGE,TYPE B:REFER ILLUST. |
90942-01104 |
from US $3.86 |
||
|
42603
|
42603
42603-35840 Ornament Sub-Assy, Wheel HubWHEEL HUB [07.2007 - 11.2010] GSJ15 *ALU,TYPE B:REFER ILLUST. |
42603-35840 |
from US $47.99 |
||
|
42603
|
42603
4260B-35040 Ornament Sub-Assy, Wheel Hub[11.2010 - 08.2013] GSJ15 *ALU,TYPE C:REFER ILLUST. |
4260B-35040 |
from US $45.43 |
||
|
42603
|
42603
4260B-35080 Ornament Sub-Assy, Wheel Hub[08.2013 -] GSJ15..CHI,GCC,GEN,SA *ALU,TYPE E:REFER ILLUST. |
4260B-35080 |
from US $45.73 |
||
|
42603D
|
42603D
42603-35840 Ornament Sub-Assy, Wheel HubWHEEL HUB [07.2007 - 11.2010] GSJ15..GCC,GEN TYPE B:REFER ILLUST. |
42603-35840 |
from US $47.99 |
||
|
42607
|
42607
42607-30071 Valve Sub-Assy, Tire Pressure Monitor[08.2016 -] GSJ15..GCC |
42607-30071 |
from US $84.95 |
||
|
42607A
|
42607A
42607-30071 Valve Sub-Assy, Tire Pressure Monitor[08.2016 -] GSJ15..GCC |
42607-30071 |
from US $84.95 |
||
|
42611G
|
42611G
90942-05009 Valve (For Tubeless Tire)[07.2007 - 11.2010] GSJ15 |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611G
|
42611G
90080-94031 Valve (For Tubeless Tire)[07.2007 - 11.2010] GSJ15 |
90080-94031 |
US $1.46 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[07.2007 - 11.2010] GSJ15 |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[07.2007 - 11.2010] GSJ15 |
90080-94031 |
US $1.46 |
||
|
42611U
|
42611U
90942-05039 Cap, Tire ValveTIRE VALVE [08.2016 -] GSJ15..GCC |
90942-05039 |
from US $1.46 |
||
|
42611W
|
42611W
90942-05039 Cap, Tire ValveTIRE VALVE [08.2016 -] GSJ15..GCC |
90942-05039 |
from US $1.46 |
||
|
42652
|
42652
42652-35A30
Tire
[07.2007 - 11.2010] GSJ15..GCC,GEN 265/75R16,*D/L |
42652-35A30 |
— | ||
|
42652
|
42652
42652-35B50
Tire
[11.2010 -] GSJ15..(GCC,GEN)..LHD 265/70R17,*D/L |
42652-35B50 |
— | ||
|
42652A
|
42652A
42652-35A30
Tire
[07.2007 - 11.2010] GSJ15..GCC,GEN 265/75R16,*D/L |
42652-35A30 |
— | ||
|
42652A
|
42652A
42652-35B50
Tire
[11.2010 -] GSJ15..(GCC,GEN)..LHD 265/70R17,*D/L |
42652-35B50 |
— | ||
