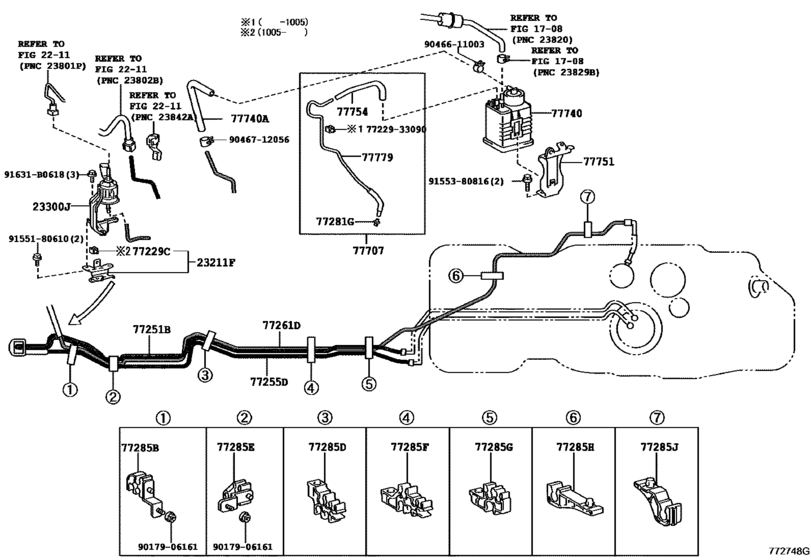

Fuel Tank & Tube ([08.2009 - ] FUEL TUBE (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 07.2007
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23211F
|
23211F
23264-31010
Bracket
[08.2009 - 04.2010] 1GRFE..GSJ15 |
23264-31010 |
— | ||
| replacement | |||||
|
23211F
|
23211F
23264-31011 Bracket[08.2009 - 04.2010] 1GRFE..GSJ15 |
23264-31011 |
US $6.12 |
||
|
23211F
|
23211F
23264-31011 Bracket[05.2010 - 11.2010] 1GRFE..GSJ15 |
23264-31011 |
US $6.12 |
||
|
23300J
|
23300J
23300-31100 Filter, Fuel(For Efi)FUEL(FOR EFI) [07.2007 - 08.2009] 1GRFE..GSJ15 |
23300-31100 |
from US $63.78 |
||
|
23300J
|
23300J
23300-31160 Filter Assy, FuelFUEL [08.2009 - 11.2010] 1GRFE..GSJ15 |
23300-31160 |
from US $51.03 |
||
|
77229C
|
77229C
77229-33090 Clamp, Breather Tube[05.2010 - 11.2010] GSJ15 |
77229-33090 |
US $3.58 |
||
|
77251B
|
77251B
77205-35300 Tube, Fuel Main[07.2007 - 08.2009] GSJ15 |
77205-35300 |
from US $30.89 |
||
|
77251B
|
77251B
77205-35330
Tube, Fuel Main
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77205-35330 |
— | ||
|
77251B
|
77251B
77205-6A340 Tube, Fuel MainFUEL MAIN [08.2009 - 11.2010] GSJ15 |
77205-6A340 |
US $37.04 |
||
|
77255D
|
77255D
77255-35A20
Tube, Fuel Return
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77255-35A20 |
— | ||
|
77255D
|
77255D
77255-3D070 Tube, Fuel Return[07.2007 - 08.2009] GSJ15 |
77255-3D070 |
US $33.37 |
||
|
77255D
|
77255D
77255-60B80
Tube, Fuel Return
[08.2009 - 11.2010] GSJ15 |
77255-60B80 |
— | ||
|
77261D
|
77261D
77261-35630 Tube, Fuel Tank To CanisterFUEL TANK TO CANISTER [08.2009 - 11.2010] GSJ15 |
77261-35630 |
US $25.19 |
||
|
77261D
|
77261D
77261-35680
Tube, Fuel Tank To Canister
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77261-35680 |
— | ||
|
77281G
|
77281G
77281-60430 Clamp, Fuel HoseFUEL HOSE [08.2009 - 11.2010] GSJ15 |
77281-60430 |
US $1.92 |
||
|
77285B
|
77285B
77285-35631 Clamp, Fuel Tube W/grommet, No.1[07.2007 - 11.2010] GSJ15 |
77285-35631 |
US $2.97 |
||
|
77285D
|
77285D
77285-35670 Clamp, Fuel Tube, No.1[07.2007 - 11.2010] GSJ15 |
77285-35670 |
US $6.27 |
||
|
77285E
|
77285E
77285-35641 Clamp, Fuel Tube W/grommet, No.1[07.2007 - 11.2010] GSJ15 |
77285-35641 |
US $5.59 |
||
|
77285F
|
77285F
77285-35680 Clamp, Fuel Tube, No.1[07.2007 - 11.2010] GSJ15 |
77285-35680 |
US $10.13 |
||
|
77285G
|
77285G
77285-35690 Clamp, Fuel Tube, No.1[07.2007 - 11.2010] GSJ15 |
77285-35690 |
US $8.04 |
||
|
77285G
|
77285G
77285-35830
Clamp, Fuel Tube, No.1
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77285-35830 |
— | ||
|
77285H
|
77285H
77285-35700 Clamp, Fuel Tube, No.1[07.2007 - 11.2010] GSJ15 |
77285-35700 |
US $6.29 |
||
|
77285H
|
77285H
77285-35840
Clamp, Fuel Tube, No.1
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77285-35840 |
— | ||
|
77285J
|
77285J
77285-35710 Clamp, Fuel Tube, No.1[07.2007 - 11.2010] GSJ15 |
77285-35710 |
US $6.64 |
||
|
77285J
|
77285J
77285-35800
Clamp, Fuel Tube, No.1
[11.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77285-35800 |
— | ||
|
77707
|
77707
77707-60011 Tube Sub-Assy, Charcoal Canister Outlet[07.2007 - 08.2009] GSJ15 |
77707-60011 |
US $18.20 |
||
|
77707
|
77707
77707-60041
Tube Sub-Assy, Charcoal Canister Outlet
[08.2012 -] GSJ15..GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77707-60041 |
— | ||
|
77707
|
77707
77707-60050
Tube Sub-Assy, Charcoal Canister Outlet
[08.2009 - 04.2010] GSJ15 |
77707-60050 |
— | ||
| replacement | |||||
|
77707
|
77707
77707-60051 Tube Sub-Assy, Charcoal Canister Outlet[08.2009 - 04.2010] GSJ15 |
77707-60051 |
US $21.32 |
||
|
77707
|
77707
77707-60051 Tube Sub-Assy, Charcoal Canister Outlet[05.2010 - 11.2010] GSJ15 |
77707-60051 |
US $21.32 |
||
|
77740
|
77740
77704-60380 Canister Assy, Charcoal[08.2012 -] GSJ15..GCC FUEL TANK-WITH(SUB TANK) |
77704-60380 |
US $261.90 |
||
|
77740
|
77740
77704-63010 Canister Sub-Assy, Charcoal[07.2007 - 11.2010] GSJ15 |
77704-63010 |
from US $118.08 |
||
|
77740A
|
77740A
95333-06040 Hose[08.2009 - 11.2010] GSJ15 *H,L=360 |
95333-06040 |
from US $13.08 |
||
|
77751
|
77751
77751-60290 Bracket, Charcoal Canister Base[07.2007 - 11.2010] GSJ15 |
77751-60290 |
US $7.57 |
||
|
77751
|
77751
77751-60340
Bracket, Charcoal Canister Base
[08.2012 -] GSJ15..GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77751-60340 |
— | ||
|
77754
|
77754
77754-60370
Hose, Charcoal Canister Outlet, No.1
[08.2012 -] GSJ15..GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77754-60370 |
— | ||
|
77754
|
77754
77754-60380 Hose, Charcoal Canister Outlet, No.1CHARCOAL CANISTER OUTLET [08.2009 - 11.2010] GSJ15 L=140 |
77754-60380 |
US $7.43 |
||
|
77779
|
77779
77779-60070 Tube, Charcoal Canister OutletCHARCOAL CANISTER OUTLET [08.2009 - 04.2010] GSJ15 |
77779-60070 |
US $12.96 |
||
| replacement | |||||
|
77779
|
77779
77779-60071 Tube, Charcoal Canister Outlet[08.2009 - 04.2010] GSJ15 |
77779-60071 |
US $9.76 |
||
|
77779
|
77779
77779-60071 Tube, Charcoal Canister Outlet[05.2010 - 11.2010] GSJ15 |
77779-60071 |
US $9.76 |
||
|
77779
|
77779
77779-60081
Tube, Charcoal Canister Outlet
[08.2012 -] GSJ15..GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77779-60081 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.65 |
||
|
7722933090
|
7722933090
77229-33090 Clamp, Breather Tube |
77229-33090 |
US $3.58 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9046611003
|
9046611003
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
9046611003
|
9046611003
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-A0001 |
US $3.15 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.72 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.82 |
||
