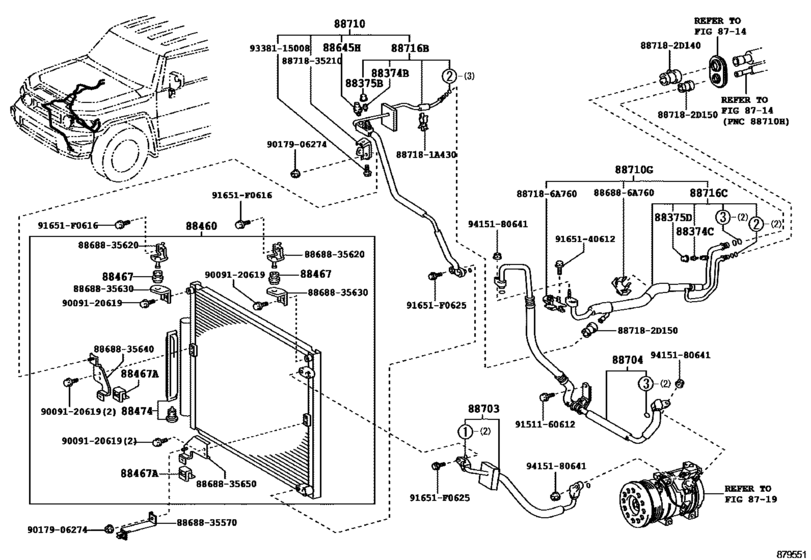

Heating & Air Conditioning - Cooler Piping ([07.2007 - 08.2009] (0707-0908)GCC) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 07.2007
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[07.2007 - 11.2010] GSJ15..GCC |
88374-30010 |
from US $3.04 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[07.2007 - 11.2010] GSJ15..GCC |
88374-30010 |
from US $3.04 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[07.2007 - 11.2010] GSJ15..GCC |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[07.2007 - 11.2010] GSJ15..GCC |
88375-30290 |
from US $0.78 |
||
|
88460
|
88460
88460-35380 Condenser Assy, CoolerCOOLER [07.2007 - 11.2010] GSJ15 |
88460-35380 |
from US $544.54 |
||
|
88467
|
88467
88467-28050 Cushion, Cooler Condenser, No.1[07.2007 - 11.2010] GSJ15 |
88467-28050 |
US $2.64 |
||
|
88467A
|
88467A
88467-35080 Cushion, Cooler Condenser, No.1[07.2007 - 11.2010] GSJ15 |
88467-35080 |
from US $3.84 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[07.2007 - 11.2010] GSJ15 |
88474-17010 |
from US $60.10 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[07.2007 - 11.2010] GSJ15 |
88645-34010 |
from US $31.94 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[07.2007 - 11.2010] GSJ15 |
88645-04040 |
US $120.41 |
||
|
88703
|
88703
88703-35070
Hose Sub-Assy, Discharge
[07.2007 - 08.2007] GSJ15..GCC |
88703-35070 |
— | ||
| replacement | |||||
|
88703
|
88703
88703-35072 Hose Sub-Assy, Discharge[07.2007 - 08.2007] GSJ15..GCC |
88703-35072 |
US $141.42 |
||
|
88703
|
88703
88703-35071
Hose Sub-Assy, Discharge
[09.2007 - 07.2009] GSJ15..GCC |
88703-35071 |
— | ||
| replacement | |||||
|
88703
|
88703
88703-35072 Hose Sub-Assy, Discharge[09.2007 - 07.2009] GSJ15..GCC |
88703-35072 |
US $141.42 |
||
|
88703
|
88703
88703-35072 Hose Sub-Assy, Discharge[08.2009 - 11.2010] GSJ15..GCC |
88703-35072 |
US $141.42 |
||
|
88704
|
88704
88704-35080 Hose Sub-Assy, SuctionSUCTION [08.2009 - 11.2010] GSJ15 |
88704-35080 |
US $151.42 |
||
|
88704
|
88704
88704-60390 Hose Sub-Assy, Suction[07.2007 - 08.2009] GSJ15..GCC |
88704-60390 |
US $205.30 |
||
|
88710
|
88710
88710-35700 Tube Assy, Air ConditionerAIRCONDITIONER [07.2007 - 11.2010] GSJ15 |
88710-35700 |
from US $193.60 |
||
|
88710G
|
88710G
88710-35710
Tube & Accessory Assy, Air Conditioner, No.2
[07.2007 - 08.2009] GSJ15..GCC |
88710-35710 |
— | ||
| replacements | |||||
|
88710G
|
88710G
88688-6A760
Bracket, Cooler Diaphragm
[07.2007 - 08.2009] GSJ15..GCC |
88688-6A760 |
— | ||
|
88710G
|
88710G
88710-35720
Pipe, Cooler Refrigerant Liquid, C
[07.2007 - 08.2009] GSJ15..GCC |
88710-35720 |
— | ||
|
88710G
|
88710G
88718-6A760
Pipe, Cooler Refrigerant Suction, No.2
[07.2007 - 08.2009] GSJ15..GCC |
88718-6A760 |
— | ||
|
88710G
|
88710G
88710-35760
Tube & Accessory Assy, Air Conditioner, No.2
[08.2009 - 11.2010] GSJ15..GCC |
88710-35760 |
— | ||
|
88716B
|
88716B
88716-35730 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [07.2007 - 11.2010] GSJ15 |
88716-35730 |
US $93.18 |
||
|
88716C
|
88716C
88710-35720
Pipe, Cooler Refrigerant Liquid, C
[07.2007 - 08.2009] GSJ15..GCC |
88710-35720 |
— | ||
|
88716C
|
88716C
88710-35780
Pipe, Cooler Refrigerant Liquid, C
[08.2009 - 11.2010] GSJ15..GCC |
88710-35780 |
— | ||
|
91651F0616
|
91651F0616
91651-F0616 BOLT |
91651-F0616 |
US $1.97 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A760
|
886886A760
88688-6A760
Bracket, Cooler Diaphragm
|
88688-6A760 |
— | ||
|
887181A430
|
887181A430
88718-1A430
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-1A430 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.55 |
||
|
887186A760
|
887186A760
88718-6A760
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A760 |
— | ||
|
8868835570
|
8868835570
88688-35570 Bracket, Cooler Condenser, No.1 |
88688-35570 |
from US $7.69 |
||
|
8868835620
|
8868835620
88688-35620
Bracket, Cooler Diaphragm
|
88688-35620 |
— | ||
|
8868835630
|
8868835630
88688-35630
Bracket, Cooler Diaphragm
|
88688-35630 |
— | ||
|
8868835640
|
8868835640
88688-35640
Bracket, Cooler Diaphragm
|
88688-35640 |
— | ||
|
8868835650
|
8868835650
88688-35650
Bracket, Cooler Diaphragm
|
88688-35650 |
— | ||
|
8871835210
|
8871835210
88718-35210
Pipe, Cooler Refrigerant Suction, No.2
|
88718-35210 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.61 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.95 |
||
