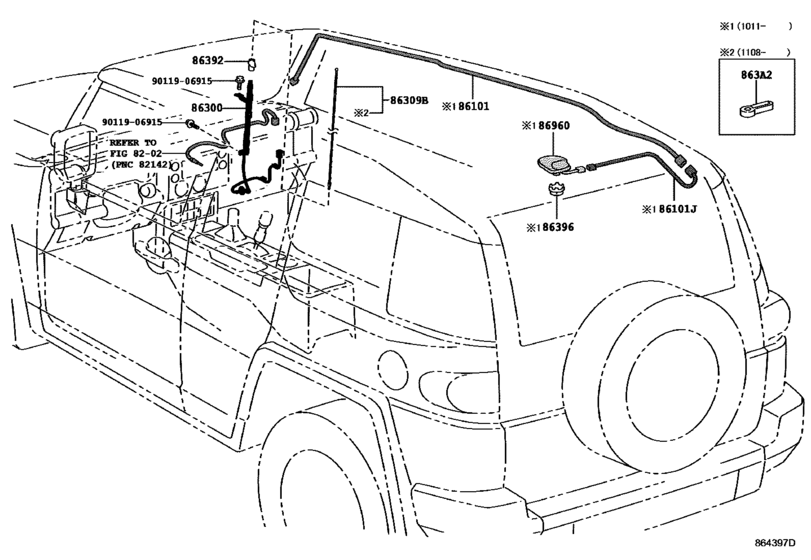

Antenna ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
863A2
|
863A2
863A2-0C010 Tool, Pole Antenna[08.2011 - 07.2014] GSJ1# |
863A2-0C010 |
from US $3.99 |
||
|
86101
|
86101
86101-35330
Cord Sub-Assy, Antenna
[11.2010 - 07.2014] GSJ1# |
86101-35330 |
— | ||
|
86101J
|
86101J
86101-35320
Cord Sub-Assy, Antenna, No.2
[11.2010 - 07.2014] GSJ1# |
86101-35320 |
— | ||
|
86300
|
86300
86300-35180 Antenna Assy, W/holderW/HOLDER [01.2006 - 11.2010] GSJ1# |
86300-35180 |
from US $59.85 |
||
|
86300
|
86300
86300-35190 Antenna Assy, W/holder[11.2010 - 07.2014] GSJ1# |
86300-35190 |
from US $46.99 |
||
|
86309B
|
86309B
86309-0C020 Pole Sub-Assy, Pull Top Antenna[08.2011 - 07.2014] GSJ1# |
86309-0C020 |
from US $31.07 |
||
|
86309B
|
86309B
86309-42060 Pole Sub-Assy, Pull Top AntennaROOF ANTENNA [01.2006 - 03.2006] GSJ1# |
86309-42060 |
US $43.97 |
||
| replacement | |||||
|
86309B
|
86309B
86309-0C020 Pole Sub-Assy, Pull Top Antenna[01.2006 - 03.2006] GSJ1# |
86309-0C020 |
from US $31.07 |
||
|
86309B
|
86309B
86309-AA041 Pole Sub-Assy, Pull Top Antenna[04.2006 - 02.2010] GSJ1# |
86309-AA041 |
US $36.55 |
||
| replacement | |||||
|
86309B
|
86309B
86309-0C020 Pole Sub-Assy, Pull Top Antenna[04.2006 - 02.2010] GSJ1# |
86309-0C020 |
from US $31.07 |
||
|
86309B
|
86309B
86309-AA042 Pole Sub-Assy, Pull Top AntennaPULL TOP ANTENNA [03.2010 - 11.2010] GSJ1# |
86309-AA042 |
US $36.55 |
||
| replacement | |||||
|
86309B
|
86309B
86309-0C020 Pole Sub-Assy, Pull Top Antenna[03.2010 - 11.2010] GSJ1# |
86309-0C020 |
from US $31.07 |
||
|
86392
|
86392
86392-35031
Ornament, Antenna
[01.2006 - 11.2010] GSJ1# |
86392-35031 |
— | ||
| replacement | |||||
|
86392
|
86392
86392-35032 Ornament, Antenna[01.2006 - 11.2010] GSJ1# |
86392-35032 |
from US $9.20 |
||
|
86392
|
86392
86392-35032 Ornament, Antenna[06.2014 - 07.2014] GSJ1# |
86392-35032 |
from US $9.20 |
||
|
86396
|
86396
86396-47010 Nut, AntennaANTENNA [11.2010 - 07.2014] GSJ1# |
86396-47010 |
US $7.71 |
||
|
86960
|
86960
86960-35030-A0
Antenna Assy, Satellite Radio
[11.2010 - 07.2014] GSJ1# WHITE,058 ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS |
86960-35030-A0 |
— | ||
|
86960
|
86960
86960-35030-D0
Antenna Assy, Satellite Radio
[08.2011 - 08.2012] GSJ1# RED,3L5 |
86960-35030-D0 |
— | ||
|
86960
|
86960
86960-35030-G0
Antenna Assy, Satellite Radio
[01.2011 - 07.2011] GSJ15 SPECIAL EDITION,DK.GREEN,6V7 |
86960-35030-G0 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
