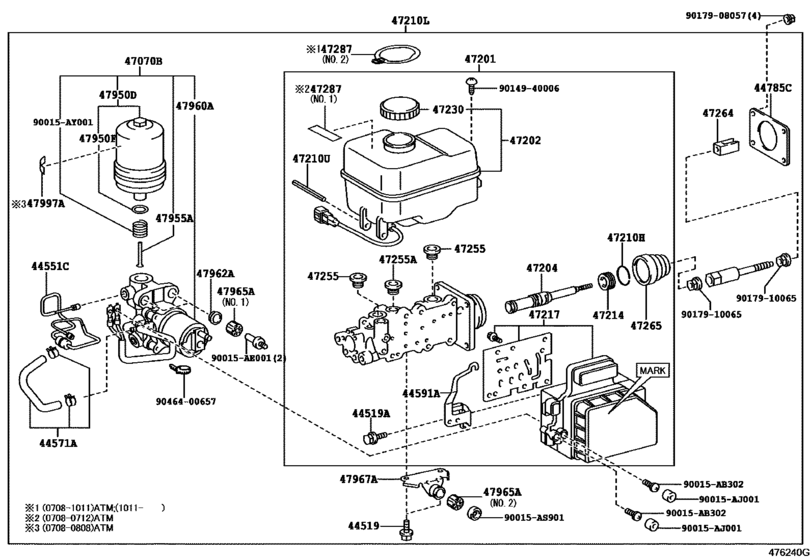

Brake Master Cylinder ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44519
|
44519
44519-24020 Bolt, Brake Actuator[01.2007 - 11.2010] GSJ1# |
44519-24020 |
US $0.83 |
||
|
44519
|
44519
90015-AA701
Bolt, Brake Actuator
[01.2006 - 01.2007] GSJ1# |
90015-AA701 |
— | ||
|
44519A
|
44519A
44519-24020 Bolt, Brake Actuator[07.2007 - 11.2010] GSJ1# |
44519-24020 |
US $0.83 |
||
|
44519A
|
44519A
90015-AA701
Bolt, Brake Actuator
[01.2006 - 07.2007] GSJ1# |
90015-AA701 |
— | ||
|
44551C
|
44551C
44551-60040 Tube, Brake Actuator, No.1[01.2006 - 11.2010] GSJ1# |
44551-60040 |
US $6.64 |
||
|
44571A
|
44571A
44571-60020 Hose, Brake Actuator, No.1[01.2006 - 11.2010] GSJ1# |
44571-60020 |
US $7.16 |
||
|
44591A
|
44591A
44591-35070 Bracket, Brake Actuator, No.1BRAKE ACTUATOR, NO.1 [01.2006 - 11.2010] GSJ1# |
44591-35070 |
US $4.22 |
||
|
44785C
|
44785C
44785-60020 Gasket, Brake Booster[01.2006 - 11.2010] GSJ1# |
44785-60020 |
from US $1.65 |
||
|
47070B
|
47070B
47070-60030
Pump Assy, Brake Booster W/accumulator
[01.2006 - 02.2009] GSJ1# |
47070-60030 |
— | ||
| replacement | |||||
|
47070B
|
47070B
47070-60050 Pump Assy, Brake Booster W/accumulatorBRAKE BOOSTER W/ACCUMULATOR [01.2006 - 02.2009] GSJ1# |
47070-60050 |
from US $1,017.13 |
||
|
47070B
|
47070B
47070-60050 Pump Assy, Brake Booster W/accumulatorBRAKE BOOSTER W/ACCUMULATOR [03.2009 - 11.2010] GSJ1# |
47070-60050 |
from US $1,017.13 |
||
|
47201
|
47201
47025-35100
Cylinder Sub-Assy, Brake Master
[01.2006 - 07.2007] GSJ15..MTM |
47025-35100 |
— | ||
|
47201
|
47201
47025-35101
Cylinder Sub-Assy, Brake Master
[07.2007 - 08.2008] GSJ15..MTM |
47025-35101 |
— | ||
|
47201
|
47201
47025-35110
Cylinder Sub-Assy, Brake Master
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35110 |
— | ||
| replacement | |||||
|
47201
|
47201
47025-35111
Cylinder Sub-Assy, Brake Master
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35111 |
— | ||
|
47201
|
47201
47025-35111
Cylinder Sub-Assy, Brake Master
[10.2006 - 07.2007] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35111 |
— | ||
|
47201
|
47201
47025-35112
Cylinder Sub-Assy, Brake Master
[07.2007 - 08.2008] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35112 |
— | ||
|
47201
|
47201
47025-35140
Cylinder Sub-Assy, Brake Master
[08.2008 - 08.2009] GSJ15..MTM |
47025-35140 |
— | ||
|
47201
|
47201
47025-35141
Cylinder Sub-Assy, Brake Master
[08.2009 - 11.2010] GSJ15..MTM |
47025-35141 |
— | ||
|
47201
|
47201
47025-35150
Cylinder Sub-Assy, Brake Master
[08.2008 - 08.2009] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35150 |
— | ||
|
47201
|
47201
47025-35151
Cylinder Sub-Assy, Brake Master
[08.2009 - 11.2010] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47025-35151 |
— | ||
|
47201
|
47201
47025-35230
Cylinder Sub-Assy, Brake Master
[11.2010 - 08.2011] GSJ15..MTM REFER TO PNC 47217 |
47025-35230 |
— | ||
|
47201
|
47201
47025-35231
Cylinder Sub-Assy, Brake Master
[08.2011 - 08.2012] GSJ15..MTM REFER TO PNC 47217 |
47025-35231 |
— | ||
|
47201
|
47201
47025-35232
Cylinder Sub-Assy, Brake Master
[08.2012 - 07.2014] GSJ15..MTM REFER TO PNC 47217 |
47025-35232 |
— | ||
|
47202
|
47202
47220-60180 Reservoir Sub-Assy, Brake Master Cylinder[01.2006 - 11.2010] GSJ1# |
47220-60180 |
from US $84.91 |
||
|
47204
|
47204
47026-60090 Piston, Master CylinderMASTER CYLINDER [01.2006 - 11.2010] GSJ1# |
47026-60090 |
from US $55.78 |
||
|
47210H
|
47210H
90520-32012 Ring, Snap(For Brake Master Cylinder)[01.2006 - 11.2010] GSJ1# |
90520-32012 |
US $1.10 |
||
|
47210L
|
47210L
47050-35060
Brake Booster Assy, W/master Cylinder
[01.2006 - 06.2007] GSJ15..MTM |
47050-35060 |
— | ||
| replacement | |||||
|
47210L
|
47210L
47050-35061
Brake Booster Assy, W/master Cylinder
[01.2006 - 06.2007] GSJ15..MTM |
47050-35061 |
— | ||
|
47210L
|
47210L
47050-35061
Brake Booster Assy, W/master Cylinder
[07.2007 - 08.2008] GSJ15..MTM |
47050-35061 |
— | ||
|
47210L
|
47210L
47050-35070
Brake Booster Assy, W/master Cylinder
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35070 |
— | ||
| replacement | |||||
|
47210L
|
47210L
47050-35072
Brake Booster Assy, W/master Cylinder
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35072 |
— | ||
|
47210L
|
47210L
47050-35071
Brake Booster Assy, W/master Cylinder
[10.2006 - 06.2007] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35071 |
— | ||
| replacement | |||||
|
47210L
|
47210L
47050-35072
Brake Booster Assy, W/master Cylinder
[10.2006 - 06.2007] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35072 |
— | ||
|
47210L
|
47210L
47050-35072
Brake Booster Assy, W/master Cylinder
[07.2007 - 08.2008] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35072 |
— | ||
|
47210L
|
47210L
47050-35110
Brake Booster Assy, W/master Cylinder
[08.2008 - 08.2009] GSJ15..MTM |
47050-35110 |
— | ||
|
47210L
|
47210L
47050-35111
Brake Booster Assy, W/master Cylinder
[08.2009 - 11.2010] GSJ15..MTM |
47050-35111 |
— | ||
|
47210L
|
47210L
47050-35120
Brake Booster Assy, W/master Cylinder
[08.2008 - 08.2009] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35120 |
— | ||
|
47210L
|
47210L
47050-35121
Brake Booster Assy, W/master Cylinder
[08.2009 - 11.2010] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47050-35121 |
— | ||
|
47210L
|
47210L
47050-35180
Brake Booster Assy, W/master Cylinder
[11.2010 - 08.2011] GSJ15..MTM REFER TO PNC 47217 |
47050-35180 |
— | ||
|
47210L
|
47210L
47050-35181
Brake Booster Assy, W/master Cylinder
[08.2011 - 08.2012] GSJ15..MTM REFER TO PNC 47217 |
47050-35181 |
— | ||
|
47210L
|
47210L
47050-35182
Brake Booster Assy, W/master Cylinder
[08.2012 - 07.2014] GSJ15..MTM REFER TO PNC 47217 |
47050-35182 |
— | ||
|
47210U
|
47210U
90029-15803 Ring Pin, Brake Master Cylinder[01.2006 - 11.2010] GSJ1# |
90029-15803 |
US $1.05 |
||
|
47214
|
47214
47027-60090 Plug, Master CylinderMASTER CYLINDER [01.2006 - 11.2010] GSJ1# |
47027-60090 |
US $33.20 |
||
|
47217
|
47217
47217-35040
Solenoid, Master Cylinder
[01.2006 - 07.2007] GSJ15..MTM |
47217-35040 |
— | ||
| replacement | |||||
|
47217
|
47217
47217-35080
Solenoid, Master Cylinder
[01.2006 - 07.2007] GSJ15..MTM |
47217-35080 |
— | ||
|
47217
|
47217
47217-35050
Solenoid, Master Cylinder
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35050 |
— | ||
| replacement | |||||
|
47217
|
47217
47217-35090
Solenoid, Master Cylinder
[01.2006 - 09.2006] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35090 |
— | ||
|
47217
|
47217
47217-35051
Solenoid, Master Cylinder
[10.2006 - 07.2007] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35051 |
— | ||
| replacement | |||||
|
47217
|
47217
47217-35090
Solenoid, Master Cylinder
[10.2006 - 07.2007] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35090 |
— | ||
|
47217
|
47217
47217-35080
Solenoid, Master Cylinder
[07.2007 - 08.2008] GSJ15..MTM |
47217-35080 |
— | ||
|
47217
|
47217
47217-35090
Solenoid, Master Cylinder
[07.2007 - 08.2008] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35090 |
— | ||
|
47217
|
47217
47217-35130
Solenoid, Master Cylinder
[08.2008 - 08.2009] GSJ15..MTM |
47217-35130 |
— | ||
|
47217
|
47217
47217-35131
Solenoid, Master Cylinder
[08.2009 - 11.2010] GSJ15..MTM |
47217-35131 |
— | ||
|
47217
|
47217
47217-35140
Solenoid, Master Cylinder
[08.2008 - 08.2009] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35140 |
— | ||
|
47217
|
47217
47217-35141
Solenoid, Master Cylinder
[08.2009 - 11.2010] GSJ15..MTM DIFFERENTIAL LOCK-WITH |
47217-35141 |
— | ||
|
47217
|
47217
47217-35200
Solenoid, Master Cylinder
[11.2010 - 08.2011] GSJ15..MTM MARK=89541-35100 |
47217-35200 |
— | ||
|
47217
|
47217
47217-35201
Solenoid, Master Cylinder
[08.2011 - 08.2012] GSJ15..MTM MARK=89541-35101 |
47217-35201 |
— | ||
|
47217
|
47217
47217-35202
Solenoid, Master Cylinder
[08.2012 - 07.2014] GSJ15..MTM MARK=89541-35102 |
47217-35202 |
— | ||
|
47230
|
47230
47230-24010
Cap Assy, Brake Master Cylinder Reservoir Filler
[01.2006 - 08.2009] GSJ1# |
47230-24010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[01.2006 - 08.2009] GSJ1# |
47230-47090 |
from US $11.74 |
||
|
47230
|
47230
47230-60210
Cap Assy, Brake Master Cylinder Reservoir Filler
[11.2010 - 07.2014] GSJ1# |
47230-60210 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[11.2010 - 07.2014] GSJ1# |
47230-47090 |
from US $11.74 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[01.2006 - 11.2010] GSJ1# |
47255-16010 |
from US $6.45 |
||
|
47255A
|
47255A
31417-35010 Grommet[01.2006 - 11.2010] GSJ1# |
31417-35010 |
from US $1.98 |
||
|
47264
|
47264
47264-60020 Clevis, Master Cylinder Push Rod[01.2006 - 11.2010] GSJ1# |
47264-60020 |
US $3.58 |
||
|
47265
|
47265
90029-70001 Boot, Master Cylinder[01.2006 - 11.2010] GSJ1# |
90029-70001 |
from US $3.84 |
||
|
47287
|
47287
47287-60180 Label, Brake Fluid Information[11.2010 - 02.2012] GSJ1# |
47287-60180 |
US $3.49 |
||
| replacement | |||||
|
47287
|
47287
47287-60181 Label, Brake Fluid Information[11.2010 - 02.2012] GSJ1# |
47287-60181 |
US $3.32 |
||
|
47287
|
47287
47287-60181 Label, Brake Fluid Information[02.2012 - 07.2014] GSJ1# |
47287-60181 |
US $3.32 |
||
|
47950D
|
47950D
47950-60020 Accumulator Assy, Brake Booster[01.2006 - 11.2010] GSJ1# |
47950-60020 |
US $249.60 |
||
|
47950F
|
47950F
90301-13014 Ring, O(For Brake Booster Accumulator)[01.2006 - 11.2010] GSJ1# |
90301-13014 |
from US $2.87 |
||
|
47955A
|
47955A
47955-60010 Pipe, Brake Booster Accumulator[01.2006 - 11.2010] GSJ1# |
47955-60010 |
US $2.33 |
||
|
47960A
|
47960A
47960-60050 Pump Assy, Brake Booster[03.2009 - 11.2010] GSJ1# |
47960-60050 |
from US $934.75 |
||
|
47960A
|
47960A
47960-60090
Pump Assy, Brake Booster
[01.2006 - 03.2009] GSJ1# |
47960-60090 |
— | ||
| replacement | |||||
|
47960A
|
47960A
47960-60050 Pump Assy, Brake Booster[01.2006 - 03.2009] GSJ1# |
47960-60050 |
from US $934.75 |
||
|
47962A
|
47962A
47962-60090 Collar, Brake Booster Pump[01.2006 - 11.2010] GSJ1# |
47962-60090 |
from US $0.55 |
||
|
47965A
|
47965A
47965-30010 Bush, Brake Booster Pump[01.2006 - 11.2010] GSJ1# NO.1 |
47965-30010 |
from US $3.76 |
||
|
47965A
|
47965A
90015-AL001 Bush, Brake Booster Pump[01.2006 - 11.2010] GSJ1# NO.2 |
90015-AL001 |
US $2.77 |
||
|
47967A
|
47967A
47967-60090 Bracket, Brake Booster Pump, No.1[01.2006 - 11.2010] GSJ1# |
47967-60090 |
US $7.28 |
||
|
90015AB302
|
90015AB302
90015-AB302 New Genuine Part |
90015-AB302 |
US $0.87 |
||
|
90015AE001
|
90015AE001
90015-AE001 PIN |
90015-AE001 |
US $1.22 |
||
|
90015AJ001
|
90015AJ001
90015-AJ001 New Genuine Part |
90015-AJ001 |
US $1.16 |
||
|
90015AS901
|
90015AS901
90015-AS901 CLIP |
90015-AS901 |
US $2.80 |
||
|
90015AY001
|
90015AY001
90015-AY001 SPRING COMPRESSION |
90015-AY001 |
US $1.61 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.74 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9046400657
|
9046400657
90464-00657 CLAMP |
90464-00657 |
US $0.96 |
||
