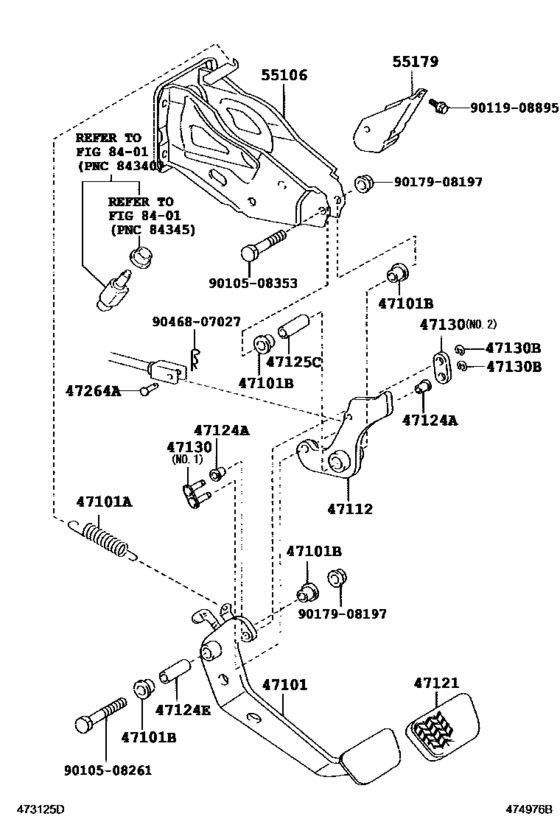

Brake Pedal & Bracket ([01.2006 - 01.2010] (0601-1001)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-35430
Pedal Sub-Assy, Brake
[01.2006 - 01.2010] GSJ15..MTM |
47101-35430 |
— | ||
|
47101A
|
47101A
90507-20033 Spring(For Brake Pedal Return)[01.2006 - 11.2010] GSJ1# |
90507-20033 |
US $2.52 |
||
|
47101B
|
47101B
90386-14015 Bush(For Clutch Pedal)[01.2006 - 01.2010] GSJ1# |
90386-14015 |
from US $1.65 |
||
|
47112
|
47112
47112-35040 Lever, Brake PedalBRAKE PEDAL [01.2006 - 01.2010] GSJ1# |
47112-35040 |
US $17.04 |
||
|
47121
|
47121
31321-52010 Pad, Brake Pedal[01.2006 - 11.2010] GSJ15..MTM |
31321-52010 |
from US $1.94 |
||
|
47124A
|
47124A
47144-34010 Collar(For Brake Pedal Shaft)[01.2006 - 01.2010] GSJ1# |
47144-34010 |
US $2.34 |
||
|
47124E
|
47124E
90387-08160 Collar, Clutch Pedal Shaft[01.2006 - 01.2010] GSJ1# |
90387-08160 |
from US $5.73 |
||
|
47125C
|
47125C
47144-60020 Collar(For Brake Pedal Bracket)[01.2006 - 01.2010] GSJ1# |
47144-60020 |
US $4.66 |
||
|
47130
|
47130
4710A-28010 Link Assy, Brake Pedal[01.2006 - 01.2010] GSJ1# NO.1 |
4710A-28010 |
US $5.82 |
||
|
47130
|
47130
47130-60021 Link Assy, Brake Pedal[01.2006 - 01.2010] GSJ1# NO.2 |
47130-60021 |
US $3.79 |
||
|
47130B
|
47130B
96160-00400 Ring, E(For Release Arm)[01.2006 - 01.2010] GSJ1# |
96160-00400 |
US $1.05 |
||
|
47264A
|
47264A
90240-06023 Pin(For Push Rod)[01.2006 - 07.2009] GSJ1# |
90240-06023 |
US $1.22 |
||
|
47264A
|
47264A
90240-06027 Pin(For Push Rod)[08.2009 - 11.2010] GSJ1# |
90240-06027 |
US $1.61 |
||
|
55106
|
55106
55106-35170 Support Sub-Assy, Brake Pedal[01.2006 - 01.2010] GSJ1# |
55106-35170 |
US $44.99 |
||
|
55179
|
55179
55179-35050 Reinforcement, Brake Pedal Support[01.2006 - 01.2010] GSJ1# |
55179-35050 |
US $11.07 |
||
|
9010508261
|
9010508261
90105-08261 Shaft, Clutch Pedal |
90105-08261 |
from US $0.89 |
||
|
9010508353
|
9010508353
90105-08353 Bolt(For Head To Camshaft Bearing Cap) |
90105-08353 |
from US $0.89 |
||
|
9011908895
|
9011908895
90119-08895 BOLT WWASHER |
90119-08895 |
US $1.79 |
||
|
9017908197
|
9017908197
90179-08197 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90179-08197 |
from US $0.89 |
||
|
9046807027
|
9046807027
90468-07027 Clip(For Push Rod Clevis Pin) |
90468-07027 |
from US $0.67 |
