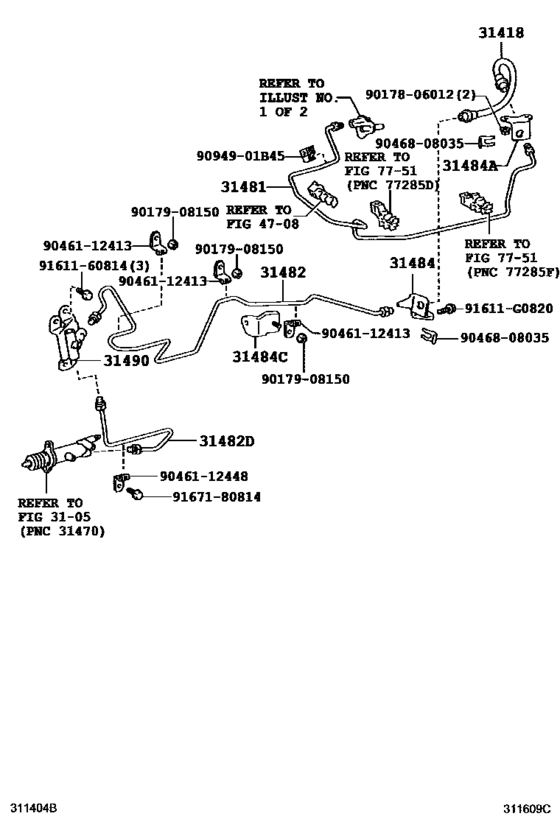

Clutch Pedal & Flexible Hose ([01.2006 - 08.2009] (0601-0908)MTM) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90947-02D38
Hose, Clutch
[01.2006 - 08.2009] GSJ15..MTM |
90947-02D38 |
— | ||
|
31418
|
31418
90947-02G14
Hose, Clutch
[08.2009 - 11.2010] GSJ15..MTM |
90947-02G14 |
— | ||
|
31481
|
31481
31481-60B00
Tube, Clutch Master Cylinder To Flexible Hose
[08.2009 - 11.2010] GSJ15..MTM |
31481-60B00 |
— | ||
|
31481
|
31481
31481-6A090 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [01.2006 - 08.2009] GSJ15..MTM |
31481-6A090 |
US $13.10 |
||
|
31482
|
31482
31482-60150 Tube, Clutch Release Cylinder To Flexible HoseCLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE [01.2006 - 08.2009] GSJ15..MTM |
31482-60150 |
US $11.36 |
||
|
31482
|
31482
31482-60240
Tube, Clutch Release Cylinder To Flexible Hose
[08.2009 - 11.2010] GSJ15..MTM |
31482-60240 |
— | ||
|
31482D
|
31482D
31482-60160
Tube, Clutch Release Cylinder To Accumulator
[01.2006 - 07.2009] GSJ15..MTM |
31482-60160 |
— | ||
| replacement | |||||
|
31482D
|
31482D
31482-60300
Tube, Clutch Release Cylinder To Accumulator
[01.2006 - 07.2009] GSJ15..MTM |
31482-60300 |
— | ||
|
31482D
|
31482D
31482-60300
Tube, Clutch Release Cylinder To Accumulator
[08.2009 - 11.2010] GSJ15..MTM |
31482-60300 |
— | ||
|
31484
|
31484
31484-60241 Bracket, Flexible Hose(For Clutch)FLEXIBLE HOSE(FOR CLUTCH) [01.2006 - 08.2009] GSJ15..MTM |
31484-60241 |
US $8.01 |
||
|
31484
|
31484
31484-60360
Bracket, Flexible Hose(For Clutch)
[08.2009 - 11.2010] GSJ15..MTM |
31484-60360 |
— | ||
|
31484A
|
31484A
31484-60231 Bracket, Flexible Hose, No.1(For Clutch)CLUTCH TUBE, NO.2 [01.2006 - 11.2010] GSJ15..MTM |
31484-60231 |
US $9.17 |
||
|
31484C
|
31484C
31484-60280 Bracket, Clutch Tube, No.1CLUTCH TUBE, NO.1 [01.2006 - 11.2010] GSJ15..MTM |
31484-60280 |
from US $5.24 |
||
|
31490
|
31490
31490-60151 Accumulator Assy, Clutch[01.2006 - 08.2009] GSJ15..MTM |
31490-60151 |
US $52.71 |
||
|
31490
|
31490
31490-60170
Accumulator Assy, Clutch
[08.2009 - 11.2010] GSJ15..MTM |
31490-60170 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9094901B45
|
9094901B45
90949-01B45 Clamp(For Clutch Master Cylinder Tube) |
90949-01B45 |
US $3.94 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9046112413
|
9046112413
90461-12413
New Genuine Part
|
90461-12413 |
— | ||
|
9046112448
|
9046112448
90461-12448
New Genuine Part
|
90461-12448 |
— | ||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.10 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
