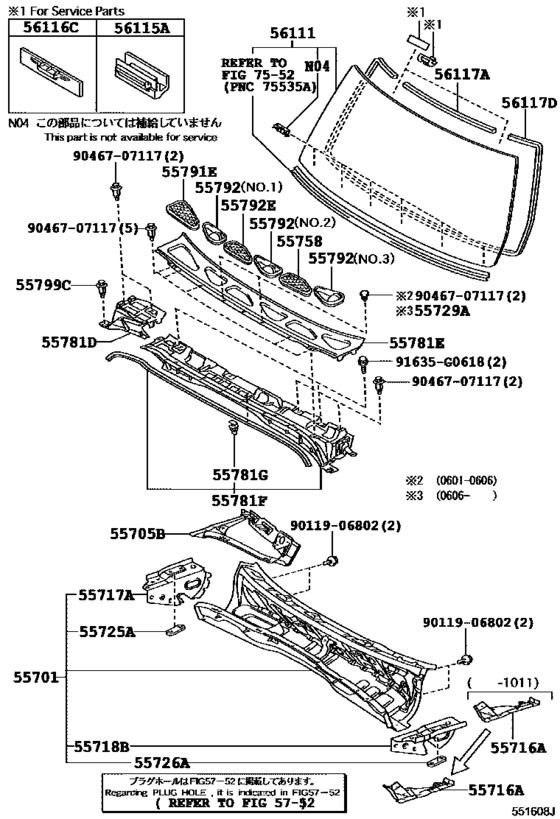

Cowl Panel & Windshield Glass ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55701
|
55701
55700-35720
Panel Sub-Assy, Cowl
[01.2006 - 11.2010] GSJ15..MTM |
55700-35720 |
— | ||
|
55701
|
55701
55700-35760
Panel Sub-Assy, Cowl
[11.2010 - 07.2014] GSJ15..MTM |
55700-35760 |
— | ||
|
55705B
|
55705B
55706-35010
Panel Sub-Assy, Cowl Top Side, Rh
[01.2006 - 11.2010] GSJ1# |
55706-35010 |
— | ||
|
55705B
|
55705B
55706-35040
Panel Sub-Assy, Cowl Top Side, Rh
[11.2010 - 07.2014] GSJ1# |
55706-35040 |
— | ||
|
55716A
|
55716A
55716-35030 Brace, Cowl Top To Apron, LhCOWL TOP TO APRON, LH [01.2006 - 11.2010] GSJ1# |
55716-35030 |
US $24.38 |
||
|
55716A
|
55716A
55716-35070
Brace, Cowl Top To Apron, Lh
[11.2010 - 07.2014] GSJ1# |
55716-35070 |
— | ||
|
55717A
|
55717A
55717-35040
Panel, Cowl Top Side, Inner Rh
[01.2006 - 11.2010] GSJ1# |
55717-35040 |
— | ||
|
55717A
|
55717A
55717-35060 Panel, Cowl Top Side, Inner Rh[11.2010 - 07.2014] GSJ1# |
55717-35060 |
US $25.19 |
||
|
55718B
|
55718B
55718-35040
Panel, Cowl Top Side, Inner Lh
[01.2006 - 11.2010] GSJ1# |
55718-35040 |
— | ||
|
55718B
|
55718B
55718-35060 Panel, Cowl Top Side, Inner Lh[11.2010 - 07.2014] GSJ1# |
55718-35060 |
US $25.19 |
||
|
55725A
|
55725A
55725-22010 Reinforcement, Hood Hinge Mounting, Rh[01.2006 - 11.2010] GSJ1# |
55725-22010 |
US $4.08 |
||
|
55726A
|
55726A
55725-22010 Reinforcement, Hood Hinge Mounting, Rh[01.2006 - 11.2010] GSJ1# |
55725-22010 |
US $4.08 |
||
|
55729A
|
55729A
55729-35020 Cover, Cowl Panel HoleCOWL PANEL HOLE [06.2006 - 11.2010] GSJ1# |
55729-35020 |
US $1.61 |
||
|
55758
|
55758
55796-35010 Cover, Heater Air DuctHEATER AIR DUCT [01.2006 - 11.2010] GSJ1# |
55796-35010 |
US $17.25 |
||
|
55781D
|
55781D
55783-35010
Louver, Cowl Top Ventilator, Rh
[01.2006 - 03.2010] GSJ1# |
55783-35010 |
— | ||
| replacement | |||||
|
55781D
|
55781D
55783-35011 Louver, Cowl Top Ventilator, Rh[01.2006 - 03.2010] GSJ1# |
55783-35011 |
from US $42.08 |
||
|
55781D
|
55781D
55783-35011 Louver, Cowl Top Ventilator, Rh[04.2010 - 11.2010] GSJ1# |
55783-35011 |
from US $42.08 |
||
|
55781E
|
55781E
55709-35010 Louver Sub-Assy, Cowl Top VentilatorCOWL TOP VENTILATOR [01.2006 - 11.2010] GSJ1# |
55709-35010 |
from US $107.83 |
||
|
55781F
|
55781F
55708-35090
Louver, Cowl Top Ventilator
[01.2006 - 03.2010] GSJ1# |
55708-35090 |
— | ||
| replacement | |||||
|
55781F
|
55781F
55708-35091 Louver, Cowl Top Ventilator[01.2006 - 03.2010] GSJ1# |
55708-35091 |
from US $131.04 |
||
|
55781F
|
55781F
55708-35091 Louver, Cowl Top Ventilator[04.2010 - 11.2010] GSJ1# |
55708-35091 |
from US $131.04 |
||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[01.2006 - 11.2010] GSJ1# |
90467-08108 |
from US $0.21 |
||
|
55791E
|
55791E
55791-35010 Cover, Heater Duct HoleHEATER DUCT HOLE [01.2006 - 11.2010] GSJ1# |
55791-35010 |
from US $18.17 |
||
|
55792
|
55792
55793-35010 Cover, Wiper Motor Service HoleWIPER MOTOR SERVICE HOLE [01.2006 - 11.2010] GSJ1# NO.1:REFER ILLUST. |
55793-35010 |
from US $10.46 |
||
|
55792
|
55792
55794-35010 Cover, Wiper Motor Service HoleWIPER MOTOR SERVICE HOLE [01.2006 - 11.2010] GSJ1# NO.2:REFER ILLUST. |
55794-35010 |
US $10.77 |
||
|
55792
|
55792
55795-35010
Cover, Wiper Motor Service Hole
[01.2006 - 07.2007] GSJ1# NO.3:REFER ILLUST. |
55795-35010 |
— | ||
| replacement | |||||
|
55792
|
55792
55795-35011 Cover, Wiper Motor Service Hole[01.2006 - 07.2007] GSJ1# NO.3:REFER ILLUST. |
55795-35011 |
US $9.46 |
||
|
55792
|
55792
55795-35011 Cover, Wiper Motor Service Hole[08.2007 - 11.2010] GSJ1# NO.3:REFER ILLUST. |
55795-35011 |
US $9.46 |
||
|
55792E
|
55792E
55792-35010 Cover, Heater Air Duct Hole, No.2HEATER AIR DUCT HOLE, NO.2 [01.2006 - 11.2010] GSJ1# |
55792-35010 |
from US $17.59 |
||
|
55799C
|
55799C
90467-07066-22 Clip, Cowl Top Ventilator Louver[01.2006 - 11.2010] GSJ1# BLACK |
90467-07066-22 |
from US $0.82 |
||
|
56111
|
56111
56101-35070
Glass, Windshield
[01.2006 - 04.2009] GSJ1# *LAM,T=4.56,GREEN |
56101-35070 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-35072 Glass, Windshield[01.2006 - 04.2009] GSJ1# *LAM,T=4.56,GREEN |
56101-35072 |
US $515.41 |
||
|
56111
|
56111
56101-35071
Glass, Windshield
[05.2009 - 07.2010] GSJ1# *LAM,T=4.56,GREEN |
56101-35071 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-35072 Glass, Windshield[05.2009 - 07.2010] GSJ1# *LAM,T=4.56,GREEN |
56101-35072 |
US $515.41 |
||
|
56111
|
56111
56101-35072 Glass, Windshield[08.2010 - 11.2010] GSJ1# *LAM,T=4.56,GREEN |
56101-35072 |
US $515.41 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[01.2006 - 11.2010] GSJ1# |
56115-30100 |
from US $1.69 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[01.2006 - 11.2010] GSJ1# |
56116-22050 |
from US $1.41 |
||
|
56117A
|
56117A
56117-35140 Dam, Window Glass AdhesiveWINDOW GLASS ADHESIVE [01.2006 - 11.2010] GSJ1# L=705 |
56117-35140 |
US $5.23 |
||
|
56117D
|
56117D
56117-35070 Dam, Window Glass AdhesiveWINDSHIELD GLASS ADHESIVE [01.2006 - 11.2010] GSJ1# *D,L=2910 |
56117-35070 |
US $15.03 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.87 |
||
