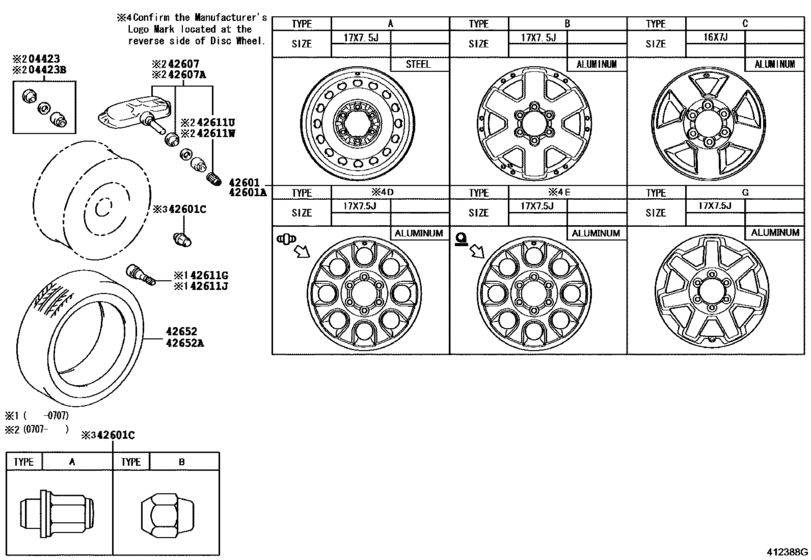

Disc Wheel & Wheel Cap ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33030
Fitting Kit, Tire Pressure Monitor Or Balancer Valve
[07.2007 - 11.2010] GSJ1# |
04423-33030 |
— | ||
| replacement | |||||
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[07.2007 - 11.2010] GSJ1# |
04423-33060 |
from US $4.35 |
||
|
04423B
|
04423B
04423-33030
Fitting Kit, Tire Pressure Monitor Or Balancer Valve
[07.2007 - 11.2010] GSJ1# |
04423-33030 |
— | ||
| replacement | |||||
|
04423B
|
04423B
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[07.2007 - 11.2010] GSJ1# |
04423-33060 |
from US $4.35 |
||
|
42601
|
42601
42611-35330 Wheel, DiscDISC [01.2006 - 11.2010] GSJ1# 17X7.5J,TYPE A:REFER ILLUST. |
42611-35330 |
US $222.40 |
||
|
42601
|
42601
42611-35340 Wheel, DiscDISC [01.2006 - 02.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35340 |
US $598.42 |
||
| replacement | |||||
|
42601
|
42601
42611-35480 Wheel, DiscDISC [01.2006 - 02.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35480 |
US $598.42 |
||
|
42601
|
42601
42611-35370 Wheel, DiscDISC [07.2007 - 11.2010] GSJ15 16X7J,TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS),TYPE C:REFER ILLUST.; GSJ15..ATM 16X7J,MEXICO SPEC&TIRE & DISC WHEEL-P265/75R16 ALUMINUM,TYPE C:REFER ILLUST. |
42611-35370 |
US $548.91 |
||
|
42601
|
42601
42611-35480 Wheel, DiscDISC [03.2010 - 11.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35480 |
US $598.42 |
||
|
42601
|
42601
42611-35490 Wheel, Disc[11.2010 - 08.2013] GSJ1#..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE D:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE D:REFER ILLUST. |
42611-35490 |
US $598.42 |
||
|
42601
|
42601
42611-35500 Wheel, Disc[11.2010 - 08.2013] GSJ1#..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE E:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE E:REFER ILLUST. |
42611-35500 |
US $598.42 |
||
|
42601
|
42601
42611-35540 Wheel, Disc[08.2013 - 07.2014] GSJ15..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE G:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE G:REFER ILLUST. |
42611-35540 |
US $565.54 |
||
|
42601A
|
42601A
42611-35330 Wheel, DiscDISC [01.2006 - 11.2010] GSJ1# 17X7.5J,TYPE A:REFER ILLUST. |
42611-35330 |
US $222.40 |
||
|
42601A
|
42601A
42611-35340 Wheel, DiscDISC [01.2006 - 02.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35340 |
US $598.42 |
||
| replacement | |||||
|
42601A
|
42601A
42611-35480 Wheel, DiscDISC [01.2006 - 02.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35480 |
US $598.42 |
||
|
42601A
|
42601A
42611-35370 Wheel, DiscDISC [07.2007 - 11.2010] GSJ15 16X7J,TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS),TYPE C:REFER ILLUST.; GSJ15..ATM 16X7J,MEXICO SPEC&TIRE & DISC WHEEL-P265/75R16 ALUMINUM,TYPE C:REFER ILLUST. |
42611-35370 |
US $548.91 |
||
|
42601A
|
42601A
42611-35480 Wheel, DiscDISC [03.2010 - 11.2010] GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE B:REFER ILLUST. |
42611-35480 |
US $598.42 |
||
|
42601A
|
42601A
42611-35490 Wheel, Disc[11.2010 - 08.2013] GSJ1#..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE D:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE D:REFER ILLUST. |
42611-35490 |
US $598.42 |
||
|
42601A
|
42601A
42611-35500 Wheel, Disc[11.2010 - 08.2013] GSJ1#..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE E:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE E:REFER ILLUST. |
42611-35500 |
US $598.42 |
||
|
42601A
|
42601A
42611-35540 Wheel, Disc[08.2013 - 07.2014] GSJ15..ATM 17X7.5J,MEXICO SPEC&TIRE & DISC WHEEL-P265/70R17 ALUMINUM(MEXICO SPEC),TYPE G:REFE R ILLUST.; GSJ1# 17X7.5J,TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE G:REFER ILLUST. |
42611-35540 |
US $565.54 |
||
|
42601C
|
42601C
90942-01058 Wheel Nut[01.2006 - 11.2010] GSJ1# TIRE & DISC WHEEL-P265/70R17 ALUMINUM,TYPE A:REFER ILLUST. |
90942-01058 |
from US $5.23 |
||
|
42601C
|
42601C
90942-01104 Nut, Hub (For Axle)[01.2006 - 11.2010] GSJ1# TYPE B:REFER ILLUST. |
90942-01104 |
from US $3.86 |
||
|
42607
|
42607
42607-33011
Valve Sub-Assy, Tire Pressure Monitor
[07.2007 - 11.2010] GSJ1#; GSJ10 TIRE & DISC WHEEL-P265/70R17 ALUMINUM |
42607-33011 |
— | ||
|
42607A
|
42607A
42607-33011
Valve Sub-Assy, Tire Pressure Monitor
[07.2007 - 11.2010] GSJ1# |
42607-33011 |
— | ||
|
42611G
|
42611G
90942-05009 Valve (For Tubeless Tire)[01.2006 - 07.2007] GSJ1# |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611G
|
42611G
90080-94031 Valve (For Tubeless Tire)[01.2006 - 07.2007] GSJ1# |
90080-94031 |
US $1.46 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[01.2006 - 07.2007] GSJ1# |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[01.2006 - 07.2007] GSJ1# |
90080-94031 |
US $1.46 |
||
|
42611U
|
42611U
90942-05039 Cap, Tire ValveTIRE VALVE [07.2007 - 11.2010] GSJ1#; GSJ10 TIRE & DISC WHEEL-P265/70R17 ALUMINUM |
90942-05039 |
US $1.61 |
||
|
42611W
|
42611W
90942-05039 Cap, Tire ValveTIRE VALVE [07.2007 - 11.2010] GSJ1# |
90942-05039 |
US $1.61 |
||
|
42652
|
42652
42652-35A20
Tire
[07.2007 - 11.2010] GSJ15 P265/75R16,TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS) |
42652-35A20 |
— | ||
|
42652
|
42652
42652-35A40
Tire
[01.2006 - 11.2010] GSJ15 P265/70R17,*D/L |
42652-35A40 |
— | ||
|
42652
|
42652
42652-35A50
Tire
[01.2006 - 07.2007] GSJ1# P265/70R17,*B/S |
42652-35A50 |
— | ||
| replacement | |||||
|
42652
|
42652
42652-35A51
Tire
[01.2006 - 07.2007] GSJ1# P265/70R17,*B/S |
42652-35A51 |
— | ||
|
42652
|
42652
42652-35A51
Tire
[07.2007 - 11.2010] GSJ1# P265/70R17,*B/S |
42652-35A51 |
— | ||
|
42652A
|
42652A
42652-35A20
Tire
[07.2007 - 11.2010] GSJ15 P265/75R16,TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS) |
42652-35A20 |
— | ||
|
42652A
|
42652A
42652-35A40
Tire
[01.2006 - 11.2010] GSJ15 P265/70R17,*D/L |
42652-35A40 |
— | ||
|
42652A
|
42652A
42652-35A50
Tire
[01.2006 - 07.2007] GSJ1# P265/70R17,*B/S |
42652-35A50 |
— | ||
| replacement | |||||
|
42652A
|
42652A
42652-35A51
Tire
[01.2006 - 07.2007] GSJ1# P265/70R17,*B/S |
42652-35A51 |
— | ||
|
42652A
|
42652A
42652-35A51
Tire
[07.2007 - 11.2010] GSJ1# P265/70R17,*B/S |
42652-35A51 |
— | ||
