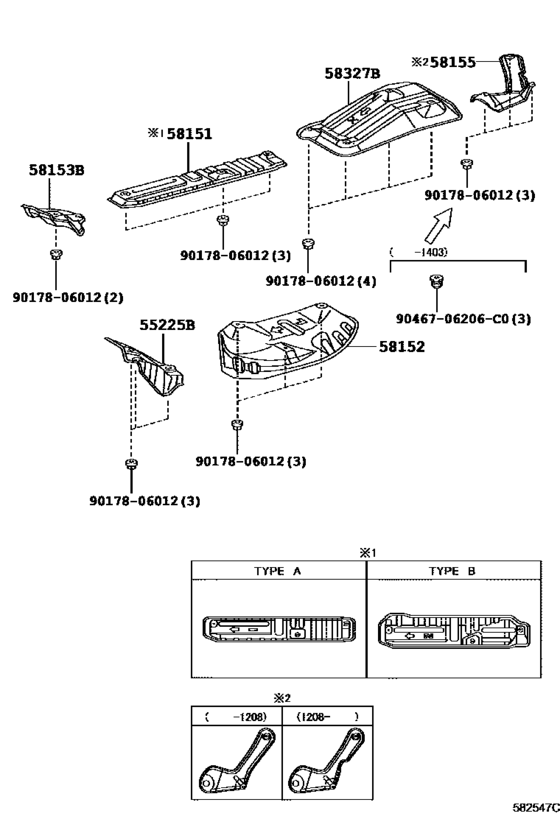

Floor Insulator ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55225B
|
55225B
55225-35170 Insulator, Dash Panel Heat[01.2006 - 11.2010] GSJ1# |
55225-35170 |
US $6.84 |
||
|
58151
|
58151
58151-35120 Insulator, Front Floor Heat, No.1[01.2006 - 11.2010] GSJ1# TYPE A:REFER ILLUST. |
58151-35120 |
US $29.12 |
||
|
58151
|
58151
58151-60080 Insulator, Front Floor Heat, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER,TYPE B:REFER ILLUST.; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER,TYPE B:REFER ILLUST. |
58151-60080 |
US $61.85 |
||
|
58152
|
58152
58152-35010 Insulator Sub-Assy, Center Floor Heat, No.2[01.2006 - 11.2010] GSJ1# |
58152-35010 |
US $30.14 |
||
| replacement | |||||
|
58152
|
58152
58152-35020
Insulator Sub-Assy, Center Floor Heat, No.2
[01.2006 - 11.2010] GSJ1# |
58152-35020 |
— | ||
| replacement | |||||
|
58152
|
58152
58152-35030 INSULATOR FLOOR[01.2006 - 11.2010] GSJ1# |
58152-35030 |
US $24.29 |
||
|
58152
|
58152
58152-35020
Insulator Sub-Assy, Center Floor Heat, No.2
[08.2012 - 07.2014] GSJ1# |
58152-35020 |
— | ||
| replacement | |||||
|
58152
|
58152
58152-35030 INSULATOR FLOOR[08.2012 - 07.2014] GSJ1# |
58152-35030 |
US $24.29 |
||
|
58153B
|
58153B
58153-35130
Insulator, Front Floor Heat, No.2
[01.2006 - 11.2010] GSJ1# |
58153-35130 |
— | ||
| replacement | |||||
|
58153B
|
58153B
58153-60130 INSULATOR FLOOR[01.2006 - 11.2010] GSJ1# |
58153-60130 |
US $7.16 |
||
|
58155
|
58155
58155-35020
Insulator, Front Floor Heat, No.3
[01.2006 - 11.2010] GSJ1# |
58155-35020 |
— | ||
| replacements | |||||
|
58155
|
58155
58155-60100
Insulator, Front Floor Heat, No.3
[01.2006 - 11.2010] GSJ1# |
58155-60100 |
— | ||
|
58155
|
58155
90178-06012 NUT FLANGE[01.2006 - 11.2010] GSJ1# |
90178-06012 |
from US $0.67 |
||
|
58155
|
58155
58155-35040 Insulator, Front Floor Heat, No.3[08.2012 - 03.2014] GSJ1# |
58155-35040 |
US $23.30 |
||
| replacements | |||||
|
58155
|
58155
58155-35050 Insulator, Front Floor Heat, No.3[08.2012 - 03.2014] GSJ1# |
58155-35050 |
US $27.78 |
||
|
58155
|
58155
90178-06012 NUT FLANGE[08.2012 - 03.2014] GSJ1# |
90178-06012 |
from US $0.67 |
||
|
58155
|
58155
58155-35050 Insulator, Front Floor Heat, No.3[03.2014 - 07.2014] GSJ1# |
58155-35050 |
US $27.78 |
||
|
58327B
|
58327B
58327-35060
Insulator, Main Muffler Heat
[01.2006 - 05.2007] GSJ1# |
58327-35060 |
— | ||
| replacement | |||||
|
58327B
|
58327B
58327-35062
Insulator, Main Muffler Heat
[01.2006 - 05.2007] GSJ1# |
58327-35062 |
— | ||
|
58327B
|
58327B
58327-35061 Insulator, Main Muffler Heat[06.2007 - 11.2010] GSJ1# |
58327-35061 |
US $40.04 |
||
| replacement | |||||
|
58327B
|
58327B
58327-35062
Insulator, Main Muffler Heat
[06.2007 - 11.2010] GSJ1# |
58327-35062 |
— | ||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
9046706206C0
|
9046706206C0
90467-06206-C0 Clip, Rear Bumper Side |
90467-06206-C0 |
from US $0.80 |
||
