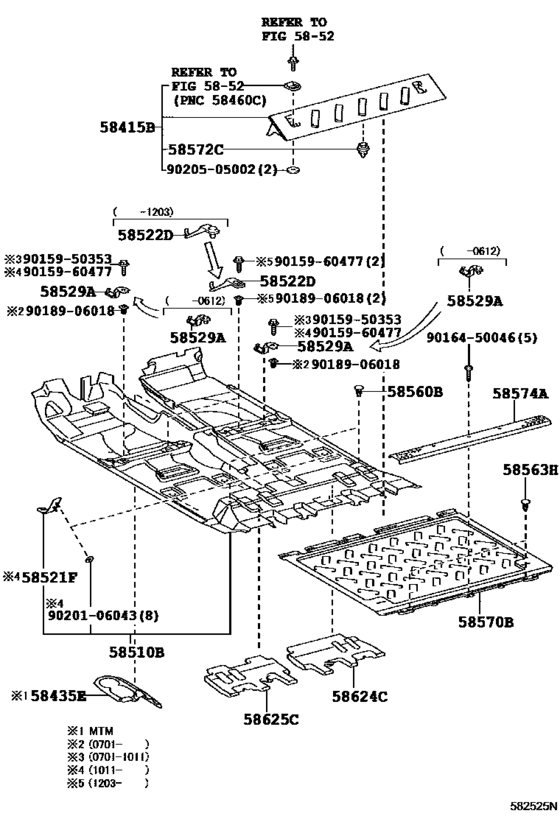

Floor Mat & Silencer Pad ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58415B
|
58415B
58401-35030-B0
Board, Rear Floor, No.1
[01.2006 - 07.2009] GSJ1# DK.GRAY,TRIM1# |
58401-35030-B0 |
— | ||
| replacement | |||||
|
58415B
|
58415B
58401-35031-B0 Board, Rear Floor, No.1[01.2006 - 07.2009] GSJ1# DK.GRAY,TRIM1# |
58401-35031-B0 |
from US $134.53 |
||
|
58415B
|
58415B
58401-35031-B0 Board, Rear Floor, No.1[08.2009 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
58401-35031-B0 |
from US $134.53 |
||
|
58435E
|
58435E
58435-35010
Silencer, Front Floor, Center
[01.2006 - 11.2010] GSJ15..MTM |
58435-35010 |
— | ||
|
58510B
|
58510B
58510-3G810-B0
Mat, Front Floor, Front
[01.2006 - 01.2007] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G810-B0 |
— | ||
| replacement | |||||
|
58510B
|
58510B
58510-3G813-B0
Mat, Front Floor, Front
[01.2006 - 01.2007] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G813-B0 |
— | ||
|
58510B
|
58510B
58510-3G811-B0
Mat, Front Floor, Front
[02.2007 - 10.2007] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G811-B0 |
— | ||
| replacement | |||||
|
58510B
|
58510B
58510-3G813-B0
Mat, Front Floor, Front
[02.2007 - 10.2007] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G813-B0 |
— | ||
|
58510B
|
58510B
58510-3G812-B0
Mat, Front Floor, Front
[11.2007 - 11.2009] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G812-B0 |
— | ||
| replacement | |||||
|
58510B
|
58510B
58510-3G813-B0
Mat, Front Floor, Front
[11.2007 - 11.2009] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G813-B0 |
— | ||
|
58510B
|
58510B
58510-3G813-B0
Mat, Front Floor, Front
[11.2009 - 11.2010] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G813-B0 |
— | ||
|
58510B
|
58510B
58510-3G814-B0
Mat, Front Floor, Front
[11.2010 - 03.2012] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G814-B0 |
— | ||
|
58510B
|
58510B
58510-3G815-B0
Mat, Front Floor, Front
[03.2012 - 07.2014] GSJ15..MTM DK.GRAY,TRIM1# |
58510-3G815-B0 |
— | ||
|
58521F
|
58521F
51965-35090 Hook, Floor Carpet[11.2010 - 07.2014] GSJ1# |
51965-35090 |
from US $5.91 |
||
|
58522D
|
58522D
58521-35050 Hook, Floor Carpet, No.2FLOOR CARPET [01.2006 - 11.2010] GSJ1# |
58521-35050 |
US $13.44 |
||
|
58522D
|
58522D
58522-35020
Hook, Floor Carpet, No.2
[11.2010 - 12.2010] GSJ1# |
58522-35020 |
— | ||
| replacements | |||||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[11.2010 - 12.2010] GSJ1# |
58522-35022 |
from US $7.94 |
||
|
58522D
|
58522D
90159-60477 SCREW, WWASHER[11.2010 - 12.2010] GSJ1# |
90159-60477 |
from US $0.68 |
||
|
58522D
|
58522D
90189-06018 GROMMET[11.2010 - 12.2010] GSJ1# |
90189-06018 |
from US $0.97 |
||
|
58522D
|
58522D
58522-35021 Hook, Floor Carpet, No.2[12.2010 - 03.2012] GSJ1# |
58522-35021 |
US $8.59 |
||
| replacements | |||||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[12.2010 - 03.2012] GSJ1# |
58522-35022 |
from US $7.94 |
||
|
58522D
|
58522D
90159-60477 SCREW, WWASHER[12.2010 - 03.2012] GSJ1# |
90159-60477 |
from US $0.68 |
||
|
58522D
|
58522D
90189-06018 GROMMET[12.2010 - 03.2012] GSJ1# |
90189-06018 |
from US $0.97 |
||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[03.2012 - 07.2014] GSJ1# |
58522-35022 |
from US $7.94 |
||
|
58529A
|
58529A
58521-35060
Hook, Floor Carpet, No.3
[01.2006 - 12.2006] GSJ1# |
58521-35060 |
— | ||
| replacement | |||||
|
58529A
|
58529A
58521-35061 Hook, Floor Carpet, No.3[01.2006 - 12.2006] GSJ1# |
58521-35061 |
US $10.60 |
||
|
58529A
|
58529A
58521-35061 Hook, Floor Carpet, No.3[01.2007 - 11.2010] GSJ1# |
58521-35061 |
US $10.60 |
||
|
58529A
|
58529A
58529-35060
Hook, Floor Carpet, No.3
[11.2010 - 12.2010] GSJ1# |
58529-35060 |
— | ||
| replacement | |||||
|
58529A
|
58529A
58529-35061 Hook, Floor Carpet, No.3[11.2010 - 12.2010] GSJ1# |
58529-35061 |
US $14.34 |
||
|
58529A
|
58529A
58529-35061 Hook, Floor Carpet, No.3[12.2010 - 07.2014] GSJ1# |
58529-35061 |
US $14.34 |
||
|
58560B
|
58560B
90467-05164-B2 Clip(For Front Floor Carpet)[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
90467-05164-B2 |
from US $0.76 |
||
|
58563H
|
58563H
90467-05164-B2 Clip(For Front Floor Carpet)[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
90467-05164-B2 |
from US $0.76 |
||
|
58570B
|
58570B
58570-35130-B0
Mat Assy, Rear Floor
[01.2006 - 07.2009] GSJ1# DK.GRAY,TRIM1# |
58570-35130-B0 |
— | ||
| replacement | |||||
|
58570B
|
58570B
58570-35140-B0 Mat Assy, Rear Floor[01.2006 - 07.2009] GSJ1# DK.GRAY,TRIM1# |
58570-35140-B0 |
US $242.86 |
||
|
58570B
|
58570B
58570-35140-B0 Mat Assy, Rear Floor[08.2009 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
58570-35140-B0 |
US $242.86 |
||
|
58572C
|
58572C
52425-35020 Clip, Rear Floor Mat Set[01.2006 - 11.2010] GSJ1# |
52425-35020 |
US $3.23 |
||
|
58574A
|
58574A
58574-35020-B0
Plate, Rear Floor Mat Support, Rear
[01.2006 - 07.2007] GSJ1# DK.GRAY,TRIM1# |
58574-35020-B0 |
— | ||
| replacement | |||||
|
58574A
|
58574A
58574-35022-B0 Plate, Rear Floor Mat Support, Rear[01.2006 - 07.2007] GSJ1# DK.GRAY,TRIM1# |
58574-35022-B0 |
from US $49.10 |
||
|
58574A
|
58574A
58574-35021-B0
Plate, Rear Floor Mat Support, Rear
[08.2007 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
58574-35021-B0 |
— | ||
| replacement | |||||
|
58574A
|
58574A
58574-35022-B0 Plate, Rear Floor Mat Support, Rear[08.2007 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
58574-35022-B0 |
from US $49.10 |
||
|
58574A
|
58574A
58574-35022-B0 Plate, Rear Floor Mat Support, Rear[07.2013 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
58574-35022-B0 |
from US $49.10 |
||
|
58624C
|
58624C
58624-35020
Pad, Center Floor Silencer, Rh
[01.2006 - 06.2007] GSJ1# |
58624-35020 |
— | ||
| replacement | |||||
|
58624C
|
58624C
58624-35021 Pad, Center Floor Silencer, Rh[01.2006 - 06.2007] GSJ1# |
58624-35021 |
US $52.56 |
||
|
58624C
|
58624C
58624-35021 Pad, Center Floor Silencer, Rh[07.2007 - 11.2010] GSJ1# |
58624-35021 |
US $52.56 |
||
|
58625C
|
58625C
58625-35020
Pad, Center Floor Silencer, Lh
[01.2006 - 06.2007] GSJ1# |
58625-35020 |
— | ||
| replacement | |||||
|
58625C
|
58625C
58625-35021 Pad, Center Floor Silencer, Lh[01.2006 - 06.2007] GSJ1# |
58625-35021 |
US $51.25 |
||
|
58625C
|
58625C
58625-35021 Pad, Center Floor Silencer, Lh[07.2007 - 11.2010] GSJ1# |
58625-35021 |
US $51.25 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.65 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9016450046
|
9016450046
90164-50046 SCREW, BINDING |
90164-50046 |
from US $0.78 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.97 |
||
|
9020106043
|
9020106043
90201-06043 Washer, Plate(For Repair Actuator Set) |
90201-06043 |
US $1.08 |
||
|
9020505002
|
9020505002
90205-05002 New Genuine Part |
90205-05002 |
US $0.79 |
||
