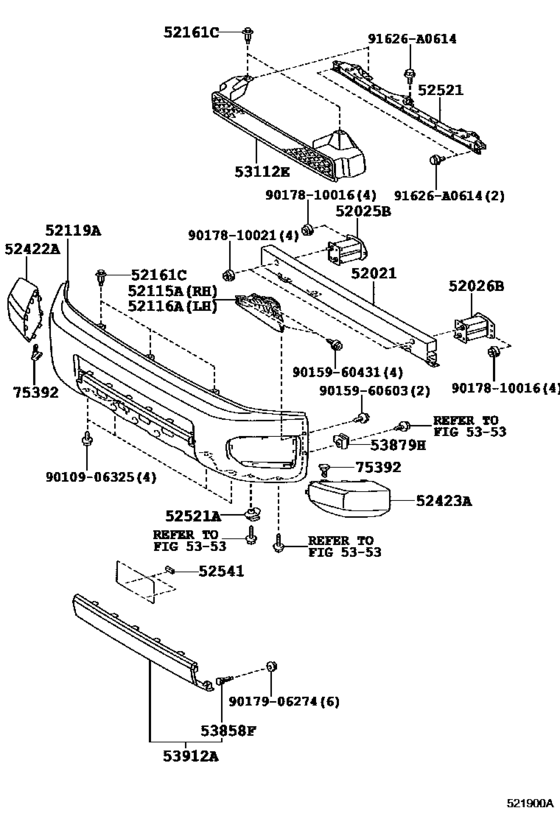

Front Bumper & Bumper Stay ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-35090 Reinforcement Sub-Assy, Front BumperFRONT BUMPER [01.2006 - 11.2010] GSJ1#; GSJ15..ATM MEXICO SPEC |
52021-35090 |
US $214.03 |
||
|
52025B
|
52025B
52025-60010
Extension Sub-Assy, Front Bumper, No.2 Rh
[01.2006 - 11.2010] GSJ1# |
52025-60010 |
— | ||
| replacement | |||||
|
52025B
|
52025B
52025-60011 Extension Sub-Assy, Front Bumper, No.2 Rh[01.2006 - 11.2010] GSJ1# |
52025-60011 |
from US $46 |
||
|
52025B
|
52025B
52025-60011 Extension Sub-Assy, Front Bumper, No.2 Rh[08.2013 - 07.2014] GSJ1# |
52025-60011 |
from US $46 |
||
|
52026B
|
52026B
52026-60010 Extension Sub-Assy, Front Bumper, No.2 Lh[01.2006 - 11.2010] GSJ1# |
52026-60010 |
US $41.06 |
||
| replacement | |||||
|
52026B
|
52026B
52026-60011 Extension Sub-Assy, Front Bumper, No.2 Lh[01.2006 - 11.2010] GSJ1# |
52026-60011 |
from US $45.98 |
||
|
52026B
|
52026B
52026-60011 Extension Sub-Assy, Front Bumper, No.2 Lh[08.2013 - 07.2014] GSJ1# |
52026-60011 |
from US $45.98 |
||
|
52115A
|
52115A
52115-35120 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [01.2006 - 11.2010] GSJ1# |
52115-35120 |
from US $20.69 |
||
|
52116A
|
52116A
52116-35110 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [01.2006 - 11.2010] GSJ1# |
52116-35110 |
from US $20.52 |
||
|
52119A
|
52119A
52119-35070
Cover, Front Bumper
[01.2006 - 05.2010] GSJ1# |
52119-35070 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-35071 Cover, Front Bumper[01.2006 - 05.2010] GSJ1# |
52119-35071 |
from US $191.37 |
||
|
52119A
|
52119A
52119-35071 Cover, Front Bumper[06.2010 - 11.2010] GSJ1# |
52119-35071 |
from US $191.37 |
||
|
52161C
|
52161C
52161-16010 Clip[01.2006 - 11.2010] GSJ1# |
52161-16010 |
from US $1.69 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[01.2006 - 11.2010] GSJ1# |
52161-0K040 |
from US $1.46 |
||
|
52161C
|
52161C
52161-02020 Clip[01.2006 - 11.2010] GSJ1# |
52161-02020 |
US $5.27 |
||
|
52422A
|
52422A
52422-35020
Pad, Front Bumper, Rh
[01.2006 - 12.2006] GSJ1# METALLIC |
52422-35020 |
— | ||
| replacement | |||||
|
52422A
|
52422A
52422-35030 Pad, Front Bumper, RhFRONT BUMPER, RH [01.2006 - 12.2006] GSJ1# METALLIC |
52422-35030 |
from US $71.31 |
||
|
52422A
|
52422A
52422-35030 Pad, Front Bumper, RhFRONT BUMPER, RH [01.2007 - 11.2010] GSJ1# SILVER METALLIC |
52422-35030 |
from US $71.31 |
||
|
52422A
|
52422A
52422-35040 Pad, Front Bumper, RhFRONT BUMPER, RH [01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
52422-35040 |
US $96.10 |
||
| replacement | |||||
|
52422A
|
52422A
52422-35060 Pad, Front Bumper, Rh[01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
52422-35060 |
from US $81.13 |
||
|
52422A
|
52422A
52422-35050 Pad, Front Bumper, RhFRONT BUMPER, RH [09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
52422-35050 |
US $80.08 |
||
| replacement | |||||
|
52422A
|
52422A
52422-35060 Pad, Front Bumper, Rh[09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
52422-35060 |
from US $81.13 |
||
|
52422A
|
52422A
52422-35060 Pad, Front Bumper, Rh[01.2011 - 07.2011] GSJ15 SPECIAL EDITION |
52422-35060 |
from US $81.13 |
||
|
52423A
|
52423A
52423-35010 Pad, Front Bumper, LhFRONT BUMPER, LH [01.2006 - 01.2007] GSJ1# METALLIC |
52423-35010 |
US $99.01 |
||
| replacement | |||||
|
52423A
|
52423A
52423-35020 Pad, Front Bumper, LhFRONT BUMPER, LH [01.2006 - 01.2007] GSJ1# METALLIC |
52423-35020 |
from US $69.58 |
||
|
52423A
|
52423A
52423-35020 Pad, Front Bumper, LhFRONT BUMPER, LH [01.2007 - 11.2010] GSJ1# SILVER METALLIC |
52423-35020 |
from US $69.58 |
||
|
52423A
|
52423A
52423-35030 Pad, Front Bumper, LhFRONT BUMPER, LH [01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
52423-35030 |
US $96.10 |
||
| replacement | |||||
|
52423A
|
52423A
52423-35050 Pad, Front Bumper, Lh[01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
52423-35050 |
from US $81.13 |
||
|
52423A
|
52423A
52423-35040 Pad, Front Bumper, LhFRONT BUMPER, LH [09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
52423-35040 |
US $80.08 |
||
| replacement | |||||
|
52423A
|
52423A
52423-35050 Pad, Front Bumper, Lh[09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
52423-35050 |
from US $81.13 |
||
|
52423A
|
52423A
52423-35050 Pad, Front Bumper, Lh[01.2011 - 07.2011] GSJ15 SPECIAL EDITION |
52423-35050 |
from US $81.13 |
||
|
52521
|
52521
52521-35030 Retainer, Front Bumper, Upper CenterFRONT BUMPER, UPPER CENTER [01.2006 - 11.2010] GSJ1# |
52521-35030 |
from US $44.25 |
||
|
52521A
|
52521A
90467-05138 Clip(For Front Bumper Retainer)[01.2006 - 11.2010] GSJ1# |
90467-05138 |
from US $2 |
||
|
52541
|
52541
52541-35030 Protector, Front BumperFRONT BUMPER [05.2006 - 11.2010] GSJ1# |
52541-35030 |
US $8.24 |
||
|
53112E
|
53112E
53112-35030 Grille, Radiator, Lower No.1RADIATOR, LOWER NO.1 [01.2006 - 11.2010] GSJ1# |
53112-35030 |
from US $80.69 |
||
|
53858F
|
53858F
53858-60050 Bolt, Wheel Opening[01.2006 - 11.2010] GSJ1# |
53858-60050 |
from US $2.11 |
||
|
53879H
|
53879H
53879-58010 Retainer, Front Fender Liner[01.2006 - 11.2010] GSJ1# |
53879-58010 |
from US $3.15 |
||
|
53912A
|
53912A
53901-35170 Panel, Front Valance, LowerFRONT VALANCE, LOWER [01.2006 - 01.2007] GSJ1# METALLIC |
53901-35170 |
US $208.21 |
||
| replacement | |||||
|
53912A
|
53912A
53901-35180 Panel, Front Valance, LowerFRONT VALANCE, LOWER [01.2006 - 01.2007] GSJ1# METALLIC |
53901-35180 |
from US $97.05 |
||
|
53912A
|
53912A
53901-35180 Panel, Front Valance, LowerFRONT VALANCE, LOWER [01.2007 - 11.2010] GSJ1# SILVER METALLIC |
53901-35180 |
from US $97.05 |
||
|
53912A
|
53912A
53901-35190 Panel, Front Valance, LowerFRONT VALANCE, LOWER [01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
53901-35190 |
US $221.31 |
||
| replacement | |||||
|
53912A
|
53912A
53901-35230 Panel, Front Valance, Lower[01.2008 - 04.2008] GSJ15 SPECIAL EDITION(USA/HAWAII/P.RICO) |
53901-35230 |
from US $103.04 |
||
|
53912A
|
53912A
53901-35220 Panel, Front Valance, LowerFRONT VALANCE, LOWER [09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
53901-35220 |
US $224.22 |
||
| replacement | |||||
|
53912A
|
53912A
53901-35230 Panel, Front Valance, Lower[09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
53901-35230 |
from US $103.04 |
||
|
53912A
|
53912A
53901-35230 Panel, Front Valance, Lower[01.2011 - 07.2011] GSJ15 SPECIAL EDITION |
53901-35230 |
from US $103.04 |
||
|
75392
|
75392
75392-35220 Retainer, Rear Bumper[01.2006 - 11.2010] GSJ1# |
75392-35220 |
from US $1.29 |
||
|
91626A0614
|
91626A0614
91626-A0614 BOLT WWASHER |
91626-A0614 |
US $1.97 |
||
|
9010906325
|
9010906325
90109-06325 BOLT |
90109-06325 |
from US $0.76 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017810016
|
9017810016
90178-10016 NUT FLANGE |
90178-10016 |
from US $0.87 |
||
|
9017810021
|
9017810021
90178-10021 NUT FLANGE |
90178-10021 |
from US $0.89 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
