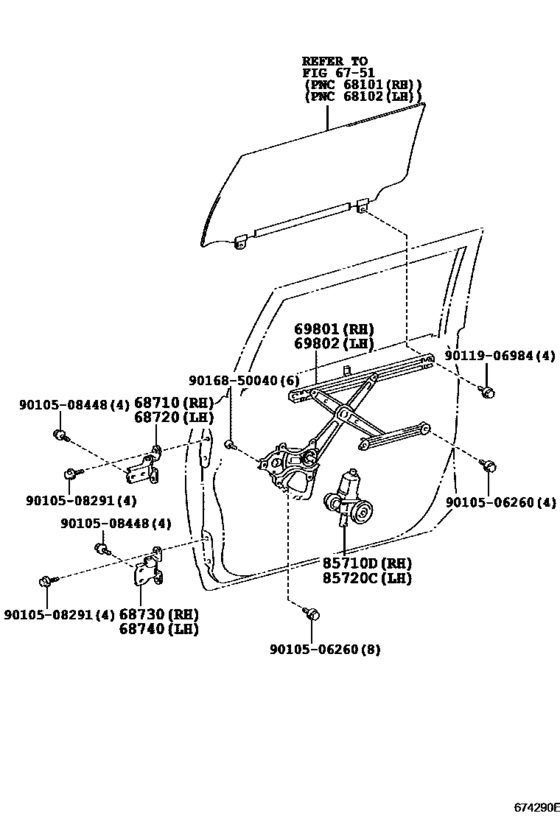

Front Door Window Regulator & Hinge ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12150
Hinge Assy, Front Door, Upper Rh
[01.2006 - 09.2006] GSJ1# |
68710-12150 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[01.2006 - 09.2006] GSJ1# |
68710-12151 |
from US $29.91 |
||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[10.2006 - 11.2010] GSJ1# |
68710-12151 |
from US $29.91 |
||
|
68720
|
68720
68720-12150
Hinge Assy, Front Door, Upper Lh
[01.2006 - 09.2006] GSJ1# |
68720-12150 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[01.2006 - 09.2006] GSJ1# |
68720-12151 |
from US $30.97 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[10.2006 - 11.2010] GSJ1# |
68720-12151 |
from US $30.97 |
||
|
68730
|
68730
68730-33020 Hinge Assy, Front Door, Lower Rh[01.2006 - 09.2006] GSJ1# |
68730-33020 |
US $49.36 |
||
| replacement | |||||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[01.2006 - 09.2006] GSJ1# |
68730-33021 |
from US $36.50 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[10.2006 - 11.2010] GSJ1# |
68730-33021 |
from US $36.50 |
||
|
68740
|
68740
68740-33020
Hinge Assy, Front Door, Lower Lh
[01.2006 - 09.2006] GSJ1# |
68740-33020 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[01.2006 - 09.2006] GSJ1# |
68740-33021 |
from US $35 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[10.2006 - 11.2010] GSJ1# |
68740-33021 |
from US $35 |
||
|
69801
|
69801
69801-58010 Regulator Sub-Assy, Front Door Window, Rh[01.2006 - 11.2010] GSJ1# |
69801-58010 |
from US $78.62 |
||
|
69802
|
69802
69802-58010 Regulator Sub-Assy, Front Door Window, Lh[01.2006 - 11.2010] GSJ1# |
69802-58010 |
from US $78.62 |
||
|
85710D
|
85710D
85710-35180 Motor Assy, Power Window Regulator, Rh[01.2006 - 11.2010] GSJ1# |
85710-35180 |
from US $207.92 |
||
|
85720C
|
85720C
85720-35140 Motor Assy, Power Window Regulator, Rh[01.2006 - 11.2010] GSJ1# |
85720-35140 |
from US $212.99 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.74 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
