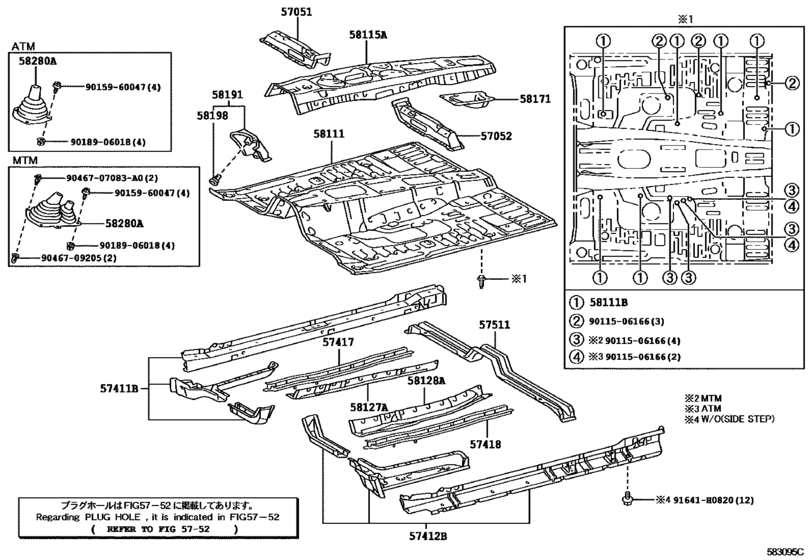

Front Floor Panel & Front Floor Member ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051
|
57051
57051-35050 Member Sub-Assy, Front Floor Cross, Rh[01.2006 - 11.2008] GSJ1# |
57051-35050 |
US $67.56 |
||
| replacement | |||||
|
57051
|
57051
57051-35051 Member Sub-Assy, Front Floor Cross, Rh[01.2006 - 11.2008] GSJ1# |
57051-35051 |
US $42.37 |
||
|
57051
|
57051
57051-35051 Member Sub-Assy, Front Floor Cross, Rh[12.2008 - 11.2010] GSJ1# |
57051-35051 |
US $42.37 |
||
|
57052
|
57052
57052-35050
Member Sub-Assy, Front Floor Cross, Lh
[01.2006 - 11.2008] GSJ1# |
57052-35050 |
— | ||
| replacement | |||||
|
57052
|
57052
57052-35051 Member Sub-Assy, Front Floor Cross, Lh[01.2006 - 11.2008] GSJ1# |
57052-35051 |
US $44.12 |
||
|
57052
|
57052
57052-35051 Member Sub-Assy, Front Floor Cross, Lh[12.2008 - 11.2010] GSJ1# |
57052-35051 |
US $44.12 |
||
|
57411B
|
57411B
57401-35906
Member, Floor Side, Inner Rh
[01.2006 - 01.2009] GSJ1# |
57401-35906 |
— | ||
| replacement | |||||
|
57411B
|
57411B
57401-35910 Member, Floor Side, Inner Rh[01.2006 - 01.2009] GSJ1# |
57401-35910 |
US $332.19 |
||
|
57411B
|
57411B
57401-35908
Member, Floor Side, Inner Rh
[01.2009 - 11.2010] GSJ1# |
57401-35908 |
— | ||
| replacement | |||||
|
57411B
|
57411B
57401-35910 Member, Floor Side, Inner Rh[01.2009 - 11.2010] GSJ1# |
57401-35910 |
US $332.19 |
||
|
57411B
|
57411B
57401-35910 Member, Floor Side, Inner Rh[05.2011 - 07.2014] GSJ1# |
57401-35910 |
US $332.19 |
||
|
57412B
|
57412B
57402-35907
Member, Floor Side, Inner Lh
[01.2006 - 01.2009] GSJ1# |
57402-35907 |
— | ||
| replacement | |||||
|
57412B
|
57412B
57402-35910 Member, Floor Side, Inner Lh[01.2006 - 01.2009] GSJ1# |
57402-35910 |
US $332.19 |
||
|
57412B
|
57412B
57402-35909
Member, Floor Side, Inner Lh
[01.2009 - 11.2010] GSJ1# |
57402-35909 |
— | ||
| replacement | |||||
|
57412B
|
57412B
57402-35910 Member, Floor Side, Inner Lh[01.2009 - 11.2010] GSJ1# |
57402-35910 |
US $332.19 |
||
|
57412B
|
57412B
57402-35910 Member, Floor Side, Inner Lh[05.2011 - 07.2014] GSJ1# |
57402-35910 |
US $332.19 |
||
|
57417
|
57417
57417-35050 Reinforcement, Front Floor Under, Rh[01.2006 - 03.2006] GSJ1# |
57417-35050 |
US $60.13 |
||
| replacement | |||||
|
57417
|
57417
57417-35051 Reinforcement, Front Floor Under, Rh[01.2006 - 03.2006] GSJ1# |
57417-35051 |
from US $36.87 |
||
|
57417
|
57417
57417-35051 Reinforcement, Front Floor Under, Rh[04.2006 - 11.2010] GSJ1# |
57417-35051 |
from US $36.87 |
||
|
57418
|
57418
57417-35060 Reinforcement, Front Floor Under, Lh[01.2006 - 03.2006] GSJ1# |
57417-35060 |
US $60.13 |
||
| replacement | |||||
|
57418
|
57418
57417-35061 Reinforcement, Front Floor Under, Lh[01.2006 - 03.2006] GSJ1# |
57417-35061 |
US $36.87 |
||
|
57418
|
57418
57417-35061 Reinforcement, Front Floor Under, Lh[04.2006 - 11.2010] GSJ1# |
57417-35061 |
US $36.87 |
||
|
57511
|
57511
57509-35010 Reinforcement Sub-Assy, Front Floor, Center[01.2006 - 11.2010] GSJ1# |
57509-35010 |
US $113.57 |
||
|
58111
|
58111
58111-60A01 Pan, Front Floor[01.2006 - 07.2008] GSJ15..MTM |
58111-60A01 |
US $711.98 |
||
| replacement | |||||
|
58111
|
58111
58111-60A02
Pan, Front Floor
[01.2006 - 07.2008] GSJ15..MTM |
58111-60A02 |
— | ||
|
58111
|
58111
58111-60A02
Pan, Front Floor
[08.2008 - 11.2010] GSJ15..MTM |
58111-60A02 |
— | ||
|
58111B
|
58111B
90115-06166 Bolt, Weld(For Front Floor Pan)[01.2006 - 11.2010] GSJ1# |
90115-06166 |
from US $0.91 |
||
|
58115A
|
58115A
58115-60031 Reinforcement, Front Floor PanelFRONT FLOOR PANEL [01.2006 - 11.2010] GSJ15..MTM |
58115-60031 |
US $129.58 |
||
|
58127A
|
58127A
58127-35010 Reinforce, Front Cross To Front Panel Member, Rh[01.2006 - 11.2010] GSJ1# |
58127-35010 |
from US $32.50 |
||
|
58128A
|
58128A
58128-35010 Reinforcement, Front Cross To Front Panel Member, Lh[01.2006 - 03.2006] GSJ1# |
58128-35010 |
US $58.09 |
||
| replacement | |||||
|
58128A
|
58128A
58128-35011 Reinforcement, Front Cross To Front Panel Member, Lh[01.2006 - 03.2006] GSJ1# |
58128-35011 |
US $35.47 |
||
|
58128A
|
58128A
58128-35011 Reinforcement, Front Cross To Front Panel Member, Lh[04.2006 - 11.2010] GSJ1# |
58128-35011 |
US $35.47 |
||
|
58171
|
58171
58171-60020 Reinforcement, Parking Brake Base[01.2006 - 11.2010] GSJ1# |
58171-60020 |
US $36.40 |
||
|
58191
|
58191
58190-35040 Footrest, Front FloorFRONT FLOOR [01.2006 - 11.2010] GSJ15..MTM |
58190-35040 |
US $25.63 |
||
| replacement | |||||
|
58191
|
58191
58190-35041 Footrest, Front Floor[01.2006 - 11.2010] GSJ15..MTM |
58190-35041 |
US $23.30 |
||
|
58198
|
58198
58198-20210 Clip, Footrest[01.2006 - 11.2010] GSJ1# |
58198-20210 |
from US $3.65 |
||
|
58280A
|
58280A
58280-35320
Boot Assy, Shift Lever
[01.2006 - 11.2010] GSJ15..MTM |
58280-35320 |
— | ||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.91 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.08 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.97 |
||
|
9046707083A0
|
9046707083A0
90467-07083-A0 Clip(For Package Tray Trim Panel) |
90467-07083-A0 |
US $1.51 |
||
|
9046709205
|
9046709205
90467-09205 CLIP |
90467-09205 |
US $1.61 |
||
