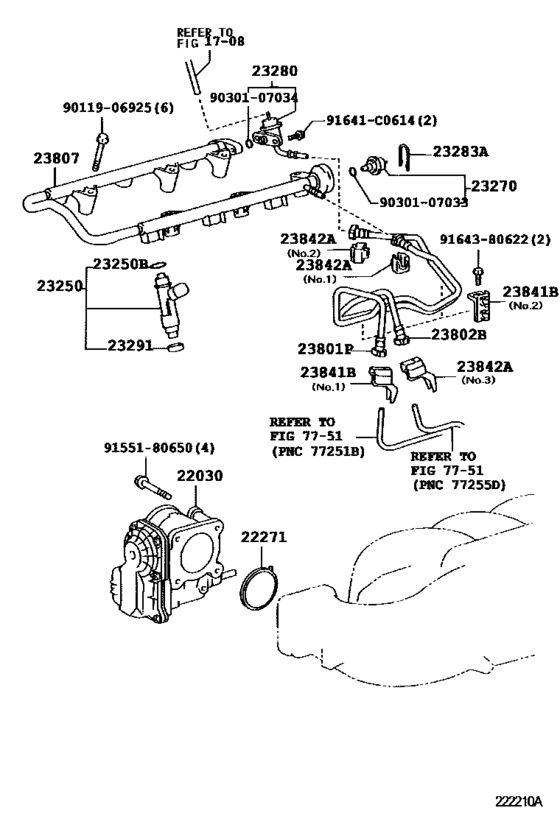

Fuel Injection System ([01.2006 - 08.2009] (0601-0908)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31010 Body Assy, Throttle W/motor[01.2006 - 08.2009] 1GRFE..GSJ1# |
22030-31010 |
from US $690.14 |
||
|
22030
|
22030
22030-31060 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [08.2009 - 11.2010] 1GRFE..GSJ1# |
22030-31060 |
from US $690.14 |
||
|
22271
|
22271
22271-31012 Gasket, Throttle Body[01.2006 - 08.2009] 1GRFE..GSJ1# |
22271-31012 |
from US $3.67 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[08.2009 - 11.2010] 1GRFE..GSJ1# |
22271-31040 |
from US $3.55 |
||
|
23250
|
23250
23209-39015 Injector Assy, Fuel[01.2006 - 11.2007] 1GRFE..GSJ1# DENSO |
23209-39015 |
from US $200.03 |
||
|
23250
|
23250
23209-39075
Injector Assy, Fuel
[01.2006 - 08.2009] 1GRFE..GSJ1# AISIN |
23209-39075 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39015 Injector Assy, Fuel[01.2006 - 08.2009] 1GRFE..GSJ1# AISIN |
23209-39015 |
from US $200.03 |
||
|
23250
|
23250
23209-39215
Injector Assy, Fuel
[08.2009 - 11.2010] 1GRFE..GSJ1# |
23209-39215 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39445 Injector Set Fuel[08.2009 - 11.2010] 1GRFE..GSJ1# |
23209-39445 |
from US $169.96 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[01.2006 - 11.2010] 1GRFE..GSJ1# |
90301-07033 |
from US $2.13 |
||
|
23270
|
23270
23270-31010
Damper Assy, Fuel Pressure Pulsation
[01.2006 - 08.2009] 1GRFE..GSJ1# |
23270-31010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[01.2006 - 08.2009] 1GRFE..GSJ1# |
23270-31140 |
from US $48.05 |
||
|
23270
|
23270
23270-31080
Damper Assy, Fuel Pressure Pulsation
[08.2009 - 11.2010] 1GRFE..GSJ1# |
23270-31080 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[08.2009 - 11.2010] 1GRFE..GSJ1# |
23270-31140 |
from US $48.05 |
||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[01.2012 - 07.2014] 1GRFE..GSJ1# |
23270-31140 |
from US $48.05 |
||
|
23280
|
23280
23280-31010 Regulator Assy, Fuel Pressure[01.2006 - 08.2009] 1GRFE..GSJ1# |
23280-31010 |
from US $67.64 |
||
|
23280
|
23280
23280-31050 Regulator Assy, Fuel PressureFUEL PRESSURE [08.2009 - 11.2010] 1GRFE..GSJ1# |
23280-31050 |
US $107.74 |
||
| replacement | |||||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[08.2009 - 11.2010] 1GRFE..GSJ1# |
23280-31051 |
from US $61.90 |
||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[01.2012 - 07.2014] 1GRFE..GSJ1# |
23280-31051 |
from US $61.90 |
||
|
23283A
|
23283A
23283-31010 Holder, Fuel Pressure Regulator[01.2006 - 11.2010] 1GRFE..GSJ1# |
23283-31010 |
US $2.27 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[01.2006 - 11.2010] 1GRFE..GSJ1# |
23291-23010 |
from US $2.51 |
||
|
23801P
|
23801P
23801-31070 Pipe Sub-Assy, Fuel, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# |
23801-31070 |
US $42.66 |
||
|
23801P
|
23801P
23801-31170
Pipe Sub-Assy, Fuel, No.1
[08.2009 - 11.2010] 1GRFE..GSJ1# |
23801-31170 |
— | ||
|
23802B
|
23802B
23802-31020 Pipe Sub-Assy, Fuel, No.2[01.2006 - 08.2009] 1GRFE..GSJ1# |
23802-31020 |
US $42.66 |
||
|
23802B
|
23802B
23802-31110 Pipe Sub-Assy, Fuel, No.2FUEL, NO.2 [08.2009 - 11.2010] 1GRFE..GSJ1# |
23802-31110 |
from US $36.90 |
||
|
23807
|
23807
23807-31010 Pipe Sub-Assy, Fuel Delivery[01.2006 - 08.2009] 1GRFE..GSJ1# |
23807-31010 |
from US $88.86 |
||
|
23807
|
23807
23807-31120 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.2009 - 11.2010] 1GRFE..GSJ1# |
23807-31120 |
from US $43.74 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[05.2007 - 11.2010] 1GRFE..GSJ1# NO.1 |
23841-21050 |
US $3.94 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[01.2006 - 04.2007] 1GRFE..GSJ1# NO.1 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[01.2006 - 04.2007] 1GRFE..GSJ1# NO.1 |
23841-21050 |
US $3.94 |
||
|
23841B
|
23841B
23841-31030 Clamp, Fuel Pipe, No.1(For Efi)[01.2006 - 08.2009] 1GRFE..GSJ1# NO.2 |
23841-31030 |
from US $2.62 |
||
|
23841B
|
23841B
23841-31080 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [08.2009 - 11.2010] 1GRFE..GSJ1# NO.2 |
23841-31080 |
US $2.62 |
||
|
23842A
|
23842A
23842-31020 Clamp, Fuel Pipe, No.2(For Efi)[01.2006 - 08.2009] 1GRFE..GSJ1# NO.1 |
23842-31020 |
US $5.77 |
||
|
23842A
|
23842A
23842-31030 Clamp, Fuel Pipe, No.2(For Efi)[01.2006 - 08.2009] 1GRFE..GSJ1# NO.2 |
23842-31030 |
US $5.77 |
||
|
23842A
|
23842A
23842-50010 Clamp, Fuel Pipe, No.2(For Efi)FUEL PIPE, NO.2(FOR EFI) [01.2006 - 08.2009] 1GRFE..GSJ1# NO.3 |
23842-50010 |
US $6.87 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.65 |
||
|
9011906925
|
9011906925
90119-06925 New Genuine Part |
90119-06925 |
US $0.60 |
||
|
9030107033
|
9030107033
90301-07033 Ring, O(For Fuel Injector) |
90301-07033 |
from US $2.13 |
||
|
9030107034
|
9030107034
90301-07034 RING O |
90301-07034 |
from US $2.13 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.78 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
