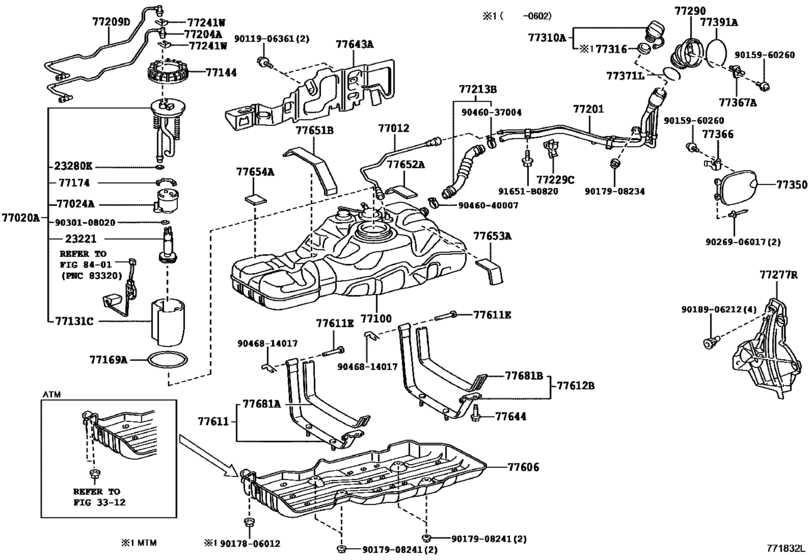

Fuel Tank & Tube ([01.2006 - 08.2009] FUEL TANK (0601-0908)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23221
|
23221
23220-50130 Fuel Pump[01.2006 - 08.2009] 1GRFE..GSJ1# |
23220-50130 |
from US $370.98 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[08.2009 - 11.2010] 1GRFE..GSJ1# NO.1 |
90301-04013 |
from US $2.07 |
||
|
23280K
|
23280K
90301-08020 Ring, O(For Fuel Pump)[01.2006 - 08.2009] 1GRFE..GSJ1# |
90301-08020 |
from US $2.57 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[08.2009 - 11.2010] 1GRFE..GSJ1# NO.2 |
90301-15024 |
from US $2.09 |
||
|
77012
|
77012
77012-35070 Tube Sub-Assy, Fuel Tank BreatherFUEL TANK BREATHER [01.2006 - 11.2010] GSJ1# |
77012-35070 |
US $15.16 |
||
|
77020A
|
77020A
77020-35120
Tube Assy, Fuel Suction W/pump & Gage
[01.2006 - 08.2006] GSJ1# |
77020-35120 |
— | ||
| replacement | |||||
|
77020A
|
77020A
77020-35121 Tube Assy, Fuel Suction W/pump & Gage[01.2006 - 08.2006] GSJ1# |
77020-35121 |
US $807.71 |
||
|
77020A
|
77020A
77020-35121 Tube Assy, Fuel Suction W/pump & Gage[09.2006 - 08.2009] GSJ1# |
77020-35121 |
US $807.71 |
||
|
77020A
|
77020A
77020-35170
Tube Assy, Fuel Suction W/pump & Gage
[08.2009 - 11.2010] GSJ1# |
77020-35170 |
— | ||
| replacement | |||||
|
77020A
|
77020A
77020-35171
Tube Assy, Fuel Suction W/pump & Gage
[08.2009 - 11.2010] GSJ1# |
77020-35171 |
— | ||
|
77020A
|
77020A
77020-35171
Tube Assy, Fuel Suction W/pump & Gage
[09.2012 - 07.2014] GSJ1# |
77020-35171 |
— | ||
|
77024A
|
77024A
77024-35040 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [01.2006 - 08.2009] GSJ1# |
77024-35040 |
from US $114.80 |
||
|
77024A
|
77024A
77024-35070 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [08.2009 - 11.2010] GSJ1# |
77024-35070 |
from US $76.56 |
||
|
77100
|
77100
77001-3D550
Tank Assy, Fuel
[01.2006 - 11.2010] GSJ1# |
77001-3D550 |
— | ||
| replacement | |||||
|
77100
|
77100
77001-3D551 Tank Assy, Fuel[01.2006 - 11.2010] GSJ1# |
77001-3D551 |
US $489.22 |
||
|
77131C
|
77131C
77131-26112 Bracket, Fuel Tank Filler Pipe Support[01.2006 - 03.2008] GSJ1# |
77131-26112 |
from US $21.96 |
||
|
77131C
|
77131C
77131-60090 Sub-Tank, Fuel, No.1FUEL, NO.1 [08.2009 - 11.2010] GSJ1# |
77131-60090 |
from US $18.48 |
||
|
77131C
|
77131C
77131-60140 Bracket, Fuel Tank Filler Pipe SupportFUEL TANK FILLER PIPE SUPPORT [04.2008 - 08.2009] GSJ1# |
77131-60140 |
from US $16.72 |
||
|
77144
|
77144
77144-35010 Retainer, Fuel Pump Gauge[01.2006 - 11.2010] GSJ1# |
77144-35010 |
from US $28.16 |
||
|
77169A
|
77169A
77169-30050 Gasket, Fuel Suction Tube Set(for the fuel tank pump housing) [01.2010 - 11.2010] GSJ1# |
77169-30050 |
from US $4.84 |
||
|
77169A
|
77169A
77169-35010
Gasket, Fuel Suction Tube Set
[01.2006 - 12.2009] GSJ1# |
77169-35010 |
— | ||
| replacement | |||||
|
77169A
|
77169A
77169-30050 Gasket, Fuel Suction Tube Set(for the fuel tank pump housing) [01.2006 - 12.2009] GSJ1# |
77169-30050 |
from US $4.84 |
||
|
77174
|
77174
77174-26010 Support, Fuel Suction, No.1[09.2006 - 08.2009] GSJ1# |
77174-26010 |
from US $6.14 |
||
|
77174
|
77174
77174-60020 Support, Fuel Suction, No.1FUEL SUCTION, NO.1 [08.2009 - 11.2010] GSJ1# |
77174-60020 |
US $5.53 |
||
|
77201
|
77201
77201-35800
Pipe Sub-Assy, Fuel Tank Inlet
[01.2006 - 11.2010] GSJ1# |
77201-35800 |
— | ||
|
77201
|
77201
77201-35840
Pipe Sub-Assy, Fuel Tank Inlet
[05.2012 - 07.2014] GSJ1# |
77201-35840 |
— | ||
|
77204A
|
77204A
77204-35080 Tube, Fuel Tank ReturnFUEL TANK RETURN [01.2006 - 11.2010] GSJ1# |
77204-35080 |
US $21.32 |
||
|
77209D
|
77209D
77209-35450 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [01.2006 - 11.2010] GSJ1# |
77209-35450 |
US $21.32 |
||
|
77213B
|
77213B
77213-35370
Hose, Fuel Tank To Filler Pipe
[01.2006 - 11.2010] GSJ1# |
77213-35370 |
— | ||
| replacement | |||||
|
77213B
|
77213B
77213-35371
Hose, Fuel Tank To Filler Pipe
[01.2006 - 11.2010] GSJ1# |
77213-35371 |
— | ||
|
77229C
|
77229C
77229-60070 Clamp, Breather TubeBREATHER TUBE [01.2006 - 11.2010] GSJ1# |
77229-60070 |
US $6.12 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[12.2009 - 11.2010] GSJ1# |
77241-33011 |
from US $0.84 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[01.2006 - 11.2009] GSJ1# |
77241-60320 |
from US $0.86 |
||
|
77277R
|
77277R
77277-35030
Protector, Fuel Tank Filler Pipe
[01.2006 - 07.2009] GSJ1# |
77277-35030 |
— | ||
| replacement | |||||
|
77277R
|
77277R
77277-35031 Protector, Fuel Tank Filler Pipe[01.2006 - 07.2009] GSJ1# |
77277-35031 |
US $15.14 |
||
|
77277R
|
77277R
77277-35031 Protector, Fuel Tank Filler Pipe[08.2009 - 11.2010] GSJ1# |
77277-35031 |
US $15.14 |
||
|
77290
|
77290
77291-35140 Shield Assy, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [01.2006 - 11.2010] GSJ1# |
77291-35140 |
from US $20.68 |
||
|
77310A
|
77310A
77300-52040 Cap Assy, Fuel TankFUEL TANK [01.2006 - 11.2010] GSJ1# |
77300-52040 |
from US $25.71 |
||
|
77316
|
77316
77316-52020 Gasket, Fuel Tank Cap[01.2006 - 02.2006] GSJ1# |
77316-52020 |
US $5.24 |
||
| replacement | |||||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[01.2006 - 02.2006] GSJ1# |
77316-52040 |
from US $4.12 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[11.2010 - 07.2014] GSJ1# |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-35060 Lid Assy, Fuel Filler OpeningFUEL FILLER OPENING [01.2006 - 11.2010] GSJ1# |
77350-35060 |
from US $36.25 |
||
|
77366
|
77366
77366-35030 Spring, Fuel Filler Opening Lid HingeFUEL FILLER OPENING LID HINGE [01.2006 - 11.2010] GSJ1# |
77366-35030 |
from US $0.68 |
||
|
77367A
|
77367A
77367-35020 Clamp, Fuel Filler Lid Pin, No.1FUEL FILLER LID PIN, NO.1 [01.2006 - 11.2010] GSJ1# |
77367-35020 |
from US $2.53 |
||
|
77371L
|
77371L
77371-35010 Ring, Fuel Tank Filler Pipe Shield[01.2006 - 11.2010] GSJ1# |
77371-35010 |
from US $1.77 |
||
|
77391A
|
77391A
77391-12010 Ring, Fuel Inlet Box[01.2006 - 11.2010] GSJ1# |
77391-12010 |
US $2.91 |
||
|
77606
|
77606
77606-35070 Protector Sub-Assy, Fuel Tank, No.1FUEL TANK, NO.1 [01.2006 - 11.2010] GSJ1# |
77606-35070 |
from US $96.75 |
||
|
77611
|
77611
77601-35110 Band, Fuel TankFUEL TANK [01.2006 - 11.2010] GSJ1# |
77601-35110 |
US $24.11 |
||
|
77611E
|
77611E
77653-35040 Pin (For Fuel Tank Band)[01.2006 - 11.2010] GSJ1# |
77653-35040 |
US $8.06 |
||
|
77612B
|
77612B
77602-35050 Band, Fuel Tank, No.2FUEL TANK, NO.2 [01.2006 - 11.2010] GSJ1# |
77602-35050 |
US $32.50 |
||
|
77643A
|
77643A
77643-35050 Protector, Fuel Tank, No.3FUEL TANK, NO.3 [01.2006 - 11.2010] GSJ1# |
77643-35050 |
US $26.21 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[01.2006 - 11.2010] GSJ1# |
77644-35030 |
from US $1.41 |
||
|
77651B
|
77651B
77651-35070 Cushion, Fuel Tank[01.2006 - 11.2010] GSJ1# |
77651-35070 |
US $17.74 |
||
|
77652A
|
77652A
77652-35060 Cushion, Fuel Tank, No.2[01.2006 - 11.2010] GSJ1# |
77652-35060 |
US $8.96 |
||
|
77653A
|
77653A
77653-35050 Cushion, Fuel Tank, No.3[01.2006 - 11.2010] GSJ1# |
77653-35050 |
US $11.65 |
||
|
77654A
|
77654A
77654-35010 Cushion, Fuel Tank, No.4FUEL TANK, NO.4 [01.2006 - 11.2010] GSJ1# |
77654-35010 |
US $3.35 |
||
|
77681A
|
77681A
77681-35060
Seat, Fuel Tank Band
[01.2006 - 11.2010] GSJ1# |
77681-35060 |
— | ||
|
77681B
|
77681B
77681-35040
Seat, Fuel Tank Band
[01.2006 - 04.2007] GSJ1# |
77681-35040 |
— | ||
| replacement | |||||
|
77681B
|
77681B
77681-35041 Seat, Fuel Tank Band[01.2006 - 04.2007] GSJ1# |
77681-35041 |
US $17.65 |
||
|
77681B
|
77681B
77681-35041 Seat, Fuel Tank Band[05.2007 - 11.2010] GSJ1# |
77681-35041 |
US $17.65 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9015960260
|
9015960260
90159-60260 SCREW |
90159-60260 |
US $1.61 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.80 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.89 |
||
|
9018906212
|
9018906212
90189-06212 GROMMET SCREW |
90189-06212 |
from US $0.86 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9030108020
|
9030108020
90301-08020 Ring, O(For Fuel Pump) |
90301-08020 |
from US $2.57 |
||
|
9046037004
|
9046037004
90460-37004
New Genuine Part
|
90460-37004 |
— | ||
|
9046040007
|
9046040007
90460-40007 Clamp (For Fuel Filler Pipe) |
90460-40007 |
US $3.40 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.80 |
||
