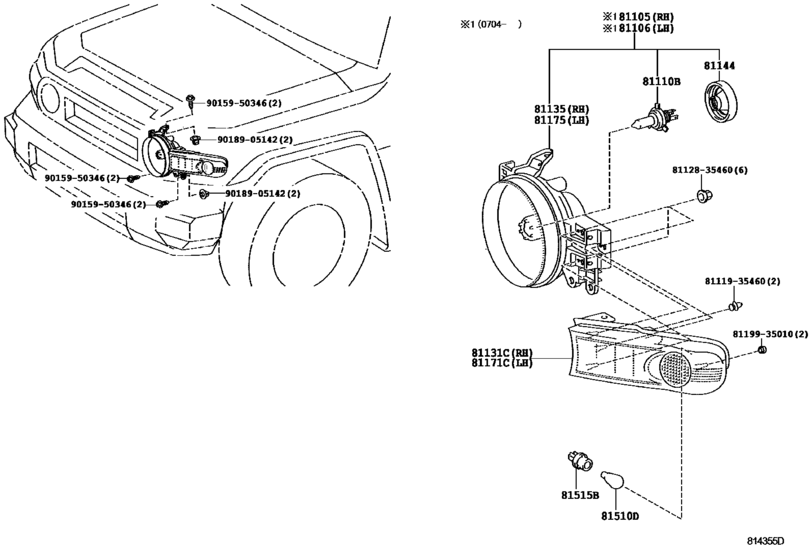

Headlamp ([01.2006 - 07.2014] (0601-1407)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-35464
Housing Sub-Assy, Headlamp, Rh
[04.2007 - 09.2009] GSJ1# |
81105-35464 |
— | ||
| replacement | |||||
|
81105
|
81105
81105-35465 Housing Sub-Assy, Headlamp, Rh[04.2007 - 09.2009] GSJ1# |
81105-35465 |
US $366.91 |
||
|
81105
|
81105
81105-35465 Housing Sub-Assy, Headlamp, Rh[09.2009 - 11.2010] GSJ1# |
81105-35465 |
US $366.91 |
||
|
81106
|
81106
81106-35444
Housing Sub-Assy, Headlamp, Lh
[04.2007 - 09.2009] GSJ1# |
81106-35444 |
— | ||
| replacement | |||||
|
81106
|
81106
81106-35445 Housing Sub-Assy, Headlamp, Lh[04.2007 - 09.2009] GSJ1# |
81106-35445 |
US $366.91 |
||
|
81106
|
81106
81106-35445 Housing Sub-Assy, Headlamp, Lh[09.2009 - 11.2010] GSJ1# |
81106-35445 |
US $366.91 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [01.2006 - 11.2010] GSJ1# 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81131C
|
81131C
81131-35460 Lens, Front Turn Signal Lamp, RhFRONT TURN SIGNAL LAMP, RH [01.2006 - 11.2010] GSJ1# |
81131-35460 |
from US $123.52 |
||
|
81131C
|
81131C
81131-35560 Lens, Front Turn Signal Lamp, Rh[08.2011 - 07.2014] GSJ1# |
81131-35560 |
from US $54.66 |
||
|
81135
|
81135
81140-35460 Unit Assy, Headlamp, Rh[01.2006 - 07.2006] GSJ1# |
81140-35460 |
US $476.11 |
||
| replacement | |||||
|
81135
|
81135
81140-35465 Unit Assy, Headlamp, Rh[01.2006 - 07.2006] GSJ1# |
81140-35465 |
US $350.93 |
||
|
81135
|
81135
81140-35461
Unit Assy, Headlamp, Rh
[08.2006 - 04.2007] GSJ1# |
81140-35461 |
— | ||
| replacement | |||||
|
81135
|
81135
81140-35465 Unit Assy, Headlamp, Rh[08.2006 - 04.2007] GSJ1# |
81140-35465 |
US $350.93 |
||
|
81135
|
81135
81140-35464 Unit Assy, Headlamp, Rh[04.2007 - 09.2009] GSJ1# |
81140-35464 |
US $396.03 |
||
| replacement | |||||
|
81135
|
81135
81140-35465 Unit Assy, Headlamp, Rh[04.2007 - 09.2009] GSJ1# |
81140-35465 |
US $350.93 |
||
|
81135
|
81135
81140-35465 Unit Assy, Headlamp, Rh[09.2009 - 11.2010] GSJ1# |
81140-35465 |
US $350.93 |
||
|
81144
|
81144
81139-52010 Cover, Headlamp Socket[01.2006 - 11.2010] GSJ1# |
81139-52010 |
from US $12.24 |
||
|
81171C
|
81171C
81171-35440 Lens, Front Turn Signal Lamp, LhFRONT TURN SIGNAL LAMP, LH [01.2006 - 11.2010] GSJ1# |
81171-35440 |
from US $86.75 |
||
|
81171C
|
81171C
81171-35550 Lens, Front Turn Signal Lamp, Lh[08.2011 - 07.2014] GSJ1# |
81171-35550 |
from US $57.38 |
||
|
81175
|
81175
81070-35440 Unit Assy, Headlamp, Lh[01.2006 - 07.2006] GSJ1# |
81070-35440 |
US $476.11 |
||
| replacement | |||||
|
81175
|
81175
81070-35445 Unit Assy, Headlamp, Lh[01.2006 - 07.2006] GSJ1# |
81070-35445 |
US $350.93 |
||
|
81175
|
81175
81070-35441
Unit Assy, Headlamp, Lh
[08.2006 - 04.2007] GSJ1# |
81070-35441 |
— | ||
| replacement | |||||
|
81175
|
81175
81070-35445 Unit Assy, Headlamp, Lh[08.2006 - 04.2007] GSJ1# |
81070-35445 |
US $350.93 |
||
|
81175
|
81175
81070-35444 Unit Assy, Headlamp, Lh[04.2007 - 09.2009] GSJ1# |
81070-35444 |
US $396.03 |
||
| replacement | |||||
|
81175
|
81175
81070-35445 Unit Assy, Headlamp, Lh[04.2007 - 09.2009] GSJ1# |
81070-35445 |
US $350.93 |
||
|
81175
|
81175
81070-35445 Unit Assy, Headlamp, Lh[09.2009 - 11.2010] GSJ1# |
81070-35445 |
US $350.93 |
||
|
81510D
|
81510D
99132-21210 Bulb, Cornering Lamp[01.2006 - 11.2010] GSJ1# 12V 21/5W |
99132-21210 |
from US $2.74 |
||
|
81515B
|
81515B
81555-97223 Socket, Front Turn Signal LampFRONT TURN SIGNAL LAMP [04.2007 - 11.2010] GSJ1# |
81555-97223 |
from US $20.88 |
||
|
81515B
|
81515B
81615-20610 Socket Plug, Clearance Lamp[01.2006 - 04.2007] GSJ1# |
81615-20610 |
US $15.03 |
||
|
8111935460
|
8111935460
81119-35460 Screw, Headlamp |
81119-35460 |
from US $2 |
||
|
8112835460
|
8112835460
81128-35460 Nut, Headlamp |
81128-35460 |
US $3.94 |
||
|
8119935010
|
8119935010
81199-35010 Joint, Headlamp Hose |
81199-35010 |
from US $0.87 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.67 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
