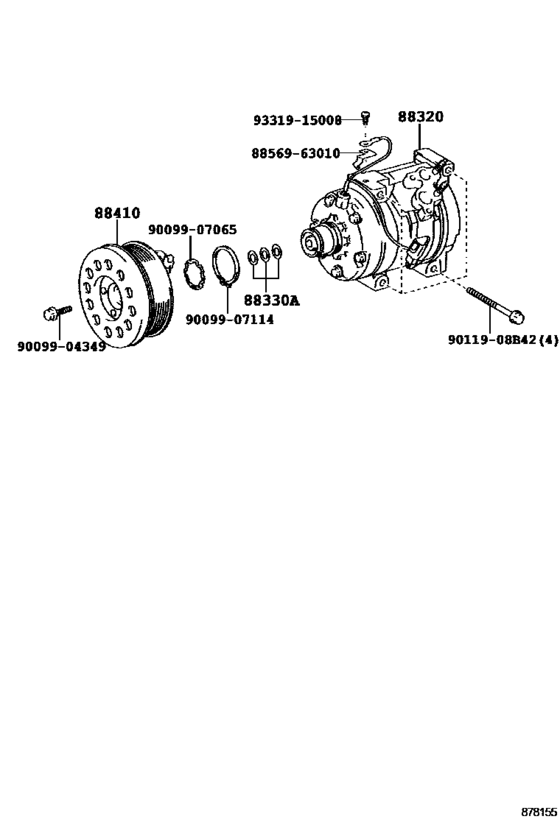

Heating & Air Conditioning - Compressor ([01.2006 - 08.2009] (0601-0908)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-35700
Compressor Assy, Cooler
[01.2006 - 08.2009] GSJ1# |
88320-35700 |
— | ||
|
88320
|
88320
88320-6A540
Compressor Assy, Cooler
[08.2009 - 11.2010] GSJ1# |
88320-6A540 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[01.2006 - 11.2010] GSJ1# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-2F010 Clutch Assy, Magnet[08.2009 - 11.2010] GSJ1# |
88410-2F010 |
from US $366.91 |
||
|
88410
|
88410
88410-35430 Clutch Assy, Magnet[01.2006 - 08.2009] GSJ1# |
88410-35430 |
US $487.76 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.12 |
||
|
8856963010
|
8856963010
88569-63010
Clamp (for Cooler Relay)
|
88569-63010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
