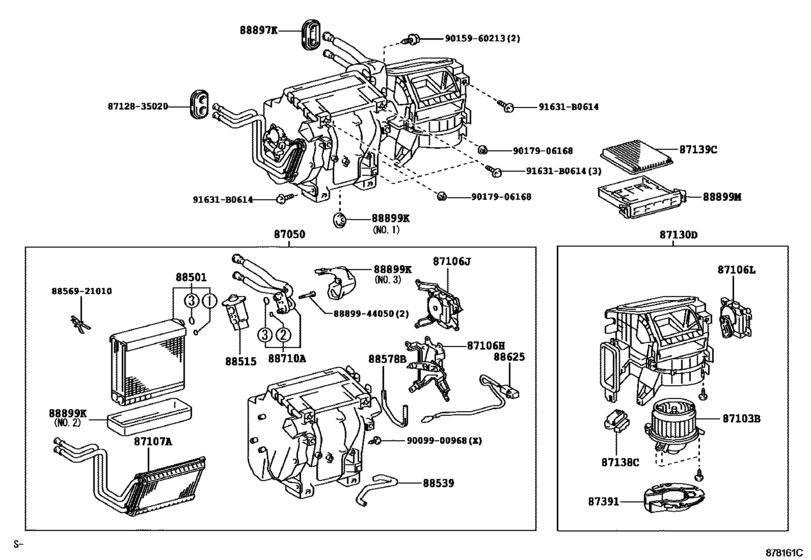

Heating & Air Conditioning - Cooler Unit ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-35060 Radiator Assy, Air ConditionerAIR CONDITIONER [01.2006 - 11.2010] GSJ1# |
87050-35060 |
from US $955.72 |
||
|
87103B
|
87103B
87103-35090
Motor Sub-Assy, Blower W/fan
[01.2006 - 10.2010] GSJ1# |
87103-35090 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-35100 Motor Sub-Assy, Blower W/fan[01.2006 - 10.2010] GSJ1# |
87103-35100 |
from US $200.93 |
||
|
87103B
|
87103B
87103-35100 Motor Sub-Assy, Blower W/fan[10.2010 - 11.2010] GSJ1# |
87103-35100 |
from US $200.93 |
||
|
87106H
|
87106H
87106-35190
Servo Sub-Assy, Damper(For Airmix)
[01.2006 - 11.2010] GSJ1# |
87106-35190 |
— | ||
|
87106J
|
87106J
87106-35120 Servo Sub-Assy, Damper(For Mode)[01.2006 - 11.2010] GSJ1# |
87106-35120 |
from US $116.58 |
||
|
87106L
|
87106L
87106-60170 Servo Sub-Assy, DamperDAMPER [01.2006 - 11.2010] GSJ1# |
87106-60170 |
US $108.59 |
||
|
87107A
|
87107A
87107-35100 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [01.2006 - 11.2010] GSJ1# |
87107-35100 |
US $388.99 |
||
|
87130D
|
87130D
87130-35180
Blower Assy
[01.2006 - 08.2009] GSJ1# |
87130-35180 |
— | ||
|
87130D
|
87130D
87130-35200
Blower Assy
[08.2009 - 10.2010] GSJ1# |
87130-35200 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-35220
Blower Assy
[08.2009 - 10.2010] GSJ1# |
87130-35220 |
— | ||
|
87130D
|
87130D
87130-35220
Blower Assy
[10.2010 - 11.2010] GSJ1# |
87130-35220 |
— | ||
|
87138C
|
87138C
87138-60280 Resistor, BlowerBLOWER [01.2006 - 11.2010] GSJ1# |
87138-60280 |
US $19.95 |
||
|
87139C
|
87139C
87139-33010 Filter, Clean Air[07.2007 - 11.2010] GSJ1# DEODORANT FILTER |
87139-33010 |
US $107.18 |
||
| replacement | |||||
|
87139C
|
87139C
87139-47020 Filter, Clean Air[07.2007 - 11.2010] GSJ1# DEODORANT FILTER |
87139-47020 |
US $67.20 |
||
|
87139C
|
87139C
87139-47010 Filter, Clean Air[01.2006 - 07.2007] GSJ1# |
87139-47010 |
from US $22.71 |
||
| replacement | |||||
|
87139C
|
87139C
87139-28010 Filter, Clean Air[01.2006 - 07.2007] GSJ1# |
87139-28010 |
from US $26.11 |
||
|
87391
|
87391
87391-35010
Cover, Blower Motor
[01.2006 - 11.2010] GSJ1# |
87391-35010 |
— | ||
|
88501
|
88501
88501-35150
Evaporator Sub-Assy, Cooler, No.1
[10.2010 - 11.2010] GSJ1# |
88501-35150 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35151 Evaporator Sub-Assy, Cooler, No.1[10.2010 - 11.2010] GSJ1# |
88501-35151 |
from US $290.04 |
||
|
88501
|
88501
88501-35151 Evaporator Sub-Assy, Cooler, No.1[12.2011 - 07.2014] GSJ1# |
88501-35151 |
from US $290.04 |
||
|
88501
|
88501
88501-60300
Evaporator Sub-Assy, Cooler, No.1
[01.2006 - 08.2009] GSJ1# |
88501-60300 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35151 Evaporator Sub-Assy, Cooler, No.1[01.2006 - 08.2009] GSJ1# |
88501-35151 |
from US $290.04 |
||
|
88501
|
88501
88501-60430
Evaporator Sub-Assy, Cooler, No.1
[08.2009 - 10.2010] GSJ1# |
88501-60430 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35151 Evaporator Sub-Assy, Cooler, No.1[08.2009 - 10.2010] GSJ1# |
88501-35151 |
from US $290.04 |
||
|
88515
|
88515
88515-60190 Valve, Cooler Expansion[01.2006 - 11.2010] GSJ1# |
88515-60190 |
from US $100.30 |
||
|
88539
|
88539
88539-35030
Hose, Cooler Unit Drain, No.1
[01.2006 - 11.2010] GSJ1# |
88539-35030 |
— | ||
|
88578B
|
88578B
88578-35170
Packing, Cooling Unit, No.1
[01.2006 - 11.2010] GSJ1# |
88578-35170 |
— | ||
|
88625
|
88625
88625-60190 Thermistor, Cooler, No.1[01.2006 - 11.2010] GSJ1# |
88625-60190 |
from US $8.04 |
||
|
88710A
|
88710A
88710-35650 Tube Assy, Air ConditionerAIRCONDITIONER [01.2006 - 11.2010] GSJ1# |
88710-35650 |
US $77.17 |
||
|
88897K
|
88897K
88897-35020
Grommet, (For Cooler Pipe)
[01.2006 - 11.2010] GSJ1# |
88897-35020 |
— | ||
|
88899K
|
88899K
88899-3A010
Grommet (For Drain Hose)
[01.2006 - 11.2010] GSJ1# NO.1 |
88899-3A010 |
— | ||
|
88899K
|
88899K
88899-60260
Plate, Cover
[01.2006 - 11.2010] GSJ1# NO.3 |
88899-60260 |
— | ||
|
88899K
|
88899K
88899-60320
Plate, Cover
[08.2009 - 11.2010] GSJ1# NO.2 |
88899-60320 |
— | ||
|
88899M
|
88899M
88899-41010 Plate, Cover(For Air Filter)[01.2006 - 11.2010] GSJ1# |
88899-41010 |
from US $8.74 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
|
8712835020
|
8712835020
87128-35020
Grommet, Heater
|
87128-35020 |
— | ||
|
8856921010
|
8856921010
88569-21010
Clamp (for Cooler Relay)
|
88569-21010 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
from US $0.84 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.97 |
||
