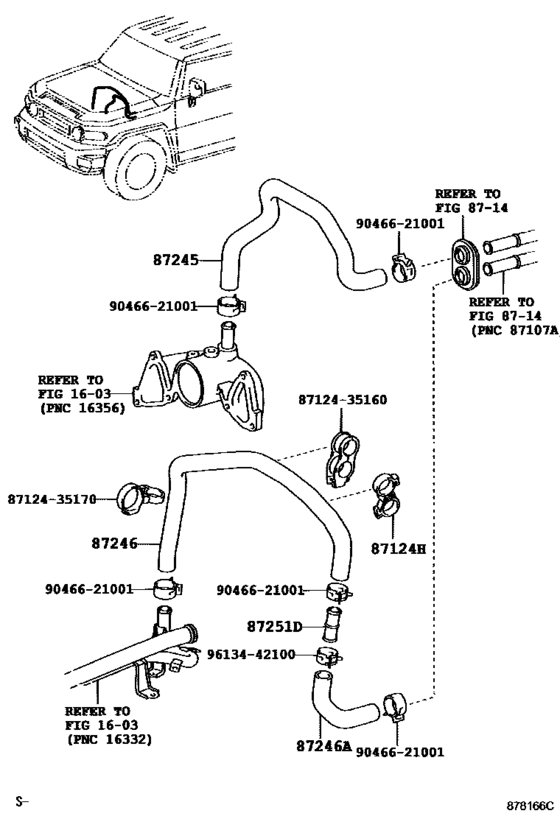

Heating & Air Conditioning - Water Piping ([01.2006 - 08.2009] (0601-0908)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87124H
|
87124H
87124-42030 Clamp, Heater[01.2006 - 08.2009] GSJ1# |
87124-42030 |
from US $1.40 |
||
|
87245
|
87245
87245-3D490 Hose, Heater Water, InletHEATER WATER, OUTLET A [01.2006 - 08.2009] GSJ1# |
87245-3D490 |
from US $38.64 |
||
|
87245
|
87245
87245-60D40 Hose, Heater Water, InletHEATER WATER, OUTLET A [08.2009 - 11.2010] GSJ1# |
87245-60D40 |
from US $11.47 |
||
|
87246
|
87246
87245-3D480 Hose, Heater Water, Inlet AHEATER WATER, INLET A [01.2006 - 08.2009] GSJ1# |
87245-3D480 |
from US $51.58 |
||
|
87246
|
87246
87245-60D50 Hose, Heater Water, Inlet AHEATER WATER, INLET A [08.2009 - 11.2010] GSJ1# |
87245-60D50 |
from US $13.62 |
||
|
87246A
|
87246A
87245-35A50 Hose, Heater Water, Outlet A[08.2009 - 11.2010] GSJ1# |
87245-35A50 |
US $23.41 |
||
|
87246A
|
87246A
87245-3D500 Hose, Heater Water, Inlet BHEATER WATER, INLET B [01.2006 - 08.2009] GSJ1# |
87245-3D500 |
from US $14.69 |
||
|
87251D
|
87251D
87251-35020 Pipe Sub-Assy, Water[01.2006 - 08.2009] GSJ1# |
87251-35020 |
from US $3.67 |
||
|
8712435160
|
8712435160
87124-35160
Clamp, Heater
|
87124-35160 |
— | ||
|
8712435170
|
8712435170
87124-35170
Clamp, Heater
|
87124-35170 |
— | ||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
