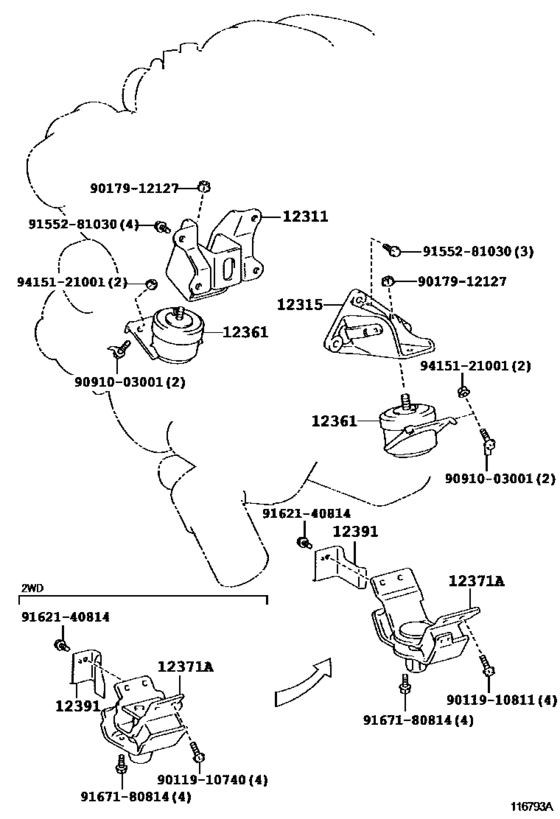

Mounting ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-31021 Bracket, Engine Mounting, Front No.1 Rh[01.2006 - 11.2010] 1GRFE..GSJ1# |
12311-31021 |
from US $38.06 |
||
|
12315
|
12315
12315-31051 Bracket, Engine Mounting, Front No.1 Lh[01.2006 - 11.2010] 1GRFE..GSJ1# |
12315-31051 |
US $53.09 |
||
|
12361
|
12361
12361-31080
Insulator, Engine Mounting, Front
[01.2006 - 12.2008] 1GRFE..GSJ1# |
12361-31080 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-31081 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [01.2006 - 12.2008] 1GRFE..GSJ1# |
12361-31081 |
from US $100.76 |
||
|
12361
|
12361
12361-31081 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [12.2008 - 08.2009] 1GRFE..GSJ1# |
12361-31081 |
from US $100.76 |
||
|
12361
|
12361
12361-31290 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [08.2009 - 11.2010] 1GRFE..GSJ1# |
12361-31290 |
from US $87.12 |
||
|
12371A
|
12371A
12371-31050
Insulator, Engine Mounting, Rear No.1
[01.2006 - 11.2010] 1GRFE..GSJ15 |
12371-31050 |
— | ||
| replacement | |||||
|
12371A
|
12371A
12371-31051 Insulator, Engine Mounting, Rear No.1[01.2006 - 11.2010] 1GRFE..GSJ15 |
12371-31051 |
from US $83.28 |
||
|
12371A
|
12371A
12371-31310 Insulator, Engine Mounting, Rear[11.2011 - 07.2014] 1GRFE..GSJ15..MTM |
12371-31310 |
US $94.13 |
||
|
12391
|
12391
12391-31020 Insulator, Engine Mounting Front, Heat, Rh[01.2006 - 11.2010] 1GRFE..GSJ15 |
12391-31020 |
US $9.09 |
||
|
9011910740
|
9011910740
90119-10740 New Genuine Part |
90119-10740 |
US $1.97 |
||
|
9011910811
|
9011910811
90119-10811 Bolt, With Washer |
90119-10811 |
US $1.97 |
||
|
9017912127
|
9017912127
90179-12127 Nut |
90179-12127 |
from US $0.93 |
||
| replacement | |||||
|
9017912127
|
9017912127
90178-A0071 New Genuine Part |
90178-A0071 |
US $3.02 |
||
|
9091003001
|
9091003001
90910-03001 BOLT, ENGINE MOUNT |
90910-03001 |
from US $4.93 |
||
|
9155281030
|
9155281030
91552-81030 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91552-81030 |
US $1.79 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
|
9415121001
|
9415121001
94151-21001 Nut(For Front Suspension Upper Arm Rh) |
94151-21001 |
from US $0.93 |
||
