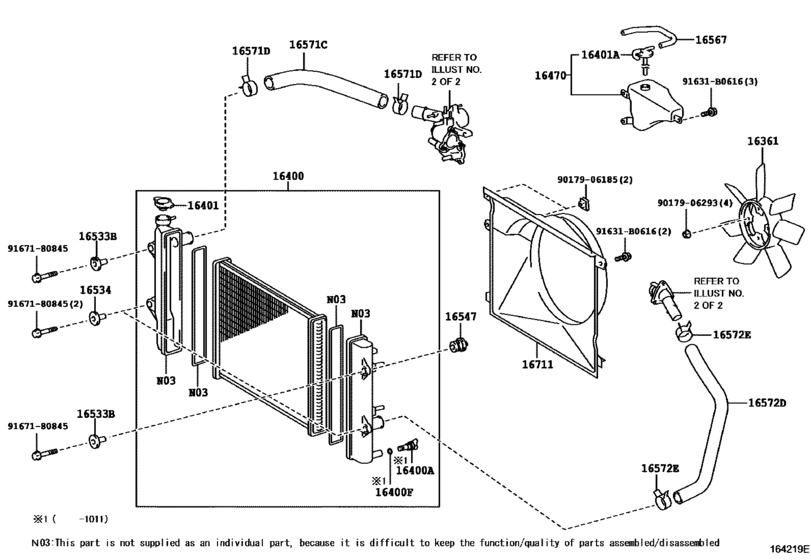

Radiator & Water Outlet ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31060 Fan[01.2006 - 11.2010] 1GRFE..GSJ1# |
16361-31060 |
from US $103.32 |
||
|
16400
|
16400
16400-75451
Radiator Assy
[01.2006 - 11.2010] 1GRFE..GSJ15..MTM |
16400-75451 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-75454 Radiator Assy[01.2006 - 11.2010] 1GRFE..GSJ15..MTM |
16400-75454 |
US $619.12 |
||
|
16400
|
16400
16400-75452
Radiator Assy
[03.2012 - 07.2014] 1GRFE..GSJ15..MTM |
16400-75452 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-75454 Radiator Assy[03.2012 - 07.2014] 1GRFE..GSJ15..MTM |
16400-75454 |
US $619.12 |
||
|
16400A
|
16400A
23322-54010 Plug,air(For Oil Cooler Drain Cock)[01.2006 - 11.2010] 1GRFE..GSJ1# |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[01.2006 - 11.2010] 1GRFE..GSJ1# |
16492-21050 |
from US $2.11 |
||
|
16401
|
16401
16401-46610
Cap Sub-Assy, Radiator
[02.2009 - 11.2010] 1GRFE..GSJ1# |
16401-46610 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-30020 Cap Sub-Assy, Radiator[02.2009 - 11.2010] 1GRFE..GSJ1# |
16401-30020 |
from US $16.31 |
||
|
16401
|
16401
16401-75440
Cap Sub-Assy, Radiator
[01.2006 - 01.2009] 1GRFE..GSJ1# |
16401-75440 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31650 Cap Sub-Assy, Radiator[01.2006 - 01.2009] 1GRFE..GSJ1# |
16401-31650 |
from US $16.97 |
||
|
16401A
|
16401A
16405-50051 Cap Sub-Assy, Radiator Reserve Tank[01.2006 - 11.2010] 1GRFE..GSJ1# |
16405-50051 |
from US $5.77 |
||
|
16470
|
16470
16470-31130 Tank Assy, Radiator ReserveRADIATOR RESERVE [08.2009 - 11.2010] 1GRFE..GSJ1# |
16470-31130 |
from US $45.02 |
||
|
16470
|
16470
16470-50140 Tank Assy, Radiator Reserve[01.2006 - 07.2009] 1GRFE..GSJ1# |
16470-50140 |
from US $65.02 |
||
|
16533B
|
16533B
16533-50090 Support, Radiator, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# NO.1 |
16533-50090 |
from US $5.68 |
||
|
16533B
|
16533B
16534-50050 Support, Radiator, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# NO.2 |
16534-50050 |
from US $5.53 |
||
|
16534
|
16534
16534-50050 Support, Radiator, No.1[01.2006 - 11.2010] 1GRFE..GSJ1# |
16534-50050 |
from US $5.53 |
||
|
16547
|
16547
16547-50010 Bush, Radiator Support, No.1[01.2006 - 11.2010] 1GRFE..GSJ1# |
16547-50010 |
from US $7.33 |
||
|
16567
|
16567
16567-31010 Hose(For Radiator Reserve Tank)[01.2006 - 11.2010] 1GRFE..GSJ1# |
16567-31010 |
from US $5.04 |
||
|
16571C
|
16571C
16571-31130 Hose, Radiator, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# |
16571-31130 |
from US $19.48 |
||
|
16571C
|
16571C
16571-31290
Hose, Radiator, No.1
[08.2009 - 05.2010] 1GRFE..GSJ1# |
16571-31290 |
— | ||
| replacement | |||||
|
16571C
|
16571C
16571-31291 Hose, Radiator, No.1[08.2009 - 05.2010] 1GRFE..GSJ1# |
16571-31291 |
US $15.40 |
||
|
16571C
|
16571C
16571-31291 Hose, Radiator, No.1[06.2010 - 11.2010] 1GRFE..GSJ1# |
16571-31291 |
US $15.40 |
||
|
16571D
|
16571D
90467-37005 Clip(For Water Inlet Hose)[01.2006 - 06.2007] 1GRFE..GSJ1# |
90467-37005 |
from US $3.78 |
||
|
16571D
|
16571D
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[07.2007 - 11.2010] 1GRFE..GSJ1# |
96136-44301 |
from US $5.56 |
||
|
16572D
|
16572D
16572-31170 Hose, Radiator, No.2[01.2006 - 11.2010] 1GRFE..GSJ1# |
16572-31170 |
from US $17.06 |
||
|
16572E
|
16572E
90467-37005 Clip(For Water Inlet Hose)[01.2006 - 06.2007] 1GRFE..GSJ1# |
90467-37005 |
from US $3.78 |
||
|
16572E
|
16572E
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[07.2007 - 11.2010] 1GRFE..GSJ1# |
96136-44301 |
from US $5.56 |
||
|
16711
|
16711
16711-31200 Shroud, Fan[01.2006 - 08.2009] 1GRFE..GSJ1# |
16711-31200 |
from US $111.47 |
||
|
16711
|
16711
16711-31510 Shroud, FanFAN [08.2009 - 11.2010] 1GRFE..GSJ1# |
16711-31510 |
from US $79.89 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.94 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.82 |
||
|
9167180845
|
9167180845
91671-80845 Bolt, No.2(For Alternator) |
91671-80845 |
US $1.24 |
||
