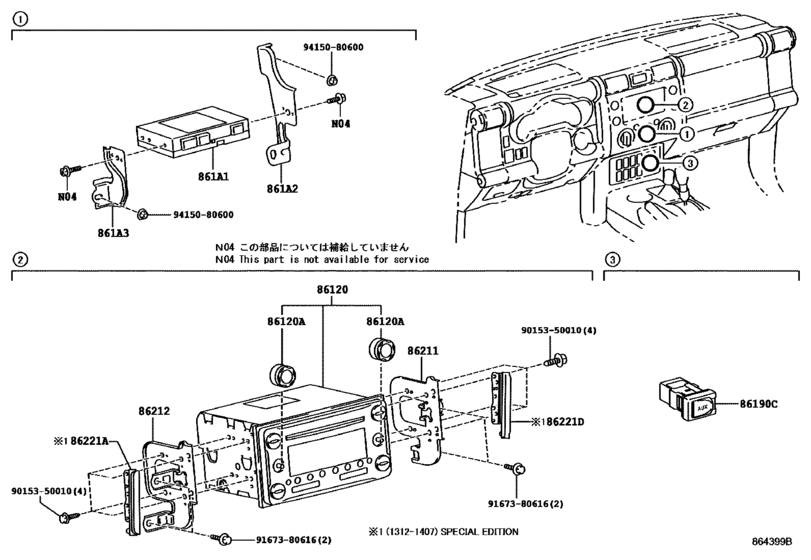

Radio Receiver & Amplifier & Condenser ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-48030 Computer, Multi-Media Interface[11.2010 - 07.2011] GSJ1# |
861A0-48030 |
US $286.83 |
||
|
861A2
|
861A2
861A2-35020
Bracket, Multi-Media Interface, No.1
[11.2010 - 07.2014] GSJ1# |
861A2-35020 |
— | ||
|
861A3
|
861A3
861A3-35020
Bracket, Multi-Media Interface, No.2
[11.2010 - 07.2014] GSJ1# |
861A3-35020 |
— | ||
|
86120
|
86120
86120-35380
Receiver Assy, Radio
[01.2006 - 09.2006] GSJ1# FUJITSU TEN,ID=11816,AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# FUJITSU TEN,ID=11816,AUDIO-AM/FM CD CHANGER, 8SPERAKER; GSJ1# FUJITSU TEN,ID=11816,TYPE B:REFER TO ILLUSTRATION |
86120-35380 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-35381
Receiver Assy, Radio
[01.2006 - 09.2006] GSJ1# FUJITSU TEN,ID=11816,AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# FUJITSU TEN,ID=11816,AUDIO-AM/FM CD CHANGER, 8SPERAKER; GSJ1# FUJITSU TEN,ID=11816,TYPE B:REFER TO ILLUSTRATION |
86120-35381 |
— | ||
|
86120
|
86120
86120-35381
Receiver Assy, Radio
[10.2006 - 07.2007] GSJ1# FUJITSU TEN,ID=11825,AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# FUJITSU TEN,ID=11825,AUDIO-AM/FM CD CHANGER, 8SPERAKER; GSJ1# FUJITSU TEN,ID=11825,TYPE B:REFER TO ILLUSTRATION |
86120-35381 |
— | ||
|
86120
|
86120
86120-35382
Receiver Assy, Radio
[07.2007 - 11.2010] GSJ1# FUJITSU TEN,ID=11828,AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# FUJITSU TEN,ID=11828,AUDIO-AM/FM CD CHANGER, 8SPERAKER; GSJ1# FUJITSU TEN,ID=11828,TYPE B:REFER TO ILLUSTRATION |
86120-35382 |
— | ||
|
86120
|
86120
86120-35400
Receiver Assy, Radio
[01.2006 - 07.2007] GSJ1# FUJITSU TEN,ID=11817; GSJ1# FUJITSU TEN,ID=11817,TYPE A:REFER TO ILLUSTRATION |
86120-35400 |
— | ||
|
86120
|
86120
86120-35401
Receiver Assy, Radio
[07.2007 - 11.2010] GSJ1# FUJITSU TEN,ID=11829; GSJ1# FUJITSU TEN,ID=11829,TYPE A:REFER TO ILLUSTRATION |
86120-35401 |
— | ||
|
86120
|
86120
86120-35600
Receiver Assy, Radio
[11.2010 - 07.2014] GSJ1# FUJITSU TEN,ID=11861,AUDIO-JBL 10SPEAKER WITH(SUB WOOFER) |
86120-35600 |
— | ||
|
86120
|
86120
86120-35610
Receiver Assy, Radio
[11.2010 - 07.2014] GSJ15 FUJITSU TEN,ID=11862,CANADA SPEC&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER) |
86120-35610 |
— | ||
|
86120
|
86120
86120-35620
Receiver Assy, Radio
[11.2010 - 07.2014] GSJ1# PIONEER,ID=P10001 |
86120-35620 |
— | ||
|
86120
|
86120
86120-35630
Receiver Assy, Radio
[11.2010 - 07.2014] GSJ15 PIONEER,ID=P10002,CANADA SPEC |
86120-35630 |
— | ||
|
86120A
|
86120A
90010-22082
Knob, Radio Receiver Switch
[11.2010 - 07.2014] GSJ1# |
90010-22082 |
— | ||
|
86190C
|
86190C
86190-48030 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [11.2010 - 07.2014] GSJ1# |
86190-48030 |
from US $87.13 |
||
|
86190C
|
86190C
86190-53010 Adapter Assy, Stereo Jack, No.1[01.2006 - 11.2010] GSJ1# |
86190-53010 |
US $119.39 |
||
|
86211
|
86211
86211-35060 Bracket, Radio, No.1RADIO, NO.1 [01.2006 - 07.2007] GSJ1# |
86211-35060 |
US $10.05 |
||
|
86211
|
86211
86211-35061 Bracket, Radio, No.1RADIO, NO.1 [07.2007 - 11.2010] GSJ1# |
86211-35061 |
US $6.41 |
||
|
86212
|
86212
86212-35060 Bracket, Radio, No.2RADIO, NO.2 [01.2006 - 07.2007] GSJ1# |
86212-35060 |
US $10.05 |
||
|
86212
|
86212
86212-35061 Bracket, Radio, No.2RADIO, NO.2 [07.2007 - 11.2010] GSJ1# |
86212-35061 |
US $6.41 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
