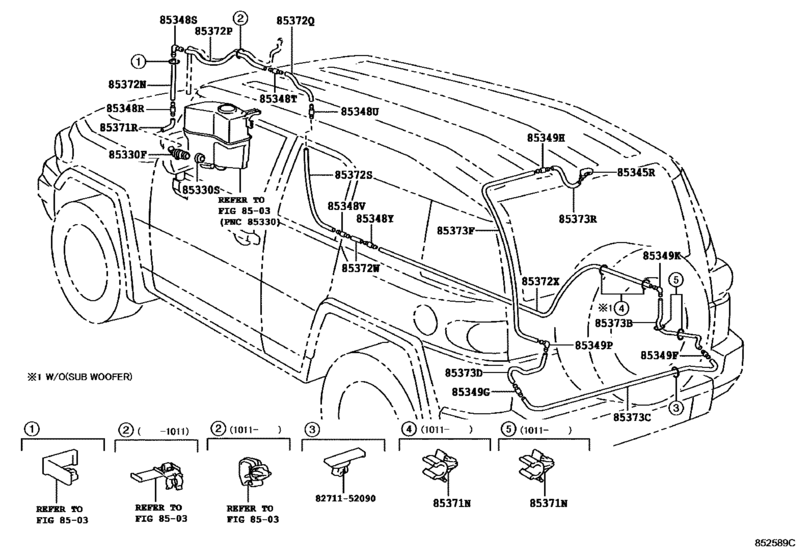

Rear Washer ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85330F
|
85330F
85330-60180 Motor Assy, Rear Washer[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85330-60180 |
from US $91.28 |
||
|
85330S
|
85330S
85336-60300 Bush, Windshield Washer Jar[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85336-60300 |
from US $1.92 |
||
|
85345R
|
85345R
85391-35030
Nozzle, Rear Washer
[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85391-35030 |
— | ||
|
85348R
|
85348R
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85348S
|
85348S
85355-20200 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85355-20200 |
from US $0.95 |
||
|
85348T
|
85348T
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85348U
|
85348U
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85348V
|
85348V
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85348Y
|
85348Y
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85349F
|
85349F
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85349G
|
85349G
85375-10260 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85375-10260 |
from US $1.41 |
||
|
85349H
|
85349H
85349-89122 Valve Sub-Assy, Washer[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85349-89122 |
from US $1.25 |
||
|
85349K
|
85349K
85355-20200 Joint, Windshield Washer Hose, No.1[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE |
85355-20200 |
from US $0.95 |
||
|
85349P
|
85349P
85355-20200 Joint, Windshield Washer Hose, No.1[08.2009 - 11.2010] GSJ15 CANADA SPEC; GSJ1# CONVENIENCE PACKAGE; GSJ15 CANADA SPEC&CONVENIENCE PACKAGE |
85355-20200 |
from US $0.95 |
||
|
85371N
|
85371N
85371-50020 Clamp[11.2010 - 07.2014] GSJ15 CANADA SPEC&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); GSJ15 CANADA SPEC&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER); GSJ1# CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER) |
85371-50020 |
US $3.40 |
||
|
85371R
|
85371R
85336-12230 Joint, Windshield Washer Elbow, No.1[01.2006 - 08.2009] GSJ1# L=15,CONVENIENCE PACKAGE |
85336-12230 |
US $3.86 |
||
|
85371R
|
85371R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=220,CANADA SPEC; GSJ1# *H,L=220,CONVENIENCE PACKAGE; GSJ15 *H,L=220,CANADA SPEC&CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85372N
|
85372N
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=210,CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85372N
|
85372N
90099-62068 Hose, Windshield Washer (From Joint To Joint), No.1[02.2011 - 07.2014] GSJ15 L=250,CANADA SPEC; GSJ15 L=250,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; GSJ15 L=250,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB W OOFER); GSJ15 L=250,CANADA SPEC&CONVENIENCE PACKAGE; GSJ15 L=2 |
90099-62068 |
US $6.78 |
||
|
85372P
|
85372P
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=710,CANADA SPEC; GSJ1# *H,L=710,CONVENIENCE PACKAGE; GSJ15 *H,L=710,CANADA SPEC&CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85372P
|
85372P
90099-62073
Hose, Windshield Washer (From Joint To Joint), No.2
[02.2011 - 07.2014] GSJ15 L=710,CANADA SPEC; GSJ15 L=710,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; GSJ15 L=710,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB W OOFER); GSJ15 L=710,CANADA SPEC&CONVENIENCE PACKAGE; GSJ15 L=7 |
90099-62073 |
— | ||
|
85372P
|
85372P
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=520,CONVENIENCE PACKAGE |
90446-07001 |
from US $1.75 |
||
|
85372Q
|
85372Q
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=50,CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85372Q
|
85372Q
90099-62071
Hose, Rear Washer (From Joint To Joint), No.3
[02.2011 - 07.2014] GSJ15 L=210,CANADA SPEC; GSJ15 L=210,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; GSJ15 L=210,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB W OOFER); GSJ15 L=210,CANADA SPEC&CONVENIENCE PACKAGE; GSJ15 L=2 |
90099-62071 |
— | ||
|
85372S
|
85372S
90099-33589 Hose, Rear Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=2680,CONVENIENCE PACKAGE |
90099-33589 |
from US $3.84 |
||
|
85372S
|
85372S
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=520,CANADA SPEC; GSJ1# *H,L=520,CONVENIENCE PACKAGE; GSJ15 *H,L=520,CANADA SPEC&CONVENIENCE PACKAGE |
90446-07001 |
from US $1.75 |
||
|
85372W
|
85372W
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=460,CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85372W
|
85372W
90099-62062
Hose, Windshield Washer (From Joint To Joint), No.1
[02.2011 - 07.2014] GSJ15 L=50,CANADA SPEC; GSJ15 L=50,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; GSJ15 L=50,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB WO OFER); GSJ15 L=50,CANADA SPEC&CONVENIENCE PACKAGE; GSJ15 L=50,CA |
90099-62062 |
— | ||
|
85372X
|
85372X
90099-33589 Hose, Rear Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=2680,CANADA SPEC; GSJ1# *H,L=2680,CONVENIENCE PACKAGE; GSJ15 *H,L=2680,CANADA SPEC&CONVENIENCE PACKAGE |
90099-33589 |
from US $3.84 |
||
|
85372X
|
85372X
90446-07001 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=1440,CONVENIENCE PACKAGE |
90446-07001 |
from US $1.75 |
||
|
85373B
|
85373B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 08.2009] GSJ1# *H,L=590,CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85373B
|
85373B
90099-62072
Hose, Rear Washer(From Joint To Joint), No.7
[02.2011 - 07.2014] GSJ15 L=460,CANADA SPEC; GSJ15 L=460,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE; GSJ15 L=460,CANADA SPEC&IMAGE PACKAGE&CONVENIENCE PACKAGE&AUDIO-JBL 10SPEAKER WITH(SUB W OOFER); GSJ15 L=460,CANADA SPEC&CONVENIENCE PACKAGE; GSJ15 L=4 |
90099-62072 |
— | ||
|
85373C
|
85373C
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=1440,CANADA SPEC; GSJ1# *H,L=1440,CONVENIENCE PACKAGE; GSJ15 *H,L=1440,CANADA SPEC&CONVENIENCE PACKAGE |
90446-07001 |
from US $1.75 |
||
|
85373D
|
85373D
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=590,CANADA SPEC; GSJ1# *H,L=590,CONVENIENCE PACKAGE; GSJ15 *H,L=590,CANADA SPEC&CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
85373F
|
85373F
90099-33224
Hose, Windshield Washer (From Motor To Joint)
[01.2006 - 11.2010] GSJ1# |
90099-33224 |
— | ||
|
85373R
|
85373R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2006 - 11.2010] GSJ1# *H,L=310,CONVENIENCE PACKAGE |
90099-33080 |
from US $5.19 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.87 |
