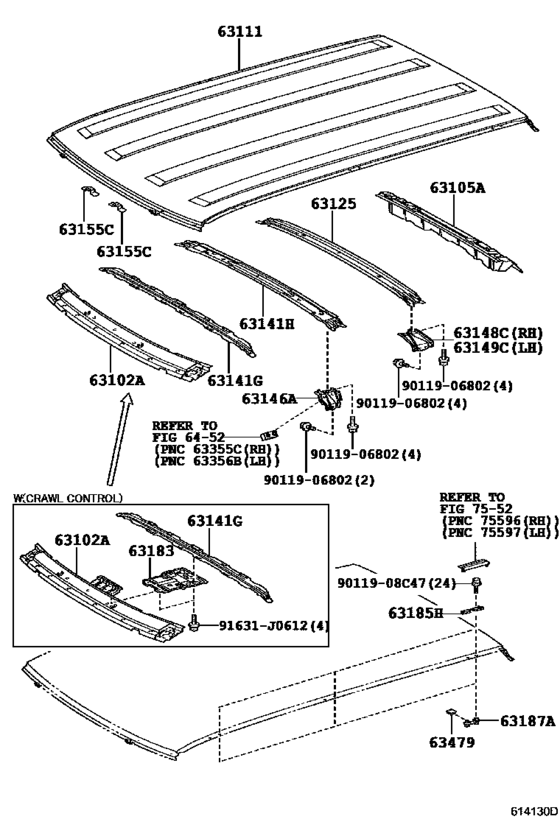

Roof Panel & Back Panel ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-35050 Panel Sub-Assy, Windshield HeaderWINDSHIELD HEADER [01.2006 - 11.2010] GSJ1# |
63102-35050 |
US $96.10 |
||
|
63105A
|
63105A
63105-35080
Frame Sub-Assy, Back Door Opening
[01.2006 - 07.2009] GSJ1# |
63105-35080 |
— | ||
| replacement | |||||
|
63105A
|
63105A
63105-35082 Frame Sub-Assy, Back Door OpeningBACK DOOR OPENING [01.2006 - 07.2009] GSJ1# |
63105-35082 |
US $96.10 |
||
|
63105A
|
63105A
63105-35081
Frame Sub-Assy, Back Door Opening
[08.2009 - 12.2009] GSJ1# |
63105-35081 |
— | ||
| replacement | |||||
|
63105A
|
63105A
63105-35082 Frame Sub-Assy, Back Door OpeningBACK DOOR OPENING [08.2009 - 12.2009] GSJ1# |
63105-35082 |
US $96.10 |
||
|
63105A
|
63105A
63105-35082 Frame Sub-Assy, Back Door OpeningBACK DOOR OPENING [01.2010 - 11.2010] GSJ1# |
63105-35082 |
US $96.10 |
||
|
63111
|
63111
63111-35280 Panel, RoofROOF [01.2006 - 11.2010] GSJ1# |
63111-35280 |
from US $676.89 |
||
|
63111
|
63111
63111-35330
Panel, Roof
[11.2010 - 07.2014] GSJ1# |
63111-35330 |
— | ||
|
63125
|
63125
63125-35030 Reinforcement, Roof Panel, No.2ROOF PANEL, NO.2 [01.2006 - 11.2010] GSJ1# |
63125-35030 |
US $59.55 |
||
|
63141G
|
63141G
63141-35050 Reinforcement, Roof Panel, No.1ROOF PANEL, NO.1 [01.2006 - 11.2010] GSJ1# |
63141-35050 |
US $30.87 |
||
|
63141H
|
63141H
63103-35020 Reinforcement, Roof Panel, CenterROOF PANEL, CENTER [01.2006 - 11.2010] GSJ1# |
63103-35020 |
US $84.45 |
||
|
63146A
|
63146A
63146-35010 Bracket, Roof Panel Reinforcement, No.1ROOF PANEL REINFORCEMENT, NO.1 [01.2006 - 11.2010] GSJ1# |
63146-35010 |
US $18.05 |
||
|
63148C
|
63148C
63148-35010 Reinforcement, Roof Panel Side, RhROOF PANEL SIDE, RH [01.2006 - 11.2010] GSJ1# |
63148-35010 |
US $18.35 |
||
|
63149C
|
63149C
63149-35010 Reinforcement, Roof Panel Side, LhROOF PANEL SIDE, LH [01.2006 - 11.2010] GSJ1# |
63149-35010 |
US $18.35 |
||
|
63155C
|
63155C
63155-35010 Retainer, Roof Panel SupportROOF PANEL SUPPORT [01.2006 - 11.2010] GSJ1# |
63155-35010 |
US $2.80 |
||
|
63185H
|
63185H
63185-42020 Bracket, Roof Rack, Front Rh[01.2006 - 11.2010] GSJ1# |
63185-42020 |
from US $2.38 |
||
|
63187A
|
63187A
63187-35020 Bracket, Roof Rack, Rear[01.2006 - 11.2010] GSJ1# |
63187-35020 |
from US $3.23 |
||
|
63479
|
63479
63479-42010 Retainer, Roof Inner Rack[01.2006 - 11.2010] GSJ1# |
63479-42010 |
US $1.97 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011908C47
|
9011908C47
90119-08C47 BOLT WWASHER |
90119-08C47 |
from US $0.65 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
