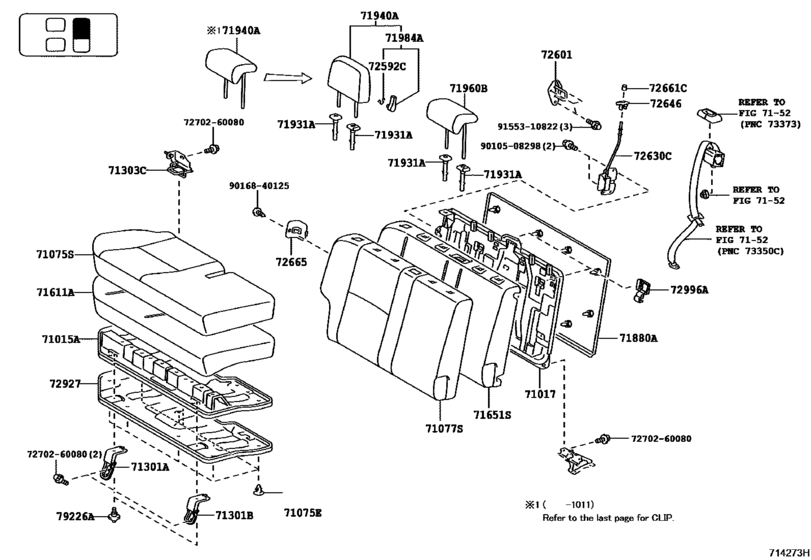

Seat & Seat Track ([01.2006 - ] REAR SEAT (RH) (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015A
|
71015A
71015-35090 Frame Sub-Assy, Rear Seat Cushion, RhREAR SEAT CUSHION, RH [01.2006 - 11.2010] GSJ1# |
71015-35090 |
US $125.22 |
||
|
71017
|
71017
71017-35220 Frame Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, RH [01.2006 - 11.2010] GSJ1# |
71017-35220 |
US $246.06 |
||
|
71075E
|
71075E
71769-60010-B6 Clip(For Rear Seat)[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71769-60010-B6 |
US $2.91 |
||
|
71075S
|
71075S
71075-35A30-B0
Cover, Rear Seat Cushion, Rh (For Separate Type)
[01.2006 - 11.2006] GSJ1# DK.GRAY,TRIM1# |
71075-35A30-B0 |
— | ||
| replacement | |||||
|
71075S
|
71075S
71075-35A33-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [01.2006 - 11.2006] GSJ1# DK.GRAY,TRIM1# |
71075-35A33-B1 |
US $361.09 |
||
|
71075S
|
71075S
71075-35A31-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)[12.2006 - 06.2007] GSJ1# DK.GRAY,TRIM1# |
71075-35A31-B0 |
US $433.89 |
||
| replacement | |||||
|
71075S
|
71075S
71075-35A33-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [12.2006 - 06.2007] GSJ1# DK.GRAY,TRIM1# |
71075-35A33-B1 |
US $361.09 |
||
|
71075S
|
71075S
71075-35A33-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [07.2007 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71075-35A33-B1 |
US $361.09 |
||
|
71075S
|
71075S
71075-35A33-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[11.2010 - 07.2013] GSJ1# DK.GRAY,TRIM1# |
71075-35A33-B3 |
US $299.94 |
||
| replacement | |||||
|
71075S
|
71075S
71075-35A34-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[11.2010 - 07.2013] GSJ1# DK.GRAY,TRIM1# |
71075-35A34-B3 |
US $272.27 |
||
|
71075S
|
71075S
71075-35A33-B4
Cover, Rear Seat Cushion, Rh (For Separate Type)
[10.2012 - 03.2013] GSJ15 OFF ROAD PACKAGE&CONVENIENCE PACKAGE,CEMENT GRAY ME.,TRIM11 |
71075-35A33-B4 |
— | ||
|
71075S
|
71075S
71075-35A33-D0 Cover, Rear Seat Cushion, Rh (For Separate Type)[12.2011 - 05.2012] GSJ15 SPECIAL EDITION,RED,TRIM11 |
71075-35A33-D0 |
US $361.09 |
||
|
71075S
|
71075S
71075-35A33-E0
Cover, Rear Seat Cushion, Rh (For Separate Type)
[09.2009 - 01.2010] GSJ15 SPECIAL EDITION,BEIGE,4U0 |
71075-35A33-E0 |
— | ||
|
71075S
|
71075S
71075-35A33-G0
Cover, Rear Seat Cushion, Rh (For Separate Type)
[01.2011 - 07.2011] GSJ15 SPECIAL EDITION,DK.GREEN |
71075-35A33-G0 |
— | ||
|
71075S
|
71075S
71075-35A34-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[08.2013 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71075-35A34-B3 |
US $272.27 |
||
|
71075S
|
71075S
71075-35A34-B4
Cover, Rear Seat Cushion, Rh (For Separate Type)
[02.2014 - 07.2014] GSJ15 OFF ROAD PACKAGE&CONVENIENCE PACKAGE,CEMENT GRAY,TRIM11 |
71075-35A34-B4 |
— | ||
|
71077S
|
71077S
71077-35A40-B0
Cover, Rear Seat Back, Rh (For Separate Type)
[01.2006 - 11.2006] GSJ1# DK.GRAY,TRIM1# |
71077-35A40-B0 |
— | ||
| replacement | |||||
|
71077S
|
71077S
71077-35A43-B1
Cover, Rear Seat Back, Rh (For Separate Type)
[01.2006 - 11.2006] GSJ1# DK.GRAY,TRIM1# |
71077-35A43-B1 |
— | ||
|
71077S
|
71077S
71077-35A41-B0 Cover, Rear Seat Back, Rh (For Separate Type)[12.2006 - 06.2007] GSJ1# DK.GRAY,TRIM1# |
71077-35A41-B0 |
US $524.16 |
||
| replacement | |||||
|
71077S
|
71077S
71077-35A43-B1
Cover, Rear Seat Back, Rh (For Separate Type)
[12.2006 - 06.2007] GSJ1# DK.GRAY,TRIM1# |
71077-35A43-B1 |
— | ||
|
71077S
|
71077S
71077-35A43-B1
Cover, Rear Seat Back, Rh (For Separate Type)
[07.2007 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71077-35A43-B1 |
— | ||
|
71077S
|
71077S
71077-35A43-B2 Cover, Rear Seat Back, Rh (For Separate Type)[11.2010 - 07.2013] GSJ1# DK.GRAY,TRIM1# |
71077-35A43-B2 |
US $364 |
||
| replacement | |||||
|
71077S
|
71077S
71077-35A44-B2 Cover, Rear Seat Back, Rh (For Separate Type)[11.2010 - 07.2013] GSJ1# DK.GRAY,TRIM1# |
71077-35A44-B2 |
US $330.51 |
||
|
71077S
|
71077S
71077-35A43-B3
Cover, Rear Seat Back, Rh (For Separate Type)
[10.2012 - 03.2013] GSJ15 OFF ROAD PACKAGE&CONVENIENCE PACKAGE,CEMENT GRAY ME.,TRIM11 |
71077-35A43-B3 |
— | ||
| replacement | |||||
|
71077S
|
71077S
71077-35A44-B3
Cover, Rear Seat Back, Rh (For Separate Type)
[10.2012 - 03.2013] GSJ15 OFF ROAD PACKAGE&CONVENIENCE PACKAGE,CEMENT GRAY ME.,TRIM11 |
71077-35A44-B3 |
— | ||
|
71077S
|
71077S
71077-35A43-D0 Cover, Rear Seat Back, Rh (For Separate Type)[12.2011 - 05.2012] GSJ15 SPECIAL EDITION,RED,TRIM11 |
71077-35A43-D0 |
US $436.80 |
||
|
71077S
|
71077S
71077-35A43-E0
Cover, Rear Seat Back, Rh (For Separate Type)
[09.2009 - 01.2010] GSJ15 SPECIAL EDITION,BEIGE,4U0 |
71077-35A43-E0 |
— | ||
|
71077S
|
71077S
71077-35A43-G1
Cover, Rear Seat Back, Rh (For Separate Type)
[01.2011 - 07.2011] GSJ15 SPECIAL EDITION,DK.GREEN |
71077-35A43-G1 |
— | ||
|
71077S
|
71077S
71077-35A44-B2 Cover, Rear Seat Back, Rh (For Separate Type)[08.2013 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71077-35A44-B2 |
US $330.51 |
||
|
71077S
|
71077S
71077-35A44-B3
Cover, Rear Seat Back, Rh (For Separate Type)
[02.2014 - 07.2014] GSJ15 OFF ROAD PACKAGE&CONVENIENCE PACKAGE,CEMENT GRAY,TRIM11 |
71077-35A44-B3 |
— | ||
|
71301A
|
71301A
71301-35080 Hinge Sub-Assy, Rear Seat CushionREAR SEAT CUSHION [01.2006 - 11.2010] GSJ1# |
71301-35080 |
US $23.73 |
||
|
71301B
|
71301B
71301-35090 Hinge Sub-Assy, Rear No.1 Seat, RhREAR NO.1 SEAT, RH [01.2006 - 11.2010] GSJ1# |
71301-35090 |
US $22.13 |
||
|
71303C
|
71303C
71303-35030 Hinge Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, RH [01.2006 - 11.2010] GSJ1# |
71303-35030 |
US $27.78 |
||
|
71611A
|
71611A
71611-35090 Pad, Rear Seat Cushion, RhREAR SEAT CUSHION, RH [01.2006 - 11.2010] GSJ1# |
71611-35090 |
US $164.53 |
||
|
71651S
|
71651S
71651-35080 Pad, Rear Seat Back, Rh(For Separate Type)REAR SEAT BACK, RH(FOR SEPARATE TYPE) [01.2006 - 11.2010] GSJ1# |
71651-35080 |
US $164.53 |
||
|
71880A
|
71880A
71880-35020-B0
Carpet Assy, Rear Seat Back Board, Rh
[01.2006 - 09.2010] GSJ1# DK.GRAY,TRIM1# |
71880-35020-B0 |
— | ||
| replacement | |||||
|
71880A
|
71880A
71880-35021-B0 Carpet Assy, Rear Seat Back Board, Rh[01.2006 - 09.2010] GSJ1# DK.GRAY,TRIM1# |
71880-35021-B0 |
US $139.78 |
||
|
71880A
|
71880A
71880-35021-B0 Carpet Assy, Rear Seat Back Board, Rh[10.2010 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71880-35021-B0 |
US $139.78 |
||
|
71931A
|
71931A
71930-42020-B4 Support Assy, Front Seat Headrest[01.2006 - 04.2007] GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
71930-42020-B4 |
US $16.42 |
||
|
71931A
|
71931A
71930-48010-B3 Support, Front Seat HeadrestFRONT SEAT HEADREST [11.2010 - 07.2014] GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#,RH & LH |
71930-48010-B3 |
US $11.65 |
||
|
71931A
|
71931A
71930-52030-B0 Support Assy, Front Seat Headrest[05.2007 - 11.2010] GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
71930-52030-B0 |
from US $10.39 |
||
|
71931A
|
71931A
71931-42020-B4 Support Assy, Front Seat Headrest[11.2010 - 07.2014] GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#,CENTER |
71931-42020-B4 |
US $8.60 |
||
|
71940A
|
71940A
71940-35480-B0 Headrest Assy, Rear SeatREAR SEAT [01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71940-35480-B0 |
US $157.25 |
||
|
71940A
|
71940A
71940-35641-B0 Headrest Assy, Rear Seat[11.2010 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71940-35641-B0 |
US $152.01 |
||
|
71960B
|
71960B
71960-35040-B0
Headrest Assy, Rear Seat, Center
[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
71960-35040-B0 |
— | ||
|
71960B
|
71960B
71960-35041-B1
Headrest Assy, Rear Seat, Center
[11.2010 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71960-35041-B1 |
— | ||
| replacement | |||||
|
71960B
|
71960B
71960-35220-B0 Headrest Assy, Rear Seat, Center[11.2010 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71960-35220-B0 |
US $241.11 |
||
|
71984A
|
71984A
71984-60010-B3
Handle, Rear Seat Headrest
[11.2010 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71984-60010-B3 |
— | ||
| replacement | |||||
|
71984A
|
71984A
71984-60010-C0 Handle, Rear Seat Headrest (Black)[11.2010 - 07.2014] GSJ1# DK.GRAY,TRIM1# |
71984-60010-C0 |
US $14.33 |
||
|
72592C
|
72592C
90520-01006 Ring, Shaft Snap(For Lumber Support Lever)[11.2010 - 07.2014] GSJ1# |
90520-01006 |
US $1.43 |
||
|
72601
|
72601
72601-35020 Striker Sub-Assy, Rear Seat Lock[01.2006 - 06.2007] GSJ1# |
72601-35020 |
US $35.38 |
||
| replacement | |||||
|
72601
|
72601
72601-35022 Striker Sub-Assy, Rear Seat Lock[01.2006 - 06.2007] GSJ1# |
72601-35022 |
US $22.13 |
||
|
72601
|
72601
72601-35021 Striker Sub-Assy, Rear Seat Lock[07.2007 - 09.2010] GSJ1# |
72601-35021 |
US $29.41 |
||
| replacement | |||||
|
72601
|
72601
72601-35022 Striker Sub-Assy, Rear Seat Lock[07.2007 - 09.2010] GSJ1# |
72601-35022 |
US $22.13 |
||
|
72601
|
72601
72601-35022 Striker Sub-Assy, Rear Seat Lock[10.2010 - 11.2010] GSJ1# |
72601-35022 |
US $22.13 |
||
|
72630C
|
72630C
72630-35050
Lock Assy, Rear Seat Back, Rh
[01.2006 - 09.2007] GSJ1# |
72630-35050 |
— | ||
| replacement | |||||
|
72630C
|
72630C
72630-35052 Lock Assy, Rear Seat Back, Rh[01.2006 - 09.2007] GSJ1# |
72630-35052 |
US $40.77 |
||
|
72630C
|
72630C
72630-35051 Lock Assy, Rear Seat Back, Rh[09.2007 - 11.2010] GSJ1# |
72630-35051 |
US $53.87 |
||
| replacement | |||||
|
72630C
|
72630C
72630-35052 Lock Assy, Rear Seat Back, Rh[09.2007 - 11.2010] GSJ1# |
72630-35052 |
US $40.77 |
||
|
72630C
|
72630C
72630-35052 Lock Assy, Rear Seat Back, Rh[09.2012 - 07.2014] GSJ1# |
72630-35052 |
US $40.77 |
||
|
72646
|
72646
72646-33020-B6 Grommet, Rear Seat Back Stop Button[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
72646-33020-B6 |
US $13.45 |
||
|
72661C
|
72661C
72661-35010-B1 Button, Rear Seat Back Lock Release[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
72661-35010-B1 |
from US $4.56 |
||
|
72665
|
72665
72665-35020-B1 Cover, Rear Seat Back Lock, Rh[01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
72665-35020-B1 |
US $11.94 |
||
|
72927
|
72927
72927-35040-B0 Cover, Rear Seat Cushion Under, RhREAR SEAT CUSHION UNDER, RH [01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
72927-35040-B0 |
US $15.14 |
||
|
72996A
|
72996A
72996-35040-B1
Cover, Rear Seat Back
[01.2006 - 08.2007] GSJ1# DK.GRAY,TRIM1# |
72996-35040-B1 |
— | ||
| replacement | |||||
|
72996A
|
72996A
72996-35041-B1 Cover, Rear Seat Back[01.2006 - 08.2007] GSJ1# DK.GRAY,TRIM1# |
72996-35041-B1 |
US $7.69 |
||
|
72996A
|
72996A
72996-35041-B1 Cover, Rear Seat Back[09.2007 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
72996-35041-B1 |
US $7.69 |
||
|
79226A
|
79226A
79226-35010 Stopper, Rear No.1 Seat CushionREAR NO.1 SEAT CUSHION [01.2006 - 11.2010] GSJ1# |
79226-35010 |
US $6.70 |
||
|
7270260080
|
7270260080
72702-60080 Bracket Sub-assy, Rear Seat Back Striker |
72702-60080 |
US $2.04 |
||
|
9010508298
|
9010508298
90105-08298 New Genuine Part |
90105-08298 |
US $0.87 |
||
|
9016840125
|
9016840125
90168-40125 SCREW TAPPING |
90168-40125 |
US $1.08 |
||
|
9155310822
|
9155310822
91553-10822 New Genuine Part |
91553-10822 |
US $1.46 |
||
