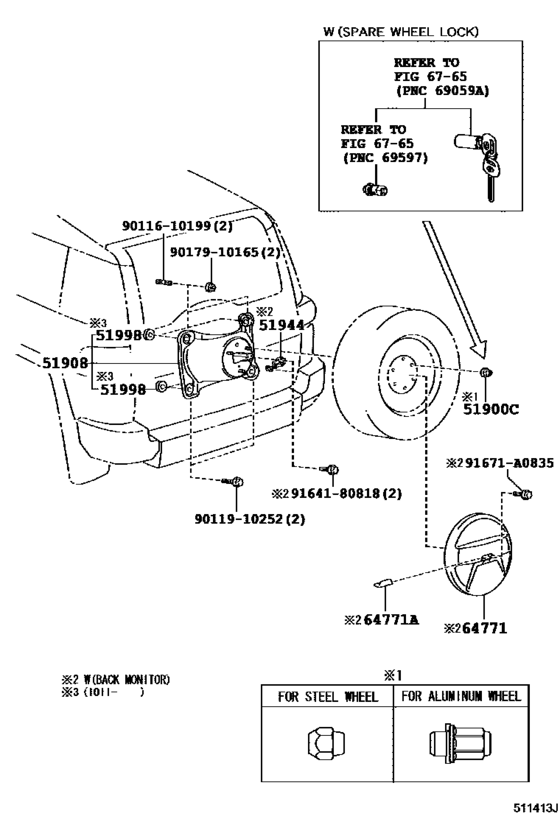

Spare Wheel Carrier ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900C
|
51900C
90942-01058 Wheel Nut[01.2006 - 11.2010] GSJ1# TIRE & DISC WHEEL-P265/70R17 ALUMINUM,FOR ALUMINUM WHEEL |
90942-01058 |
from US $5.23 |
||
|
51900C
|
51900C
90942-01104 Nut, Hub (For Axle)[01.2006 - 11.2010] GSJ1# FOR STEEL WHEEL |
90942-01104 |
from US $3.86 |
||
|
51908
|
51908
51908-35030 Bracket Sub-Assy, Spare Wheel Carrier[01.2006 - 05.2007] GSJ1# |
51908-35030 |
US $203.84 |
||
| replacement | |||||
|
51908
|
51908
51908-35032 Bracket Sub-Assy, Spare Wheel Carrier[01.2006 - 05.2007] GSJ1# |
51908-35032 |
from US $125.59 |
||
|
51908
|
51908
51908-35031 Bracket Sub-Assy, Spare Wheel Carrier[06.2007 - 03.2008] GSJ1# |
51908-35031 |
US $203.84 |
||
| replacement | |||||
|
51908
|
51908
51908-35032 Bracket Sub-Assy, Spare Wheel Carrier[06.2007 - 03.2008] GSJ1# |
51908-35032 |
from US $125.59 |
||
|
51908
|
51908
51908-35032 Bracket Sub-Assy, Spare Wheel Carrier[04.2008 - 11.2010] GSJ1# |
51908-35032 |
from US $125.59 |
||
|
51908
|
51908
51908-35040 Bracket Sub-Assy, Spare Wheel CarrierSPARE WHEEL CARRIER [08.2008 - 11.2010] GSJ1# CONVENIENCE PACKAGE; GSJ15..ATM MEXICO SPEC&CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/75R16 ALUMINUM; GSJ15 CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS); GSJ1# CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/70R17 |
51908-35040 |
from US $132.84 |
||
|
51944
|
51944
51944-35040 Bracket, Spare Wheel Carrier, No.2SPARE WHEEL CARRIER, NO.2 [08.2008 - 11.2010] GSJ1# CONVENIENCE PACKAGE; GSJ15..ATM MEXICO SPEC&CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/75R16 ALUMINUM; GSJ15 CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/75R16 ALUMI,W(*TPMS); GSJ1# CONVENIENCE PACKAGE&TIRE & DISC WHEEL-P265/70R17 |
51944-35040 |
from US $18.35 |
||
|
51998
|
51998
51998-35020 Pad, Spare Wheel Bracket[11.2010 - 07.2014] GSJ1# |
51998-35020 |
US $1.08 |
||
|
64771
|
64771
64771-35030 Cover, Spare WheelSPARE WHEEL [08.2008 - 09.2010] GSJ1# CONVENIENCE PACKAGE |
64771-35030 |
from US $186.05 |
||
|
64771
|
64771
64771-35031 Cover, Spare Wheel[09.2010 - 10.2010] GSJ1# CONVENIENCE PACKAGE |
64771-35031 |
US $212.58 |
||
| replacement | |||||
|
64771
|
64771
64771-35032 Cover, Spare Wheel[09.2010 - 10.2010] GSJ1# CONVENIENCE PACKAGE |
64771-35032 |
from US $207.71 |
||
|
64771
|
64771
64771-35032 Cover, Spare Wheel[11.2010 - 08.2012] GSJ1# CONVENIENCE PACKAGE&BACK MONITOR-WITH |
64771-35032 |
from US $207.71 |
||
|
64771
|
64771
64771-35040 Cover, Spare WheelSPARE WHEEL [09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
64771-35040 |
US $190.40 |
||
|
64771A
|
64771A
64773-35010
Cover, Spare Wheel
[08.2008 - 09.2010] GSJ1# CONVENIENCE PACKAGE |
64773-35010 |
— | ||
|
64771A
|
64771A
64773-35011 Cover, Spare Wheel[09.2010 - 10.2010] GSJ1# CONVENIENCE PACKAGE |
64773-35011 |
US $12.08 |
||
| replacement | |||||
|
64771A
|
64771A
64773-35012 Cover, Spare Wheel[09.2010 - 10.2010] GSJ1# CONVENIENCE PACKAGE |
64773-35012 |
from US $9.35 |
||
|
64771A
|
64771A
64773-35012 Cover, Spare Wheel[11.2010 - 08.2012] GSJ1# CONVENIENCE PACKAGE&BACK MONITOR-WITH |
64773-35012 |
from US $9.35 |
||
|
64771A
|
64771A
64773-35020 Cover, Spare WheelSPARE WHEEL [09.2009 - 01.2010] GSJ15 SPECIAL EDITION |
64773-35020 |
US $12.01 |
||
|
91671A0835
|
91671A0835
91671-A0835 BOLT FLANGE |
91671-A0835 |
from US $0.91 |
||
|
9011610199
|
9011610199
90116-10199 BOLT STUD |
90116-10199 |
US $2.51 |
||
|
9011910252
|
9011910252
90119-10252 BOLT |
90119-10252 |
US $4.84 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.76 |
||
