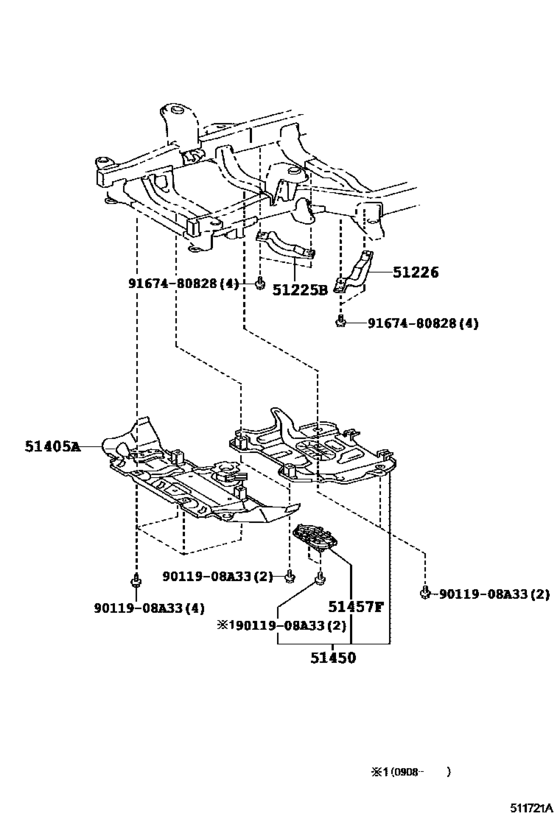

Suspension Crossmember & Under Cover ([01.2006 - ] (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51225B
|
51225B
51225-35040 Bracket, Front Suspension Member, Rh[01.2006 - 11.2010] GSJ1# |
51225-35040 |
from US $70 |
||
|
51226
|
51226
51226-35060 Bracket, Front Suspension Member, Lh[01.2006 - 11.2010] GSJ1# |
51226-35060 |
from US $69.69 |
||
|
51405A
|
51405A
51405-35101 Cover Sub-Assy, Engine Under, No.1[01.2006 - 08.2009] GSJ15 |
51405-35101 |
from US $260.02 |
||
|
51405A
|
51405A
51405-60210 Cover Sub-Assy, Engine Under, No.1ENGINE UNDER, NO.1 [08.2009 - 11.2010] GSJ1# |
51405-60210 |
from US $215.04 |
||
|
51450
|
51450
51450-35010 Cover Assy, Engine Under, Rear[01.2006 - 08.2009] GSJ1# |
51450-35010 |
from US $148.11 |
||
|
51450
|
51450
51450-60050 Cover Assy, Engine Under, RearENGINE UNDER, REAR [08.2009 - 11.2010] GSJ1# |
51450-60050 |
from US $128.71 |
||
|
51457F
|
51457F
51457-35030 Seal, Engine Under Cover, No.3[01.2006 - 08.2009] GSJ1# |
51457-35030 |
from US $15.20 |
||
|
51457F
|
51457F
51457-60030 Seal, Engine Under CoverENGINE UNDER COVER [08.2009 - 11.2010] GSJ1# |
51457-60030 |
from US $16.95 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.76 |
||
|
9167480828
|
9167480828
91674-80828 BOLT, FLANGE |
91674-80828 |
US $1.97 |
