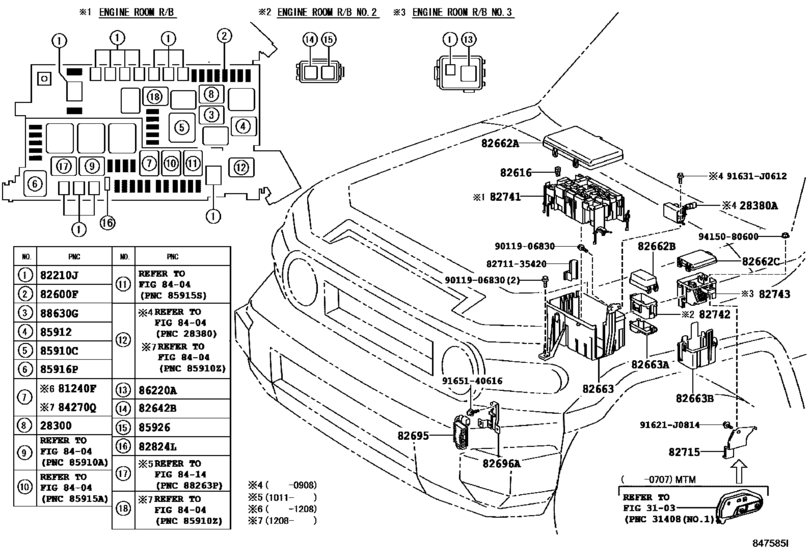

Switch & Relay & Computer ([01.2006 - ] ENGINE ROOM (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[01.2006 - 11.2010] 1GRFE..GSJ1# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[01.2006 - 11.2010] 1GRFE..GSJ1# |
28300-21020 |
from US $44.86 |
||
|
28380A
|
28380A
23080-31060
Resister, Fuel Pump
[01.2006 - 08.2009] 1GRFE..GSJ1# |
23080-31060 |
— | ||
|
81240F
|
81240F
90987-02027 Relay[01.2006 - 11.2010] GSJ1# |
90987-02027 |
from US $47.82 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[01.2006 - 11.2010] GSJ1# 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[01.2006 - 11.2010] GSJ1# 80A,TERMINAL:MALE |
90982-08203 |
from US $7.09 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[01.2006 - 11.2010] GSJ1# 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[01.2006 - 11.2010] GSJ1# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
90982-08280 |
from US $3.78 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[01.2006 - 11.2010] GSJ1# 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[01.2006 - 11.2010] GSJ1# 50A,TERMINAL:FEMALE |
90982-08282 |
US $7.88 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[01.2006 - 11.2010] GSJ1# 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08283 |
from US $1.35 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.2006 - 11.2010] GSJ1# 7.5A,MINI FUSE |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.2006 - 11.2010] GSJ1# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.2006 - 11.2010] GSJ1# 15A,MINI FUSE |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.2006 - 11.2010] GSJ1# 20A,MINI FUSE |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.2006 - 11.2010] GSJ1# 30A,MINI FUSE |
90982-09013 |
from US $0.91 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.2006 - 11.2010] GSJ1# |
82616-20010 |
from US $2.28 |
||
|
82642B
|
82642B
90987-02025 Relay[01.2006 - 11.2010] GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
90987-02025 |
from US $48.62 |
||
|
82662A
|
82662A
82662-35A80
Cover, Relay Block, Upper, No.1
[08.2009 - 11.2010] GSJ1# |
82662-35A80 |
— | ||
|
82662A
|
82662A
82662-35A90 Cover, Relay Block, Upper, No.1[11.2010 - 08.2012] GSJ1# |
82662-35A90 |
US $47.35 |
||
|
82662A
|
82662A
82662-35B20 Cover, Relay Block, Upper, No.1[08.2012 - 07.2014] GSJ1# |
82662-35B20 |
US $29.03 |
||
|
82662A
|
82662A
82662-3D180
Cover, Relay Block, Upper, No.1
[01.2006 - 08.2009] GSJ1# |
82662-3D180 |
— | ||
|
82662B
|
82662B
82662-35A40
Cover, Relay Block, Upper, No.2
[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
82662-35A40 |
— | ||
|
82662C
|
82662C
82662-35A30 Cover, Relay Block, Upper, No.3RELAY BLOCK, UPPER, NO.3 [01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHA |
82662-35A30 |
US $10.05 |
||
|
82662C
|
82662C
82662-35B00
Cover, Relay Block, Upper, No.3
[08.2011 - 08.2012] GSJ1# IMAGE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
82662-35B00 |
— | ||
|
82663
|
82663
82663-35090 Cover, Relay Block, Lower[01.2006 - 11.2010] GSJ1# |
82663-35090 |
from US $65.64 |
||
|
82663A
|
82663A
82663-35100 Cover, Relay Block, Lower, No.2[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
82663-35100 |
US $6.87 |
||
|
82663B
|
82663B
82663-35120 Cover, Relay Block, Lower, No.3RELAY BLOCK, LOWER, NO.3 [01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHA |
82663-35120 |
US $9.61 |
||
|
82695
|
82695
82695-35030 Resistor, Daytime Running LightDAYTIME RUNNING LIGHT [01.2006 - 11.2010] GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
82695-35030 |
US $45.57 |
||
|
82696A
|
82696A
82696-35030 Bracket, Running Light ResistorRUNNING LIGHT RESISTOR [01.2006 - 11.2010] GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
82696-35030 |
US $6.84 |
||
|
82715
|
82715
82715-35B90
Bracket,wiring Harness Clamp
[07.2007 - 11.2010] GSJ15..MTM CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ15..MTM CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ15..MTM CONVENIENCE PACKAGE&AUD |
82715-35B90 |
— | ||
|
82741
|
82741
82741-35110 Block, Engine Room Relay[01.2006 - 11.2010] GSJ1# |
82741-35110 |
from US $118.86 |
||
|
82742
|
82742
82742-35050 Block, Engine Room Relay, No.5[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
82742-35050 |
from US $20.62 |
||
|
82743
|
82743
82743-35010 Block, Engine Room Relay, No.3ENGINE ROOM RELAY, NO.3 [01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 9SPE AKER; GSJ1# CONVENIENCE PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AM/FM CD CHANGER, 8SPE RAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHA |
82743-35010 |
from US $26.06 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[01.2006 - 11.2010] GSJ1# |
82824-20140 |
US $2.48 |
||
|
84270Q
|
84270Q
90987-02027 Relay[08.2012 - 07.2014] GSJ1# |
90987-02027 |
from US $47.82 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[01.2006 - 11.2010] GSJ1# |
90987-04010 |
from US $47.20 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[01.2006 - 11.2010] GSJ1# |
90987-04004 |
from US $47.21 |
||
|
85916P
|
85916P
90987-02025 Relay[01.2006 - 11.2010] GSJ1# |
90987-02025 |
from US $48.62 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[01.2006 - 11.2010] GSJ1# DAYTIME RUNNING LIGHT SYSTEM-WITH |
90987-04010 |
from US $47.20 |
||
|
86220A
|
86220A
90987-02025 Relay[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
90987-02025 |
from US $48.62 |
||
|
88630G
|
88630G
90987-02028 Relay, Water Pump[01.2006 - 11.2010] GSJ1# |
90987-02028 |
from US $48.41 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.78 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
8271135420
|
8271135420
82711-35420 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35420 |
US $2.04 |
||
|
9011906830
|
9011906830
90119-06830 BOLT WWASHER |
90119-06830 |
US $1.43 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
