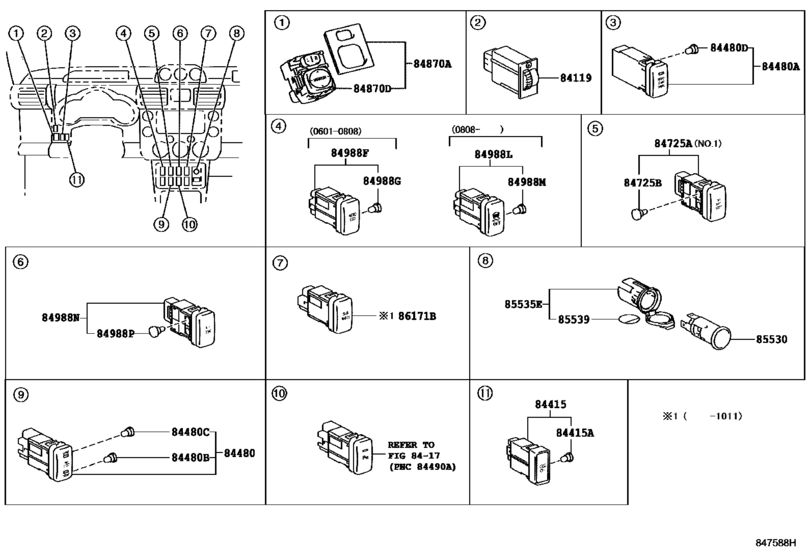

Switch & Relay & Computer ([01.2006 - ] INSTRUMENT PANEL 1/2 (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-35030 Rheostat, Light ControlLIGHT CONTROL [01.2006 - 11.2010] GSJ1# |
84119-35030 |
US $75.71 |
||
|
84415
|
84415
84415-35020
Switch, Curtain Airbag Cutoff
[08.2008 - 11.2010] GSJ1# |
84415-35020 |
— | ||
|
84415A
|
84415A
90010-01083 Bulb (For Rear Fog Lamp Switch)[08.2008 - 11.2010] GSJ1# |
90010-01083 |
from US $3.44 |
||
|
84480
|
84480
84480-35080 Switch Assy, MainMAIN [01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
84480-35080 |
from US $53.87 |
||
|
84480
|
84480
84480-35110
Switch Assy, Main
[08.2012 - 07.2014] GSJ1# IMAGE PACKAGE |
84480-35110 |
— | ||
|
84480A
|
84480A
84480-35090
Switch Assy, Clutch Start Cancel
[01.2006 - 11.2010] GSJ15..MTM |
84480-35090 |
— | ||
|
84480B
|
84480B
84999-10310 Bulb, Air Conditioner Control[01.2006 - 11.2010] GSJ1# 14V 0.91W,CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# 14V 0.91W,CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
84999-10310 |
from US $2.85 |
||
|
84480C
|
84480C
90010-01089 Bulb, Lane Monitoring Main Switch[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
90010-01089 |
US $6.45 |
||
|
84480D
|
84480D
84999-10310 Bulb, Air Conditioner Control[01.2006 - 11.2010] GSJ15..MTM 14V 0.91W |
84999-10310 |
from US $2.85 |
||
|
84725A
|
84725A
84725-35070 Switch, Differential LockDIFFERENTIAL LOCK [01.2006 - 11.2010] GSJ1# DIFFERENTIAL LOCK-WITH,NO.1 |
84725-35070 |
US $44.93 |
||
|
84725B
|
84725B
90010-01083 Bulb (For Rear Fog Lamp Switch)[01.2006 - 11.2010] GSJ1# 14V 0.91W,W(CAP),DIFFERENTIAL LOCK-WITH |
90010-01083 |
from US $3.44 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[01.2006 - 11.2010] GSJ1# OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP |
84870-34010 |
from US $63.17 |
||
|
84870D
|
84870D
84872-52030 Switch Assy, Outer Mirror[01.2006 - 11.2010] GSJ1# OUTSIDE REAR VIEW MIRROR-REMORT CONTROL&ILUMINATION LAMP |
84872-52030 |
US $53.29 |
||
|
84988L
|
84988L
84988-35070 Switch, Vsc OffVSC OFF [08.2008 - 11.2010] GSJ1# |
84988-35070 |
from US $47.03 |
||
|
84988M
|
84988M
90010-01083 Bulb (For Rear Fog Lamp Switch)[08.2008 - 11.2010] GSJ1# 14V 0.91W,W(CAP) |
90010-01083 |
from US $3.44 |
||
|
84988N
|
84988N
84988-35060 Switch, Traction Control, No.2TRACTION CONTROL, NO.2 [01.2006 - 07.2007] GSJ15 DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRAC) |
84988-35060 |
from US $44.76 |
||
|
84988P
|
84988P
90010-01083 Bulb (For Rear Fog Lamp Switch)[01.2006 - 07.2007] GSJ15 DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRAC) |
90010-01083 |
from US $3.44 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[01.2006 - 11.2010] GSJ1# |
85530-33020 |
from US $14.95 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[01.2006 - 11.2010] GSJ1# |
85530-06010 |
from US $26.06 |
||
|
85535E
|
85535E
85535-60100-B1 Cover, Power Outlet Socket, No.2POWER OUTLET SOCKET [01.2006 - 11.2010] GSJ1# DK.GRAY,TRIM1# |
85535-60100-B1 |
from US $5.59 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[01.2006 - 11.2010] GSJ1# |
85539-60020 |
US $1.41 |
||
|
86171B
|
86171B
86171-35010 Switch, Woofer SpeakerWOOFER SPEAKER [01.2006 - 11.2010] GSJ1# AUDIO-AM/FM CD CHANGER, 9SPEAKER |
86171-35010 |
US $61.99 |
||
