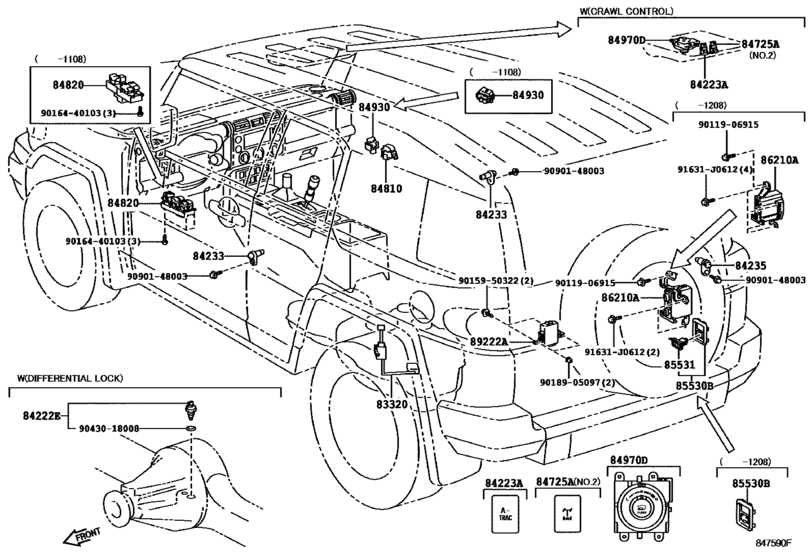

Switch & Relay & Computer ([01.2006 - ] DOOR,ROOF,FLOOR & BACK DOOR (0601- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-35611 Gage Assy, Fuel Sender[11.2010 - 08.2012] GSJ1# |
83320-35611 |
US $61.59 |
||
| replacement | |||||
|
83320
|
83320
83320-35640 Gage Assy, Fuel Sender[11.2010 - 08.2012] GSJ1# |
83320-35640 |
from US $59.98 |
||
|
83320
|
83320
83320-35640 Gage Assy, Fuel Sender[01.2006 - 11.2010] GSJ1# |
83320-35640 |
from US $59.98 |
||
|
84222E
|
84222E
84222-12010 Switch, Transfer Indicator, No.1[01.2006 - 11.2010] GSJ1# DIFFERENTIAL LOCK-WITH |
84222-12010 |
from US $54.43 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[01.2006 - 11.2010] GSJ1# |
84231-60070 |
from US $11.83 |
||
|
84235
|
84235
84231-60070 Switch, Courtesy Lamp[01.2006 - 11.2010] GSJ1# |
84231-60070 |
from US $11.83 |
||
|
84725A
|
84725A
84725-35070 Switch, Differential LockDIFFERENTIAL LOCK [01.2006 - 11.2010] GSJ1# DIFFERENTIAL LOCK-WITH,NO.1 |
84725-35070 |
US $44.93 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[01.2006 - 11.2007] GSJ1# |
84810-12080 |
from US $28.70 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[08.2011 - 07.2014] GSJ1# |
84810-52030 |
from US $41.17 |
||
|
84820
|
84820
84820-35100 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [01.2006 - 11.2010] GSJ1# |
84820-35100 |
from US $165.97 |
||
|
84820
|
84820
84820-52410 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2011 - 07.2014] GSJ1# |
84820-52410 |
from US $117.94 |
||
|
84930
|
84930
84930-12250 Switch Assy, Door Control[08.2011 - 07.2014] GSJ1# |
84930-12250 |
US $31.32 |
||
|
84930
|
84930
84930-33100 Switch Assy, Door ControlDOOR CONTROL [01.2006 - 11.2007] GSJ1# |
84930-33100 |
US $41.35 |
||
|
85530B
|
85530B
85530-35060-B0 Socket Assy, Power Outlet, Rear No.1POWER POINT, REAR [01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER,DK.GRAY,TRIM1#; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER,DK.GRAY,TRIM1# |
85530-35060-B0 |
US $36.52 |
||
|
85530B
|
85530B
85530-35100-B0 Socket Assy, Power Outlet, Rear No.1[08.2012 - 07.2014] GSJ1# IMAGE PACKAGE,DK.GRAY,TRIM1# |
85530-35100-B0 |
US $36.52 |
||
|
85531
|
85531
85531-35030-B0
Socket, Power Outlet
[08.2012 - 07.2014] GSJ1# IMAGE PACKAGE,DK.GRAY,TRIM1# |
85531-35030-B0 |
— | ||
|
86210A
|
86210A
86210-35040
Inverter Assy, Voltage
[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
86210-35040 |
— | ||
| replacement | |||||
|
86210A
|
86210A
86210-35080 Inverter Assy, Voltage[01.2006 - 11.2010] GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER; GSJ1# CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER |
86210-35080 |
US $503.78 |
||
|
86210A
|
86210A
86210-35080 Inverter Assy, Voltage[08.2012 - 07.2014] GSJ1# IMAGE PACKAGE |
86210-35080 |
US $503.78 |
||
|
89222A
|
89222A
89222-35020
Computer, Multiplex Network Door
[01.2006 - 09.2006] GSJ1# |
89222-35020 |
— | ||
| replacement | |||||
|
89222A
|
89222A
89222-35021 Computer, Multiplex Network Door[01.2006 - 09.2006] GSJ1# |
89222-35021 |
US $206.75 |
||
|
89222A
|
89222A
89222-35021 Computer, Multiplex Network Door[10.2006 - 11.2010] GSJ1# |
89222-35021 |
US $206.75 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.68 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9018905097
|
9018905097
90189-05097 GROMMET SCREW |
90189-05097 |
US $1.43 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
