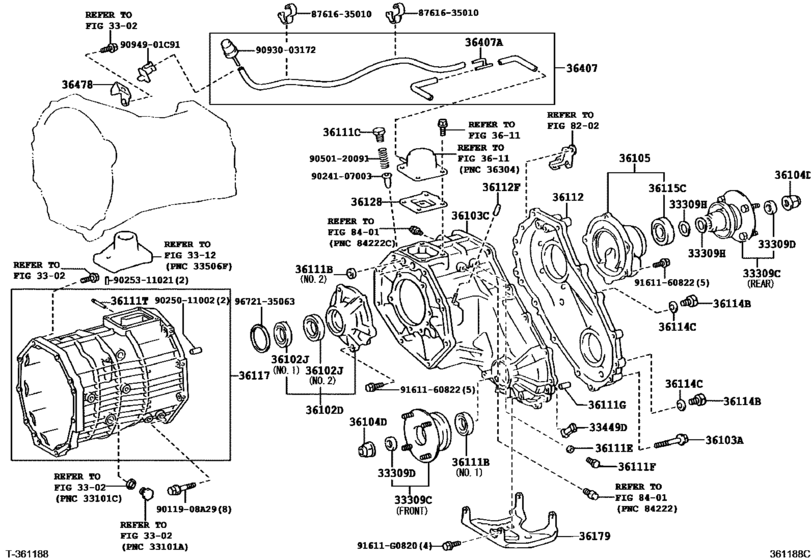

Transfer Case & Extension Housing ([01.2006 - 08.2009] (0601-0908)MTM) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309C
|
33309C
33309-35110
Flange Sub-Assy, Output Shaft Companion
[01.2006 - 07.2008] GSJ15 FRONT |
33309-35110 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[01.2006 - 07.2008] GSJ15 FRONT |
33309-35112 |
— | ||
|
33309C
|
33309C
90311-41013 Seal, Oil (For Transfer Case)[01.2006 - 07.2008] GSJ15 FRONT |
90311-41013 |
from US $7.17 |
||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[01.2006 - 07.2008] GSJ15 FRONT |
90311-41017 |
from US $7.17 |
||
|
33309C
|
33309C
33309-35111
Flange Sub-Assy, Output Shaft Companion
[07.2008 - 11.2010] GSJ15 FRONT |
33309-35111 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[07.2008 - 11.2010] GSJ15 FRONT |
33309-35112 |
— | ||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[07.2008 - 11.2010] GSJ15 FRONT |
90311-41017 |
from US $7.17 |
||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[07.2008 - 11.2010] GSJ15 FRONT |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
33309-35120 Flange Sub-Assy, Output Shaft Companion[01.2006 - 11.2010] GSJ15 REAR |
33309-35120 |
from US $100.04 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[01.2006 - 11.2010] GSJ15 |
90312-23001 |
from US $2.15 |
||
|
33309H
|
33309H
36275-35030 Washer, Transfer Output Shaft[01.2006 - 11.2010] GSJ15..MTM N=31,OD=38 |
36275-35030 |
from US $1.25 |
||
|
33449D
|
33449D
33449-32020 Magnet, Transmission[01.2006 - 11.2010] GSJ15 |
33449-32020 |
US $11.65 |
||
|
36102D
|
36102D
36102-35080 Retainer Sub-Assy, Transfer Rh BearingTRANSFER RH BEARING [01.2006 - 11.2010] GSJ15..MTM |
36102-35080 |
US $77.17 |
||
|
36102J
|
36102J
90311-43007 Seal, Oil(For Transfer Case Adapter Rear)[01.2006 - 11.2010] GSJ15..MTM NO.1 |
90311-43007 |
from US $5.20 |
||
|
36102J
|
36102J
90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[01.2006 - 11.2010] GSJ15..ATM; GSJ15..MTM NO.2 |
90311-43008 |
from US $7.17 |
||
|
36103A
|
36103A
90119-08A28 Bolt (For Transfer Case)[01.2006 - 11.2010] GSJ15 *8-1.25PX55-30 |
90119-08A28 |
US $1.51 |
||
|
36103C
|
36103C
36103-60350
Case, Transfer, Front
[01.2006 - 11.2010] GSJ15..MTM |
36103-60350 |
— | ||
|
36104D
|
36104D
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[01.2006 - 11.2010] GSJ15 |
90179-22016 |
from US $2.30 |
||
|
36105
|
36105
36105-60040 Housing Sub-Assy, Transfer Extension, Front[01.2006 - 11.2010] GSJ15..MTM |
36105-60040 |
US $68.43 |
||
|
36111B
|
36111B
90311-15008 Seal, Oil (For Transfer Case)[01.2006 - 11.2010] GSJ15 NO.2 |
90311-15008 |
from US $3.76 |
||
|
36111B
|
36111B
90311-41010
Seal, Oil (For Transfer Case)
[01.2006 - 09.2006] GSJ15 NO.1 |
90311-41010 |
— | ||
| replacement | |||||
|
36111B
|
36111B
90311-41012 Seal, Oil (For Transfer Case)[01.2006 - 09.2006] GSJ15 NO.1 |
90311-41012 |
from US $7.17 |
||
|
36111B
|
36111B
90311-41012 Seal, Oil (For Transfer Case)[09.2006 - 07.2008] GSJ15 NO.1 |
90311-41012 |
from US $7.17 |
||
|
36111B
|
36111B
90311-41013 Seal, Oil (For Transfer Case)[07.2008 - 11.2010] GSJ15 NO.1 |
90311-41013 |
from US $7.17 |
||
|
36111C
|
36111C
90341-14012 Plug (For Transfer Case)[01.2006 - 11.2010] GSJ15 |
90341-14012 |
US $3.40 |
||
|
36111E
|
36111E
90430-18008 Gasket[01.2006 - 11.2010] GSJ15..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36111E
|
36111E
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2006 - 11.2010] GSJ15..MTM |
90430-T0021 |
US $0.99 |
||
|
36111F
|
36111F
90341-18006 Plug (No magnet)[01.2006 - 11.2010] GSJ15..MTM |
90341-18006 |
from US $3.23 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[01.2006 - 11.2010] GSJ15 L=14,OD=10 |
90250-10214 |
from US $1.35 |
||
|
36111T
|
36111T
90441-05001 Tube (For Transfer Case)[01.2006 - 11.2010] GSJ15 |
90441-05001 |
US $2.33 |
||
|
36112
|
36112
36112-60180 Case, Transfer, Rear[01.2006 - 11.2010] GSJ15..MTM |
36112-60180 |
US $227.14 |
||
|
36112F
|
36112F
90339-04024 Cap, Transfer, Rear Case[01.2006 - 11.2010] GSJ15..MTM |
90339-04024 |
US $1.79 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[01.2006 - 11.2010] GSJ15 |
90341-18006 |
from US $3.23 |
||
|
36114C
|
36114C
90430-18008 Gasket[01.2006 - 11.2010] GSJ15 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2006 - 11.2010] GSJ15 |
90430-T0021 |
US $0.99 |
||
|
36115C
|
36115C
90311-41007
Seal, Oil (Transfer Extension Front Housing Sub-Assy)
[01.2006 - 11.2010] GSJ15 |
90311-41007 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)[01.2006 - 11.2010] GSJ15 |
90311-41020 |
from US $6.99 |
||
|
36117
|
36117
33102-35061 Adapter, Transfer[01.2006 - 11.2010] GSJ15..MTM |
33102-35061 |
US $1,315.24 |
||
|
36128
|
36128
36128-60061 Deflector, Breather Oil[01.2006 - 11.2010] GSJ15..MTM |
36128-60061 |
US $2.48 |
||
|
36179
|
36179
36179-35020
Protector, Transfer Case Lower
[01.2006 - 08.2009] GSJ15 |
36179-35020 |
— | ||
| replacement | |||||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [01.2006 - 08.2009] GSJ15 |
36179-60030 |
US $20.79 |
||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [08.2009 - 11.2010] GSJ15 |
36179-60030 |
US $20.79 |
||
|
36407
|
36407
36407-35040
Hose Sub-Assy, Transfer Breather
[08.2009 - 11.2010] GSJ15..MTM |
36407-35040 |
— | ||
|
36407
|
36407
36407-35050
Hose Sub-Assy, Transfer Breather
[11.2010 - 07.2014] GSJ15..MTM |
36407-35050 |
— | ||
|
36407
|
36407
36407-60150 Hose Sub-Assy, Transfer BreatherTRANSFER BREATHER [01.2006 - 08.2009] GSJ15..MTM |
36407-60150 |
US $28.25 |
||
|
36407A
|
36407A
90413-04008 Way, 3(For Transfer Breather Hose)[01.2006 - 08.2009] GSJ15 |
90413-04008 |
from US $6.46 |
||
|
36478
|
36478
36478-60010 Bracket, Transfer Breather[01.2006 - 08.2009] GSJ15 |
36478-60010 |
US $4.22 |
||
|
36478
|
36478
36478-60060 Bracket, Transfer BreatherTRANSFER BREATHER [08.2009 - 11.2010] GSJ15 |
36478-60060 |
US $6.99 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9011908A29
|
9011908A29
90119-08A29 Bolt(For Head To Camshaft Bearing Cap) |
90119-08A29 |
US $1.79 |
||
|
9094901C91
|
9094901C91
90949-01C91 Clamp, No.6(For Vacuum Hose) |
90949-01C91 |
US $1.89 |
||
|
8761635010
|
8761635010
87616-35010 Clamp, Cooling Unit Case |
87616-35010 |
from US $4.58 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.87 |
||
|
9025011002
|
9025011002
90250-11002
New Genuine Part
|
90250-11002 |
— | ||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.41 |
||
|
9050120091
|
9050120091
90501-20091 Spring, Compression (For Transfer Case) |
90501-20091 |
US $0.96 |
||
|
9093003172
|
9093003172
90930-03172 PLUG BREATHER |
90930-03172 |
US $2.15 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9672135063
|
9672135063
96721-35063 Ring, O |
96721-35063 |
from US $2.62 |
||
