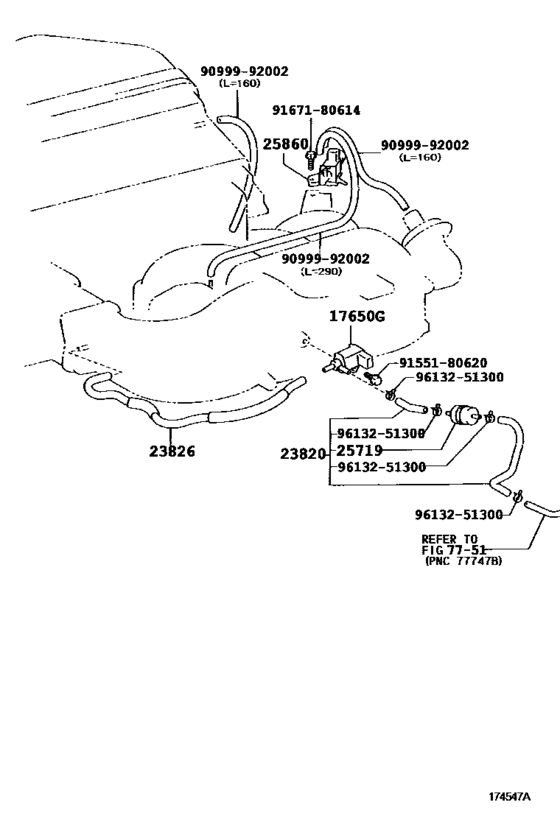

Vacuum Piping ([01.2006 - 08.2009] (0601-0908)) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650G
|
17650G
90910-12262 Valve, Duty Vacuum Switching[01.2006 - 08.2009] 1GRFE..GSJ1# |
90910-12262 |
from US $27.26 |
||
|
17650G
|
17650G
90910-12276 Valve, Duty Vacuum Switching[08.2009 - 11.2010] 1GRFE..GSJ1# |
90910-12276 |
from US $22.71 |
||
|
23820
|
23820
23820-31021 Hose Assy, Fuel Vapor FeedFUEL VAPOR FEED [01.2006 - 08.2009] 1GRFE..GSJ1# |
23820-31021 |
US $46.48 |
||
|
23820
|
23820
23820-31240
Hose Assy, Fuel Vapor Feed
[08.2009 - 11.2010] 1GRFE..GSJ1# |
23820-31240 |
— | ||
|
23826
|
23826
23826-31010 Hose, Fuel Vapor Feed, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# |
23826-31010 |
from US $18.35 |
||
|
23826
|
23826
23826-31160 Hose, Fuel Vapor Feed, No.1FUEL VAPOR FEED, NO.1 [08.2009 - 11.2010] 1GRFE..GSJ1# |
23826-31160 |
from US $12.73 |
||
|
25719
|
25719
25719-50040 Tank, Vacuum Surge[01.2006 - 08.2009] 1GRFE..GSJ1# |
25719-50040 |
from US $12.96 |
||
|
25860
|
25860
25860-31010 Valve Assy, Vacuum Switching, No.1[01.2006 - 08.2009] 1GRFE..GSJ1# |
25860-31010 |
from US $49.27 |
||
|
25860
|
25860
25860-36020 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [08.2009 - 11.2010] 1GRFE..GSJ1# |
25860-36020 |
from US $45.60 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.46 |
