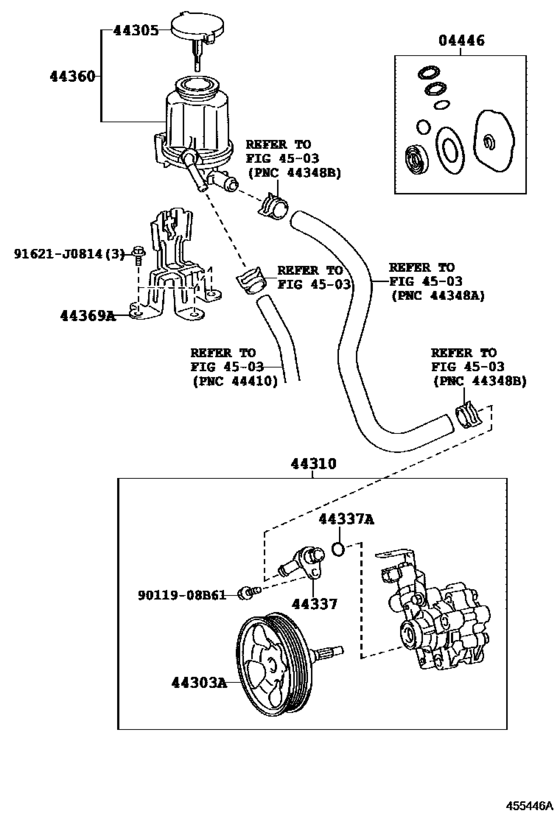

Vane Pump & Reservoir (Power Steering) ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2006 - 2014
- Sales region
- U.S.A.
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.2006
- To
- 07.2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-32050 Gasket Kit, Power Steering Pump[01.2006 - 08.2009] GSJ1# |
04446-32050 |
from US $17.38 |
||
|
04446
|
04446
04446-35080 Gasket Kit, Power Steering PumpPOWER STEERING PUMP [08.2009 - 11.2010] GSJ1# |
04446-35080 |
from US $19.57 |
||
|
44303A
|
44303A
44303-28010 Shaft Sub-Assy, W/rotor[01.2006 - 08.2009] GSJ1# |
44303-28010 |
from US $64.15 |
||
|
44303A
|
44303A
44303-60020 Shaft Sub-Assy, W/pulleyW/PULLEY [08.2009 - 11.2010] GSJ1# |
44303-60020 |
US $72.07 |
||
|
44305
|
44305
44305-28030
Cap Sub-Assy, Vane Pump Oil Reservoir
[01.2006 - 01.2008] GSJ1# |
44305-28030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[01.2006 - 01.2008] GSJ1# |
44305-28061 |
from US $15.22 |
||
|
44305
|
44305
44305-28060 Cap Sub-Assy, Vane Pump Oil Reservoir[02.2008 - 11.2010] GSJ1# |
44305-28060 |
US $17.76 |
||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[02.2008 - 11.2010] GSJ1# |
44305-28061 |
from US $15.22 |
||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.2012 - 07.2014] GSJ1# |
44305-28061 |
from US $15.22 |
||
|
44310
|
44310
44310-35660 Pump Assy, Vane[01.2006 - 08.2009] GSJ1# |
44310-35660 |
from US $694.22 |
||
|
44310
|
44310
44310-35750 Pump Assy, VaneVANE [08.2009 - 11.2010] GSJ1# |
44310-35750 |
from US $589.40 |
||
|
44337
|
44337
44337-32110 Union, Power Steering Suction Port[01.2006 - 08.2009] GSJ1# |
44337-32110 |
US $20.27 |
||
|
44337
|
44337
44337-60230 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [08.2009 - 11.2010] GSJ1# |
44337-60230 |
US $15.87 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[01.2006 - 08.2009] GSJ1# |
90301-11020 |
from US $2.15 |
||
|
44337A
|
44337A
90301-15025 Ring, O(For Power Steering Suction Port)[08.2009 - 11.2010] GSJ1# |
90301-15025 |
from US $2.13 |
||
|
44360
|
44360
44360-35170 Reservoir Assy, Vane Pump Oil[01.2006 - 08.2009] GSJ1# |
44360-35170 |
from US $163.20 |
||
|
44360
|
44360
44360-60320 Reservoir Assy, Vane Pump OilVANE PUMP OIL [08.2009 - 11.2010] GSJ1# |
44360-60320 |
US $113.57 |
||
| replacement | |||||
|
44360
|
44360
44360-60321 Reservoir Assy, Vane Pump Oil[08.2009 - 11.2010] GSJ1# |
44360-60321 |
from US $77.88 |
||
|
44360
|
44360
44360-60321 Reservoir Assy, Vane Pump Oil[08.2012 - 07.2014] GSJ1# |
44360-60321 |
from US $77.88 |
||
|
44369A
|
44369A
44369-60080 Bracket, Oil Reservoir, No.1OIL RESERVOIR, NO.1 [08.2009 - 11.2010] GSJ1# |
44369-60080 |
US $24.81 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.78 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
