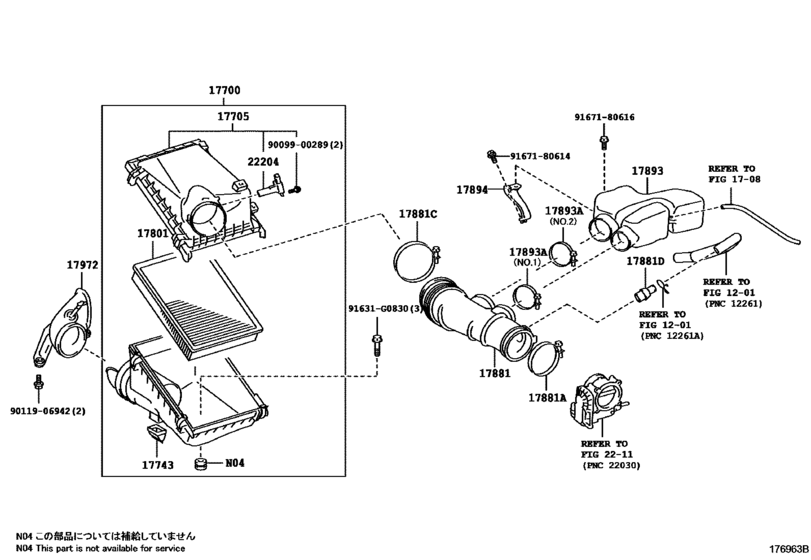

Air Cleaner ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-31880 Cleaner Assy, AirAIR [11.2010 - 06.2011] 1GRFE..GSJ15 |
17700-31880 |
US $279.55 |
||
| replacement | |||||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[11.2010 - 06.2011] 1GRFE..GSJ15 |
17700-31882 |
from US $211.12 |
||
|
17700
|
17700
17700-31881
Cleaner Assy, Air
[06.2011 - 07.2011] 1GRFE..GSJ15 |
17700-31881 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[06.2011 - 07.2011] 1GRFE..GSJ15 |
17700-31882 |
from US $211.12 |
||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[07.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17700-31882 |
from US $211.12 |
||
|
17705
|
17705
17705-31370
Cap Sub-Assy, Air Cleaner
[11.2010 - 06.2011] 1GRFE..GSJ15 |
17705-31370 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[11.2010 - 06.2011] 1GRFE..GSJ15 |
17705-31371 |
— | ||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17705-31371 |
— | ||
|
17743
|
17743
17743-50010
Valve, Dust Relief
[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17743-50010 |
— | ||
|
17801
|
17801
17801-38050
Element Sub-Assy, Air Cleaner Filter
[11.2010 - 07.2011] 1GRFE..GSJ15 |
17801-38050 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[11.2010 - 07.2011] 1GRFE..GSJ15 |
17801-38051 |
from US $48.34 |
||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[07.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17801-38051 |
from US $48.34 |
||
|
17881
|
17881
17881-31250 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17881-31250 |
from US $51.19 |
||
|
17881A
|
17881A
96111-30900 Clamp(For Air Cleaner Hose, No.1)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
96111-30900 |
from US $5.77 |
||
|
17881C
|
17881C
96111-31060 Clamp(For Air Cleaner Hose, No.1)NO.1) [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
96111-31060 |
US $0.70 |
||
|
17881D
|
17881D
90904-06008 Tube, Union(Fog Air Cleaner Hose)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90904-06008 |
from US $6.09 |
||
|
17893
|
17893
17893-31130 Resonator, Intake AirINTAKE AIR [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17893-31130 |
US $49.62 |
||
|
17893A
|
17893A
96111-10690 Clamp, Hose[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA NO.1 |
96111-10690 |
from US $2.87 |
||
|
17893A
|
17893A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA NO.2 |
96111-10750 |
from US $3.34 |
||
|
17894
|
17894
17894-31050 Bracket, ResonatorRESONATOR [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17894-31050 |
US $7.13 |
||
|
17972
|
17972
17971-31030 Inlet, Cool Air, No.2[08.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17971-31030 |
US $36.25 |
||
|
17972
|
17972
17972-31010 Inlet, Cool Air, No.2COOL AIR, NO.2 [11.2010 - 08.2011] 1GRFE..GSJ15 |
17972-31010 |
US $59.26 |
||
|
22204
|
22204
22204-0T040 Meter Sub-Assy, Intake Air Flow[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0T040 |
22204-0T040 |
US $221.31 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0T040 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-0V010
Meter Sub-Assy, Intake Air Flow
[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V010 |
22204-0V010 |
— | ||
|
22204
|
22204
22204-0V020 Meter Sub-Assy, Intake Air Flow[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V020 |
22204-0V020 |
US $133.61 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V020 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-28010 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-37010
Meter Sub-Assy, Intake Air Flow
[11.2010 - 06.2011] 1GRFE..GSJ15 |
22204-37010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [11.2010 - 06.2011] 1GRFE..GSJ15 |
22204-28010 |
from US $130.15 |
||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
