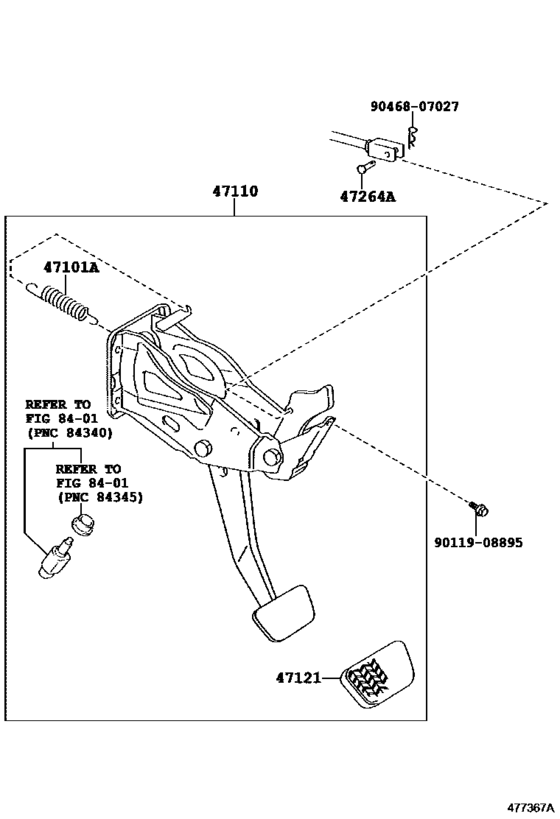

Brake Pedal & Bracket ([01.2010 - ] (1001- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-20033 Spring(For Brake Pedal Return)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90507-20033 |
US $2.52 |
||
|
47110
|
47110
47110-35071
Support Assy, Brake Pedal
[11.2010 - 09.2014] GSJ15..MTM |
47110-35071 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-35072
Support Assy, Brake Pedal
[11.2010 - 09.2014] GSJ15..MTM |
47110-35072 |
— | ||
|
47110
|
47110
47110-35072
Support Assy, Brake Pedal
[10.2014 -] GSJ15..MTM |
47110-35072 |
— | ||
|
47121
|
47121
31321-52010 Pad, Brake Pedal[11.2010 - 11.2015] GSJ15..MTM |
31321-52010 |
from US $1.94 |
||
|
47121
|
47121
31321-52020 Pad, Clutch Pedal[12.2015 -] GSJ15..MTM |
31321-52020 |
from US $2.77 |
||
|
47264A
|
47264A
90240-06027 Pin(For Push Rod)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90240-06027 |
US $1.61 |
||
|
9011908895
|
9011908895
90119-08895 BOLT WWASHER |
90119-08895 |
US $1.79 |
||
|
9046807027
|
9046807027
90468-07027 Clip(For Push Rod Clevis Pin) |
90468-07027 |
from US $0.67 |
||
