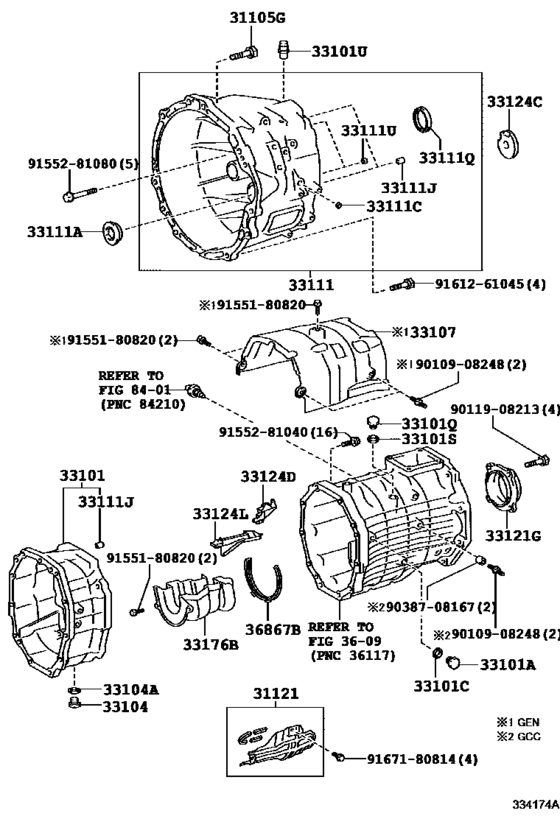

Clutch Housing & Transmission Case (Mtm) ([07.2007 - ] RA61F (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91619-61250 Bolt(For Transmission Case & Engine Setting)[11.2010 -] GSJ15..MTM *12-1.25PX50-30 |
91619-61250 |
from US $1.90 |
||
|
31121
|
31121
31101-60020 Cover, Clutch Housing, No.1CLUTCH HOUSING, NO.1 [11.2010 -] GSJ15..MTM |
31101-60020 |
US $35.53 |
||
|
33101
|
33101
33106-35060
Case Sub-Assy, Manual Transmission
[11.2010 -] GSJ15..MTM |
33106-35060 |
— | ||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[11.2010 -] GSJ15..MTM |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[11.2010 -] GSJ15..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2010 -] GSJ15..MTM |
90430-T0021 |
US $0.99 |
||
|
33101Q
|
33101Q
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [11.2010 -] GSJ15..MTM |
90341-18032 |
from US $3.76 |
||
|
33101S
|
33101S
90430-18008 Gasket[11.2010 -] GSJ15..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101S
|
33101S
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2010 -] GSJ15..MTM |
90430-T0021 |
US $0.99 |
||
|
33101U
|
33101U
90930-03075 Plug, Breather[11.2010 -] GSJ15..MTM |
90930-03075 |
from US $3.78 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[11.2010 -] GSJ15..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[11.2010 -] GSJ15..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2010 -] GSJ15..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-35120
Case, Manual Transmission
[11.2010 -] GSJ15..MTM |
33101-35120 |
— | ||
|
33111A
|
33111A
90341-42001 Plug, Manual Transmission CaseMANUAL TRANSMISSION CASE [11.2010 -] GSJ15..MTM |
90341-42001 |
US $5.59 |
||
|
33111C
|
33111C
96411-41000 Plug, Tight, No.2[11.2010 -] GSJ15..MTM OD=10 |
96411-41000 |
US $2.62 |
||
|
33111J
|
33111J
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[11.2010 -] GSJ15..MTM L=15,OD=8 |
90250-10232 |
US $1.79 |
||
|
33111Q
|
33111Q
90311-34029 Seal, Oil(For Transmission Case)OIL(FOR TRANSMISSION CASE) [11.2010 -] GSJ15..MTM |
90311-34029 |
from US $3.25 |
||
|
33111U
|
33111U
90253-11021 Pin, Ring[11.2010 -] GSJ15..MTM L=8,OD=11 |
90253-11021 |
from US $1.41 |
||
|
33121G
|
33121G
33121-35110 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [11.2010 -] GSJ15..MTM |
33121-35110 |
from US $27.81 |
||
|
33124C
|
33124C
33124-35130 Pipe, Oil Receiver, No.2(Mtm)OIL RECEIVER, NO.2(MTM) [11.2010 -] GSJ15..MTM |
33124-35130 |
US $3.58 |
||
|
33124D
|
33124D
33124-35140 Pipe, Oil Receiver, N0.3(Mtm)OIL RECEIVER, N0.3(MTM) [11.2010 -] GSJ15..MTM |
33124-35140 |
US $8.91 |
||
|
33124L
|
33124L
33124-35121 Pipe, Oil Receiver, No.1(Mtm)OIL RECEIVER, NO.1(MTM) [11.2010 -] GSJ15..MTM |
33124-35121 |
US $9.26 |
||
|
33176B
|
33176B
33176-35030 Separator, Transmission Oil(Mtm)TRANSMISSION OIL(MTM) [11.2010 -] GSJ15..MTM |
33176-35030 |
US $38.73 |
||
|
36867B
|
36867B
36867-35010 Seal, Packing (For Oil Separator)PACKING (FOR OIL SEPARATOR) [11.2010 -] GSJ15..MTM |
36867-35010 |
US $4.68 |
||
|
9010908248
|
9010908248
90109-08248 Bolt(For Clutch Release Cylinder Setting) |
90109-08248 |
US $1.43 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9038708167
|
9038708167
90387-08167
New Genuine Part
|
90387-08167 |
— | ||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.12 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.46 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
