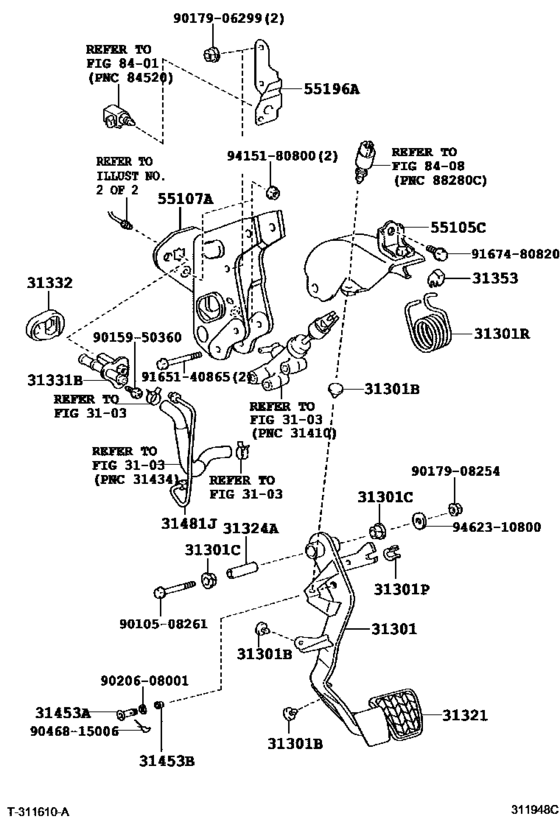

Clutch Pedal & Flexible Hose ([07.2007 - ] (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-35270
Pedal Sub-Assy, Clutch
[11.2010 -] GSJ15..MTM |
31301-35270 |
— | ||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[11.2010 -] GSJ15..MTM |
90541-06036 |
from US $0.91 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[11.2010 -] GSJ15..MTM |
90541060361 |
— | ||
|
31301C
|
31301C
90386-14015 Bush(For Clutch Pedal)[11.2010 -] GSJ15..MTM |
90386-14015 |
from US $1.65 |
||
|
31301P
|
31301P
90389-06055 Bush(For Clutch Pedal Turnover)[11.2010 -] GSJ15..MTM |
90389-06055 |
from US $1.79 |
||
|
31301R
|
31301R
31316-35010
Spring, Compression(For Turn Over Spring Seat)
[11.2010 -] GSJ15..MTM |
31316-35010 |
— | ||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[11.2010 - 11.2015] GSJ15..MTM |
31321-52010 |
from US $1.94 |
||
|
31321
|
31321
31321-52020 Pad, Clutch Pedal[12.2015 -] GSJ15..MTM |
31321-52020 |
from US $2.77 |
||
|
31324A
|
31324A
90387-08160 Collar, Clutch Pedal Shaft[11.2010 -] GSJ15..MTM |
90387-08160 |
from US $5.73 |
||
|
31331B
|
31331B
31331-60010 Way, Clutch Pedal SupportCLUTCH PEDAL SUPPORT [11.2010 -] GSJ15..MTM |
31331-60010 |
US $6.29 |
||
|
31332
|
31332
31332-60010 Grommet, Clutch Pedal SupportCLUTCH PEDAL SUPPORT [11.2010 -] GSJ15..MTM |
31332-60010 |
US $2.97 |
||
|
31353
|
31353
31353-26010 Holder, Clutch Pedal Spring[11.2010 -] GSJ15..MTM |
31353-26010 |
from US $2.95 |
||
|
31453A
|
31453A
90240-T0002
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
[11.2010 -] GSJ15..MTM L=31.9 |
90240-T0002 |
— | ||
|
31453B
|
31453B
90386-08033 Bush(For Clutch Master Cylinder Push Rod Clevis)[11.2010 -] GSJ15..MTM |
90386-08033 |
from US $1.27 |
||
|
31481J
|
31481J
31481-6A050 Tube, Clutch Master Cylinder To 2 WayCLUTCH MASTER CYLINDER TO 2 WAY [11.2010 -] GSJ15..MTM |
31481-6A050 |
US $4.89 |
||
|
55105C
|
55105C
55105-60010
Support, Pedal Bracket Clutch Wire
[11.2010 -] GSJ15..MTM |
55105-60010 |
— | ||
|
55107A
|
55107A
55107-60190 Support Sub-Assy, Clutch PedalCLUTCH PEDAL [11.2010 -] GSJ15..MTM |
55107-60190 |
US $24.29 |
||
|
55196A
|
55196A
55196-35020
Bracket, Clutch Start Switch Mounting
[11.2010 -] GSJ15..MTM |
55196-35020 |
— | ||
|
9010508261
|
9010508261
90105-08261 Shaft, Clutch Pedal |
90105-08261 |
from US $0.89 |
||
|
9015950360
|
9015950360
90159-50360 SCREW |
90159-50360 |
US $1.08 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9017908254
|
9017908254
90179-08254 NUT |
90179-08254 |
US $1.43 |
||
|
9020608001
|
9020608001
90206-08001 WASHER |
90206-08001 |
US $2.15 |
||
|
9046815006
|
9046815006
90468-15006 New Genuine Part |
90468-15006 |
US $1.02 |
||
|
9165140865
|
9165140865
91651-40865 New Genuine Part |
91651-40865 |
US $0.79 |
||
|
9167480820
|
9167480820
91674-80820 BOLT FLANGE |
91674-80820 |
from US $0.76 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9462310800
|
9462310800
94623-10800 Spacer, Shift Lever |
94623-10800 |
US $1.61 |
||
