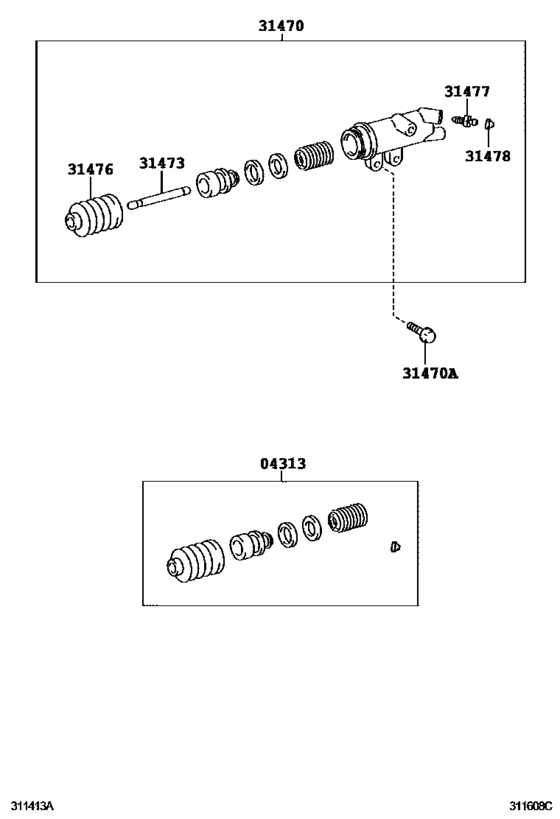

Clutch Release Cylinder ([07.2007 - ] (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04313
|
04313
04313-60182 Cylinder Kit, Clutch Release[11.2010 -] GSJ15..MTM |
04313-60182 |
US $6.87 |
||
|
31470
|
31470
31470-60361 Cylinder Assy, Clutch Release[11.2010 -] GSJ15..MTM |
31470-60361 |
from US $59.68 |
||
|
31470A
|
31470A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[11.2010 -] GSJ15..MTM *8-1.25PX25-25 |
91611-B0825 |
from US $1.08 |
||
|
31473
|
31473
31473-60160 Rod, Clutch Release Cylinder Push, No.1[11.2010 -] GSJ15..MTM |
31473-60160 |
US $9.90 |
||
|
31476
|
31476
31476-36010 Boot, Clutch Release Cylinder[11.2010 -] GSJ15..MTM |
31476-36010 |
US $5.94 |
||
|
31477
|
31477
47547-12010 Plug, Bleeder(For Release Cylinder)[11.2010 -] GSJ15..MTM |
47547-12010 |
from US $2.26 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[11.2010 -] GSJ15..MTM |
31478-30010 |
from US $1.48 |
