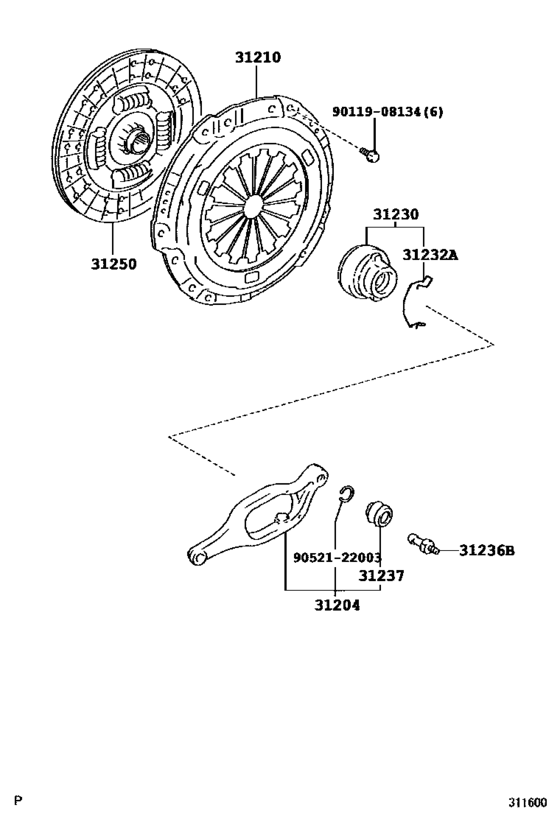

Clutch & Release Fork ([07.2007 - ] (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31204
|
31204
31204-35060 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [11.2010 -] GSJ15..MTM |
31204-35060 |
from US $68.38 |
||
|
31210
|
31210
31210-60280 Cover Assy, Clutch[11.2010 -] GSJ15..MTM |
31210-60280 |
from US $228.13 |
||
|
31230
|
31230
31230-60241 Bearing Assy, Clutch Release[11.2010 -] GSJ15..MTM |
31230-60241 |
from US $81.70 |
||
|
31232A
|
31232A
31232-60050 Clip, Release Bearing HubRELEASE BEARING HUB [11.2010 -] GSJ15..MTM |
31232-60050 |
US $1.02 |
||
|
31236B
|
31236B
31236-35050 Support, Release Fork[11.2010 -] GSJ15..MTM |
31236-35050 |
from US $10.39 |
||
|
31237
|
31237
31237-60010 Boot, Clutch Release Fork SupportCLUTCH RELEASE FORK SUPPORT [11.2010 -] GSJ15..MTM |
31237-60010 |
from US $2.17 |
||
|
31250
|
31250
31250-35451 Disc Assy, Clutch[11.2010 - 07.2017] GSJ15..MTM |
31250-35451 |
US $237.33 |
||
|
9011908134
|
9011908134
90119-08134 BOLT |
90119-08134 |
from US $0.76 |
||
|
9052122003
|
9052122003
90521-22003 Ring, Snap(For Clutch Release Hub) |
90521-22003 |
US $1.79 |
