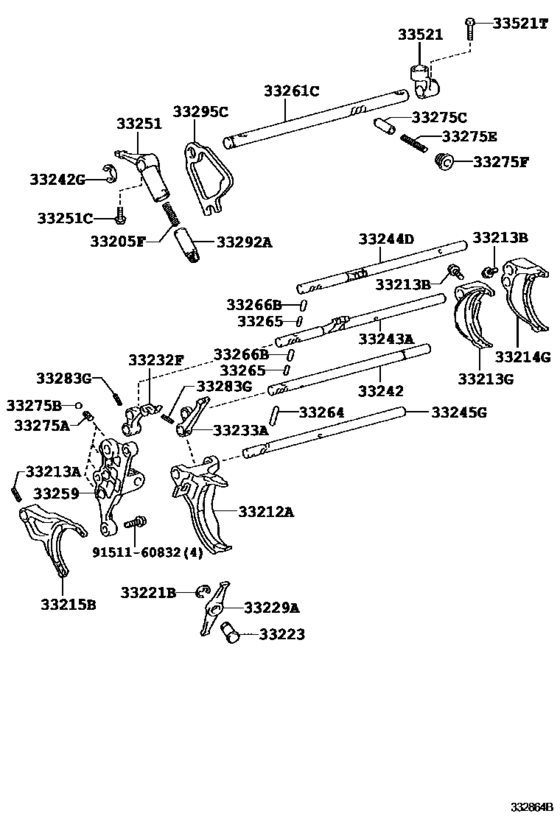

Gear Shift Fork & Lever Shaft (Mtm) ([07.2007 - ] RA61F (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33205F
|
33205F
90501-22066 Spring, Compression(For Select Return)COMPRESSION, NO.1 (FOR SELECT RETURN) [11.2010 -] GSJ15..MTM |
90501-22066 |
US $1.60 |
||
|
33212A
|
33212A
33210-35010 Fork, Gear Shift, No.1GEAR SHIFT, NO.1 [11.2010 -] GSJ15..MTM |
33210-35010 |
US $56.78 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.2010 -] GSJ15..MTM |
90254-05016 |
from US $1.90 |
||
|
33213B
|
33213B
90105-06077 Bolt(For Shift Fork Set)[11.2010 -] GSJ15..MTM |
90105-06077 |
from US $0.99 |
||
|
33213G
|
33213G
33220-35010 Fork, Gear Shift, No.2GEAR SHIFT, NO.2 [11.2010 -] GSJ15..MTM |
33220-35010 |
US $57.83 |
||
|
33214G
|
33214G
33230-35020 Fork, Gear Shift, No.3GEAR SHIFT, NO.3 [11.2010 -] GSJ15..MTM |
33230-35020 |
from US $60.46 |
||
|
33215B
|
33215B
33240-35011
Fork, Gear Shift, No.4
[11.2010 - 02.2014] GSJ15..MTM |
33240-35011 |
— | ||
| replacement | |||||
|
33215B
|
33215B
33240-35012 Fork, Gear Shift, No.4[11.2010 - 02.2014] GSJ15..MTM |
33240-35012 |
from US $33.93 |
||
|
33215B
|
33215B
33240-35012 Fork, Gear Shift, No.4[02.2014 -] GSJ15..MTM |
33240-35012 |
from US $33.93 |
||
|
33221B
|
33221B
96160-01200 Ring, E(For Clutch Release Cable)[11.2010 -] GSJ15..MTM |
96160-01200 |
from US $1.50 |
||
|
33223
|
33223
33223-35040 Pivot, Shift ArmSHIFT ARM [11.2010 -] GSJ15..MTM |
33223-35040 |
US $4.22 |
||
|
33229A
|
33229A
33222-35010 Arm, ShiftRELEASE, NO.1 [11.2010 -] GSJ15..MTM |
33222-35010 |
from US $20.53 |
||
|
33232F
|
33232F
33232-35022
Head, Gear Shift, No.1
[11.2010 - 10.2012] GSJ15..MTM |
33232-35022 |
— | ||
| replacement | |||||
|
33232F
|
33232F
33232-35023
Head, Gear Shift, No.1
[11.2010 - 10.2012] GSJ15..MTM |
33232-35023 |
— | ||
|
33232F
|
33232F
33232-35023
Head, Gear Shift, No.1
[10.2012 -] GSJ15..MTM |
33232-35023 |
— | ||
|
33233A
|
33233A
33233-35032
Head, Gear Shift, No.2
[11.2010 -] GSJ15..MTM |
33233-35032 |
— | ||
|
33242
|
33242
33242-35080 Shaft, Gear Shift Fork, No.1GEAR SHIFT FORK, NO.1 [11.2010 -] GSJ15..MTM |
33242-35080 |
US $35.82 |
||
|
33242G
|
33242G
96160-01500 Ring, E(For Reverse Shift Arm)[11.2010 -] GSJ15..MTM |
96160-01500 |
US $3.58 |
||
|
33243A
|
33243A
33243-35092
Shaft, Gear Shift Fork, No.2
[11.2010 -] GSJ15..MTM |
33243-35092 |
— | ||
|
33244D
|
33244D
33244-35101
Shaft, Gear Shift Fork, No.3
[11.2010 -] GSJ15..MTM |
33244-35101 |
— | ||
|
33245G
|
33245G
33245-35100
Shaft, Gear Shift Fork, No.4
[11.2010 - 01.2014] GSJ15..MTM |
33245-35100 |
— | ||
| replacement | |||||
|
33245G
|
33245G
33245-35101
Shaft, Gear Shift Fork, No.4
[11.2010 - 01.2014] GSJ15..MTM |
33245-35101 |
— | ||
|
33245G
|
33245G
33245-35101
Shaft, Gear Shift Fork, No.4
[01.2014 -] GSJ15..MTM |
33245-35101 |
— | ||
|
33251
|
33251
33251-35180
Lever, Shift & Select
[11.2010 -] GSJ15..MTM |
33251-35180 |
— | ||
|
33251C
|
33251C
90105-09007
Bolt, Set (For Shift & Select Lever)
[11.2010 -] GSJ15..MTM |
90105-09007 |
— | ||
|
33259
|
33259
33259-35010
Bracket, Shift Interlock
[11.2010 -] GSJ15..MTM |
33259-35010 |
— | ||
|
33261C
|
33261C
33261-35180
Shaft, Shift & Select Lever
[11.2010 -] GSJ15..MTM |
33261-35180 |
— | ||
|
33264
|
33264
90250-06036
Pin, Or Ball, Shift Inter Lock, No.1
[11.2010 -] GSJ15..MTM L=24.6,OD=6 |
90250-06036 |
— | ||
|
33265
|
33265
33265-22010 Pin, Shift Inter Lock, No.2[11.2010 -] GSJ15..MTM L=11.2,OD=4 |
33265-22010 |
US $1.89 |
||
|
33266B
|
33266B
33266-22010 Pin, Shift Inter Lock, No.2[11.2010 -] GSJ15..MTM |
33266-22010 |
US $2.04 |
||
|
33275A
|
33275A
90501-12212 Ball (For Shift Inter Lock)COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) [11.2010 -] GSJ15..MTM L=13.5 |
90501-12212 |
US $1.02 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.2010 -] GSJ15..MTM |
90360-10003 |
from US $1.16 |
||
|
33275C
|
33275C
33292-20010 Pin, Lock BallLOCK BALL NO.2 [11.2010 -] GSJ15..MTM |
33292-20010 |
US $25.33 |
||
|
33275E
|
33275E
90501-12211 Spring, Compression (For Shift Detent Ball)COMPRESSION (FOR SHIFT DETENT BALL) [11.2010 -] GSJ15..MTM |
90501-12211 |
US $1.31 |
||
|
33275F
|
33275F
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[11.2010 -] GSJ15..MTM |
90341-16013 |
US $2.97 |
||
|
33283G
|
33283G
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.2010 -] GSJ15..MTM |
90254-05001 |
from US $0.95 |
||
|
33292A
|
33292A
33292-35010 Pin, Lock BallLOCK BALL [11.2010 -] GSJ15..MTM |
33292-35010 |
US $2.91 |
||
|
33295C
|
33295C
33295-35010 Cam, Shift & SelectSHIFT & SELECT [11.2010 -] GSJ15..MTM |
33295-35010 |
US $9.32 |
||
|
33521
|
33521
33521-35440
Housing, Shift Lever
[11.2010 -] GSJ15..MTM |
33521-35440 |
— | ||
|
33521T
|
33521T
90105-09007
Bolt, Set (For Shift & Select Lever)
[11.2010 -] GSJ15..MTM |
90105-09007 |
— | ||
|
9151160832
|
9151160832
91511-60832 Bolt, Flange(For Select Stopper Block) |
91511-60832 |
US $1.02 |
||
