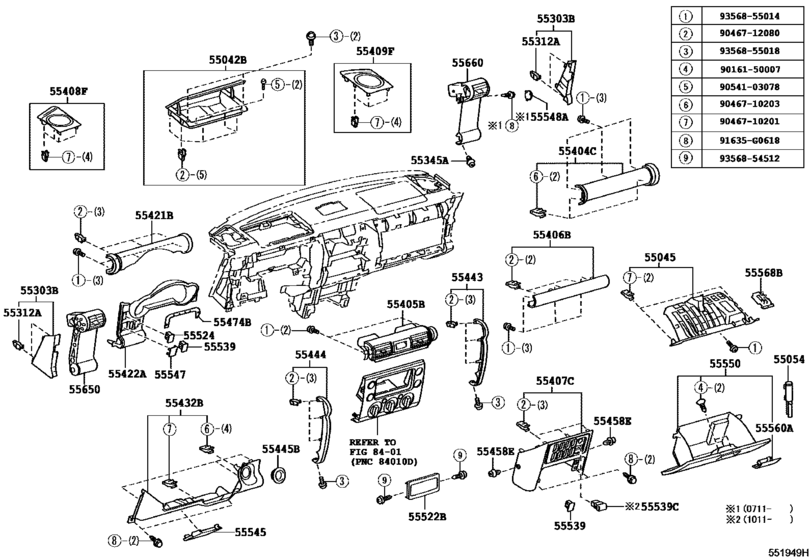

Instrument Panel & Glove Compartment ([07.2007 - ] (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55042B
|
55042B
55042-35010-B0 Door Sub-Assy, Instrument Panel Box, No.2INSTRUMENT PANEL BOX, NO.2 [11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
55042-35010-B0 |
US $104.83 |
||
|
55045
|
55045
55045-35130
Panel Sub-Assy, Instrument Panel Finish, Lower
[11.2010 - 06.2016] GSJ15..LHD |
55045-35130 |
— | ||
| replacement | |||||
|
55045
|
55045
55045-35131
Panel Sub-Assy, Instrument Panel Finish, Lower
[11.2010 - 06.2016] GSJ15..LHD |
55045-35131 |
— | ||
|
55045
|
55045
55045-35131
Panel Sub-Assy, Instrument Panel Finish, Lower
[07.2016 -] GSJ15..LHD |
55045-35131 |
— | ||
|
55054
|
55054
55054-33060 Stopper Sub-Assy, Glove Compartment Door[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
55054-33060 |
from US $14.88 |
||
|
55303B
|
55303B
55302-35010-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1#,LH |
55302-35010-B0 |
US $19.80 |
||
|
55303B
|
55303B
55303-35020-B0 Panel Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1#,RH |
55303-35020-B0 |
US $19.80 |
||
|
55312A
|
55312A
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90467-10201 |
from US $0.87 |
||
|
55345A
|
55345A
64726-52010-B1 Clip, Instrument Panel, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
64726-52010-B1 |
from US $0.89 |
||
|
55404C
|
55404C
55403-35010-B0
Panel Sub-Assy, Instrument Cluster Finish, No.2
[11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
55403-35010-B0 |
— | ||
|
55405B
|
55405B
55405-35351-B0 Panel Sub-Assy, Instrument Cluster Finish, Center[11.2010 - 01.2011] GSJ15 DK.GRAY,TRIM1# |
55405-35351-B0 |
US $139.78 |
||
| replacement | |||||
|
55405B
|
55405B
55405-35352-B0 Panel Sub-Assy, Instrument Cluster Finish, Center[11.2010 - 01.2011] GSJ15 DK.GRAY,TRIM1# |
55405-35352-B0 |
from US $113.57 |
||
|
55405B
|
55405B
55405-35352-B0 Panel Sub-Assy, Instrument Cluster Finish, Center[02.2011 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55405-35352-B0 |
from US $113.57 |
||
|
55406B
|
55406B
55406-35041-B0 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
55406-35041-B0 |
from US $21.96 |
||
|
55407C
|
55407C
55407-35090-B0 Cover Sub-Assy, Instrument, LowerINSTRUMENT, LOWER [11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
55407-35090-B0 |
US $84.91 |
||
|
55408F
|
55408F
55408-35191-B0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55408-35191-B0 |
US $26.35 |
||
|
55409F
|
55409F
55409-35011-B0 Panel Sub-Assy, Instrument Panel Speaker, No.2INSTRUMENT PANEL SPEAKER, NO.2 [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55409-35011-B0 |
US $26.35 |
||
|
55421B
|
55421B
55421-35010-B0 Panel, Instrument Cluster Finish, UpperINSTRUMENT CLUSTER FINISH, UPPER [11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
55421-35010-B0 |
US $40.19 |
||
|
55422A
|
55422A
55422-35010-B0 Panel, Instrument Cluster Finish, LowerINSTRUMENT CLUSTER FINISH, LOWER [11.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55422-35010-B0 |
US $88.82 |
||
| replacement | |||||
|
55422A
|
55422A
55422-35011-B0 Panel, Instrument Cluster Finish, Lower[11.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55422-35011-B0 |
US $106.32 |
||
|
55422A
|
55422A
55422-35011-B0 Panel, Instrument Cluster Finish, Lower[07.2016 -] GSJ15..LHD DK.GRAY,TRIM1# |
55422-35011-B0 |
US $106.32 |
||
|
55432B
|
55432B
55046-35070-B0
Panel, Instrument Panel Finish, Lower
[11.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55046-35070-B0 |
— | ||
| replacement | |||||
|
55432B
|
55432B
55046-35071-B0
Panel, Instrument Panel Finish, Lower
[11.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55046-35071-B0 |
— | ||
|
55432B
|
55432B
55046-35071-B0
Panel, Instrument Panel Finish, Lower
[07.2016 - 08.2016] GSJ15..GCC DK.GRAY,TRIM1# |
55046-35071-B0 |
— | ||
|
55432B
|
55432B
55046-35090-B0 Panel, Instrument Panel Finish, Lower[08.2016 -] GSJ15..GCC DK.GRAY,TRIM1# |
55046-35090-B0 |
US $119.04 |
||
|
55443
|
55443
55011-35011 Garnish, Instrument Panel, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
55011-35011 |
US $23.41 |
||
|
55444
|
55444
55012-35011 Garnish, Instrument Panel, Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
55012-35011 |
US $23.41 |
||
|
55445B
|
55445B
55445-60100-B2 Plate, Instrument Panel FinishINSTRUMENT PANEL FINISH [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55445-60100-B2 |
from US $2.92 |
||
|
55458E
|
55458E
64726-52010-B1 Clip, Instrument Panel, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
64726-52010-B1 |
from US $0.89 |
||
|
55474B
|
55474B
55474-35030-B0 Garnish, Instrument Cluster Finish PanelINSTRUMENT CLUSTER FINISH PANEL [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55474-35030-B0 |
US $2.91 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[11.2010 -] GSJ15..GEN;GSJ15..MTM..GCC |
55522-52020 |
from US $13.78 |
||
|
55524
|
55524
55524-51010-B2 Cover, Switch Bace Hole[11.2010 -] GSJ15..GCC DK.GRAY,TRIM1# |
55524-51010-B2 |
US $5.59 |
||
|
55539
|
55539
55539-48030-B1 Cover, Spare Switch HoleSPARE SWITCH HOLE [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55539-48030-B1 |
from US $3.33 |
||
|
55539C
|
55539C
55539-58060-C0 Cover, Spare Switch Hole[11.2010 -] GSJ15..MTM;GSJ15..ATM..GEN..LHD BLACK,TRIM1# |
55539-58060-C0 |
from US $4.50 |
||
|
55545
|
55545
55545-35040-B0 Cover, Fuse Box OpeningFUSE BOX OPENING [11.2010 -] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
55545-35040-B0 |
from US $12.44 |
||
|
55547
|
55547
55547-37010-B1
Cover, Remote Control Mirror Hole
[11.2010 -] GSJ15..GCC DK.GRAY,TRIM1# |
55547-37010-B1 |
— | ||
|
55548A
|
55548A
55548-35010 Cover, Instrument Panel Hole[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
55548-35010 |
US $3.14 |
||
|
55550
|
55550
55550-35080-B0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [11.2010 - 12.2010] GSJ15..LHD DK.GRAY,TRIM1# |
55550-35080-B0 |
US $196.56 |
||
| replacement | |||||
|
55550
|
55550
55550-35082-B0
Door Assy, Glove Compartment
[11.2010 - 12.2010] GSJ15..LHD DK.GRAY,TRIM1# |
55550-35082-B0 |
— | ||
|
55550
|
55550
55550-35081-B0 Door Assy, Glove Compartment[12.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55550-35081-B0 |
US $163.07 |
||
| replacement | |||||
|
55550
|
55550
55550-35082-B0
Door Assy, Glove Compartment
[12.2010 - 06.2016] GSJ15..LHD DK.GRAY,TRIM1# |
55550-35082-B0 |
— | ||
|
55550
|
55550
55550-35082-B0
Door Assy, Glove Compartment
[07.2016 -] GSJ15..LHD DK.GRAY,TRIM1# |
55550-35082-B0 |
— | ||
|
55560A
|
55560A
55506-44010-B0 Lock Sub-Assy, Glove Compartment Door[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
55506-44010-B0 |
from US $10.83 |
||
|
55568B
|
55568B
55568-35030 Plate, Glove Compartment Door Pad[11.2010 -] GSJ15..(GCC,GEN)..LHD |
55568-35030 |
from US $6.81 |
||
|
55650
|
55650
55650-35080
Register Assy, Instrument Panel, No.1
[11.2010 - 02.2011] GSJ15..LHD |
55650-35080 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-35081 Register Assy, Instrument Panel, No.1[11.2010 - 02.2011] GSJ15..LHD |
55650-35081 |
from US $136.86 |
||
|
55650
|
55650
55650-35081 Register Assy, Instrument Panel, No.1[03.2011 -] GSJ15..LHD |
55650-35081 |
from US $136.86 |
||
|
55660
|
55660
55660-35130 Register Assy, Instrument Panel, No.2[11.2010 - 02.2011] GSJ15 |
55660-35130 |
US $152.88 |
||
| replacement | |||||
|
55660
|
55660
55660-35131 Register Assy, Instrument Panel, No.2[11.2010 - 02.2011] GSJ15 |
55660-35131 |
from US $128.88 |
||
|
55660
|
55660
55660-35131 Register Assy, Instrument Panel, No.2[03.2011 -] GSJ15..CHI,GCC,GEN,SA |
55660-35131 |
from US $128.88 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.74 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.63 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.59 |
||
