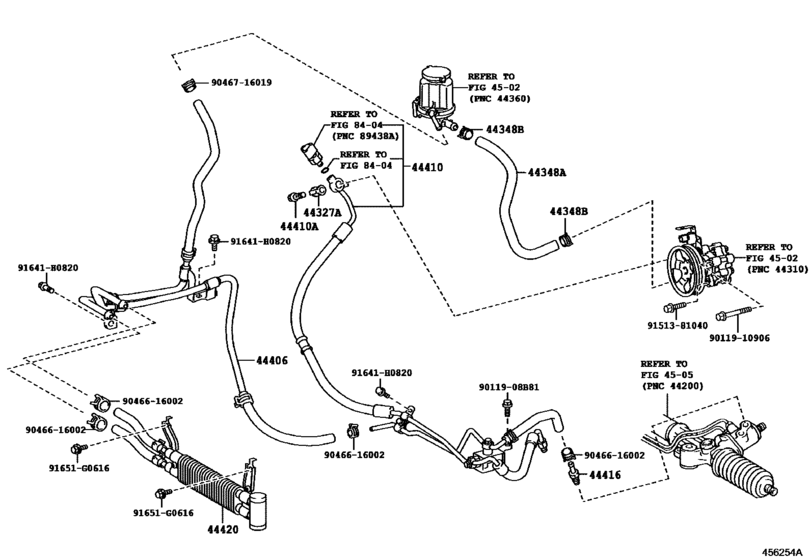

Power Steering Tube ([08.2012 - ] (1208- )GCC) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30040 Gasket, Pressure Port, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44327-30040 |
from US $1.88 |
||
|
44348A
|
44348A
44348-60430 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44348-60430 |
from US $36.25 |
||
|
44348B
|
44348B
90467-21010 Clip(For Ventilation Hose No.2)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90467-21010 |
from US $2.47 |
||
|
44406
|
44406
44406-35050
Tube Sub-Assy, Return
[08.2012 -] GSJ15..GCC |
44406-35050 |
— | ||
|
44410
|
44410
44410-35780 Tube Assy, Pressure FeedPRESSURE FEED [11.2010 - 08.2012] GSJ15..GCC |
44410-35780 |
US $456.63 |
||
|
44410
|
44410
44410-35790 Tube Assy, Pressure Feed[08.2012 -] GSJ15..GCC |
44410-35790 |
US $325.83 |
||
|
44410A
|
44410A
90401-16034 Bolt, Union(For Pressure Feed Tube)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90401-16034 |
from US $6.81 |
||
|
44416
|
44416
44416-60450 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44416-60450 |
US $10.75 |
||
|
44420
|
44420
44420-35260
Cooler Assy, Oil
[08.2012 -] GSJ15..GCC |
44420-35260 |
— | ||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011908B81
|
9011908B81
90119-08B81 New Genuine Part |
90119-08B81 |
US $1.49 |
||
|
9011910906
|
9011910906
90119-10906 New Genuine Part |
90119-10906 |
US $3.03 |
||
|
9046616002
|
9046616002
90466-16002 Clamp, Hose(For Oil Cooler) |
90466-16002 |
from US $3.12 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9151381040
|
9151381040
91513-81040 New Genuine Part |
91513-81040 |
US $0.73 |
