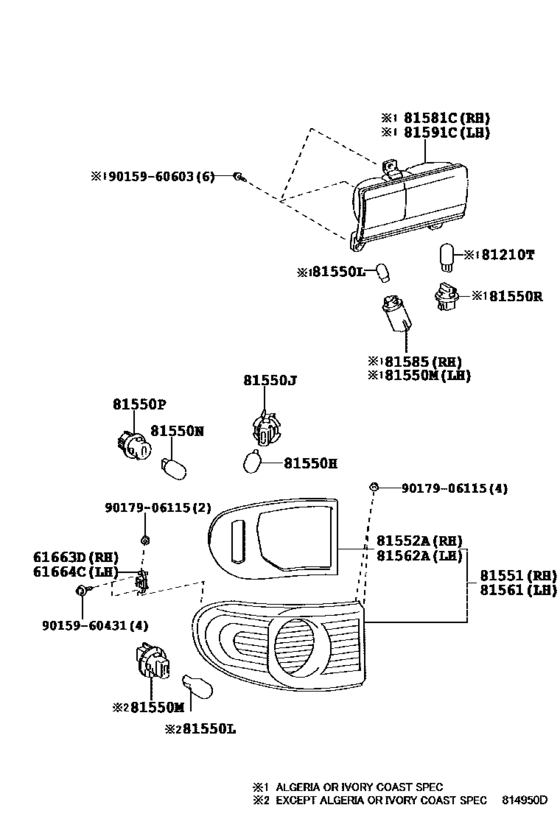

Rear Combination Lamp ([07.2007 - ] (0707- )GCC,GEN..LHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663D
|
61663D
61663-35010 Support, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
61663-35010 |
from US $9.26 |
||
|
61664C
|
61664C
61664-35010 Support, Rear Combination Lamp, Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
61664-35010 |
from US $12.14 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90981-13044 |
from US $3.46 |
||
|
81550J
|
81550J
90075-60002 Socket, Tail & Stop Lamp[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90075-60002 |
from US $3.91 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[11.2010 -] GSJ15..(GCC,GEN)..LHD |
90981-15021 |
from US $3.14 |
||
|
81550M
|
81550M
90075-60026 Socket, Front Turn Signal Lamp[11.2010 -] GSJ15..(GCC,GEN)..LHD |
90075-60026 |
from US $6.54 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90981-11059 |
from US $3.15 |
||
|
81550P
|
81550P
90075-60021 Socket, Lamp[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90075-60021 |
from US $6.27 |
||
|
81551
|
81551
81551-35340 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81551-35340 |
US $243.15 |
||
| replacement | |||||
|
81551
|
81551
81551-35341 Lens, Rear Combination Lamp, Rh[11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81551-35341 |
from US $188.67 |
||
|
81551
|
81551
81551-35341 Lens, Rear Combination Lamp, Rh[08.2011 -] GSJ15..(GCC,GEN)..LHD |
81551-35341 |
from US $188.67 |
||
|
81552A
|
81552A
81552-35341 Gasket, Rear Combination Lamp, Rh[11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81552-35341 |
US $19.66 |
||
|
81561
|
81561
81561-35300
Lens, Rear Combination Lamp, Lh
[11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81561-35300 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-35301 Lens, Rear Combination Lamp, Lh[11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81561-35301 |
from US $186.50 |
||
|
81561
|
81561
81561-35301 Lens, Rear Combination Lamp, Lh[08.2011 -] GSJ15..(GCC,GEN)..LHD |
81561-35301 |
from US $186.50 |
||
|
81562A
|
81562A
81562-35301 Gasket, Rear Combination Lamp, Lh[11.2010 - 08.2011] GSJ15..(GCC,GEN)..LHD |
81562-35301 |
US $21.14 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
