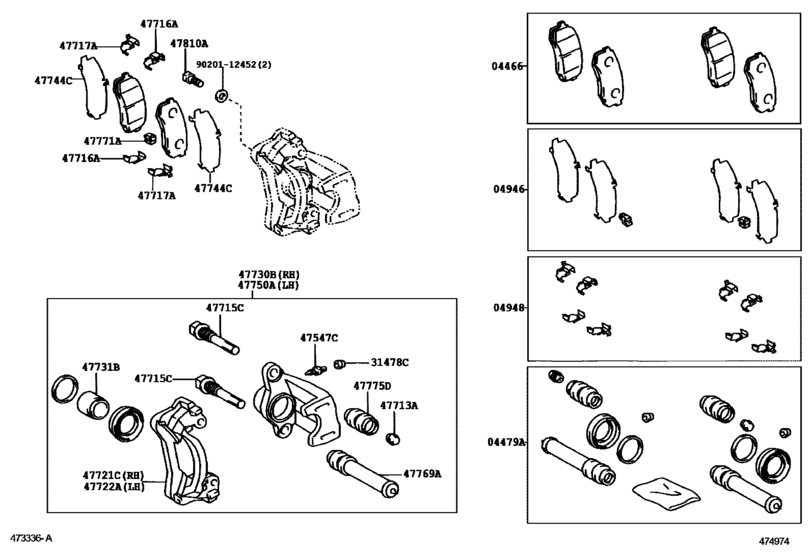

Rear Disc Brake Caliper & Dust Cover ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-60090 Pad Kit, Disc Brake, Rear[11.2010 -] GSJ15..CHI,GCC,GEN,SA MARK SUMITOMO PS549 |
04466-60090 |
from US $97.64 |
||
|
04479A
|
04479A
04479-35060 Cylinder Kit, Disc Brake, Rear[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
04479-35060 |
from US $46.15 |
||
|
04946
|
04946
04946-30100 Shim Kit, Anti Squeal(For Rear Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
04946-30100 |
from US $13.44 |
||
|
04948
|
04948
04947-22050 Fitting Kit, Disc Brake, Front[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
04947-22050 |
from US $23.45 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
31478-30010 |
from US $1.48 |
||
|
47547C
|
47547C
47547-12030 Plug, Air Vent[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47547-12030 |
from US $4.60 |
||
|
47713A
|
47713A
90950-01301 Plug, Hole(For Rear Disc Brake Cylinder)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90950-01301 |
from US $1.06 |
||
|
47715C
|
47715C
47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47715-22010 |
from US $8.93 |
||
|
47716A
|
47716A
47716-22010 Plate, Pad Support, No.1(For Front Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47716-22010 |
from US $2.79 |
||
|
47717A
|
47717A
47717-22010 Plate, Pad Support, No.2(For Front Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47717-22010 |
from US $2.83 |
||
|
47721C
|
47721C
47721-60020 Mounting, Rear Disc Brake Cylinder, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47721-60020 |
from US $60.99 |
||
|
47722A
|
47722A
47722-60020 Mounting, Rear Disc Brake Cylinder, Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47722-60020 |
from US $60.31 |
||
|
47730B
|
47730B
47730-35170 Cylinder Assy, Rear Disc Brake, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47730-35170 |
from US $303.35 |
||
|
47731B
|
47731B
47731-35070 Piston, Rear Disc Brake[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47731-35070 |
from US $17.29 |
||
|
47744C
|
47744C
47744-60010 Shim, Anti-Squeal(For Rear Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47744-60010 |
from US $3.05 |
||
|
47750A
|
47750A
47750-35170 Cylinder Assy, Disc Brake, Rear Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47750-35170 |
US $449.28 |
||
|
47769A
|
47769A
47769-22010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47769-22010 |
from US $2.20 |
||
|
47771A
|
47771A
47771-22030 Plate, Pad Wear Indicator, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47771-22030 |
from US $2.51 |
||
|
47775D
|
47775D
47775-22010 Boot, Bush Dust(For Front Disc Brake)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
47775-22010 |
from US $1.94 |
||
|
47810A
|
47810A
90101-12167 Bolt, Hexagon(For Rear Caliper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90101-12167 |
from US $1.10 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.08 |
