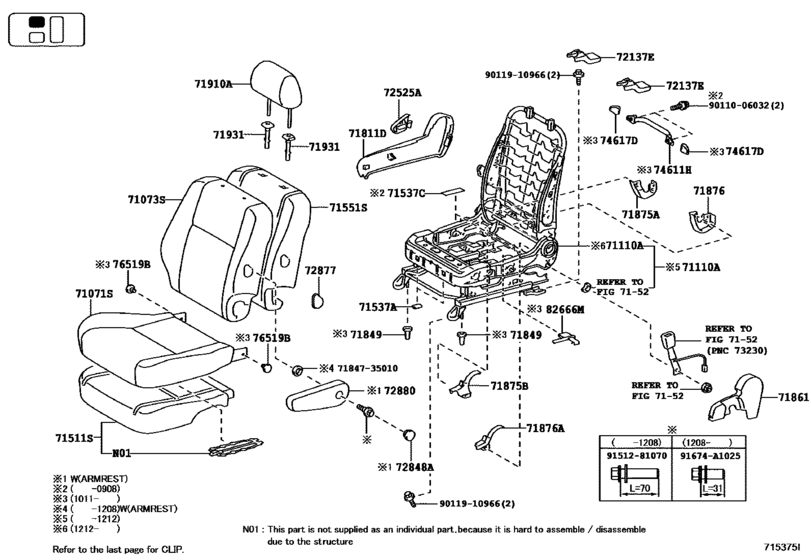

Seat & Seat Track ([07.2007 - ] PASSENGER SEAT (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-3G433-B1 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [11.2010 - 07.2013] GSJ15..LHD DK.GRAY,TRIM1# |
71071-3G433-B1 |
US $272.27 |
||
| replacement | |||||
|
71071S
|
71071S
71071-3G434-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[11.2010 - 07.2013] GSJ15..LHD DK.GRAY,TRIM1# |
71071-3G434-B1 |
US $247.52 |
||
|
71071S
|
71071S
71071-3G434-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[08.2013 -] GSJ15..LHD DK.GRAY,TRIM1# |
71071-3G434-B1 |
US $247.52 |
||
|
71073S
|
71073S
71073-35C00-B0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2010 - 08.2012] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
71073-35C00-B0 |
— | ||
|
71073S
|
71073S
71073-35D00-B0
Cover, Front Seat Back, Rh(For Separate Type)
[08.2012 - 07.2013] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
71073-35D00-B0 |
— | ||
| replacement | |||||
|
71073S
|
71073S
71073-35D01-B0
Cover, Front Seat Back, Rh(For Separate Type)
[08.2012 - 07.2013] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
71073-35D01-B0 |
— | ||
|
71073S
|
71073S
71073-35D01-B0
Cover, Front Seat Back, Rh(For Separate Type)
[08.2013 -] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
71073-35D01-B0 |
— | ||
|
71110A
|
71110A
71110-35180
Frame Assy, Front Seat W/adjuster, Rh
[11.2010 - 08.2012] GSJ15..(GCC,GEN)..LHD |
71110-35180 |
— | ||
|
71110A
|
71110A
71110-35400
Frame Assy, Front Seat W/adjuster, Rh
[08.2012 - 12.2012] GSJ15..(GCC,GEN)..LHD |
71110-35400 |
— | ||
| replacements | |||||
|
71110A
|
71110A
71110-35401 Frame Assy, Front Seat W/adjuster, Rh[08.2012 - 12.2012] GSJ15..(GCC,GEN)..LHD |
71110-35401 |
US $370.42 |
||
|
71110A
|
71110A
73214-75010 Plate, Front Seat Belt Anchor[08.2012 - 12.2012] GSJ15..(GCC,GEN)..LHD |
73214-75010 |
US $3.05 |
||
|
71110A
|
71110A
71110-35401 Frame Assy, Front Seat W/adjuster, Rh[12.2012 -] GSJ15..(GCC,GEN)..LHD |
71110-35401 |
US $370.42 |
||
|
71511S
|
71511S
71501-35120
Pad, Front Seat Cushion, Rh(For Separate Type)
[11.2010 -] GSJ15..LHD |
71501-35120 |
— | ||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
71537-26010 |
US $1.08 |
||
|
71551S
|
71551S
71505-35020
Pad, Front Seat Back, Rh(For Separate Type)
[11.2010 - 08.2012] GSJ15..(GCC,GEN)..LHD |
71505-35020 |
— | ||
|
71811D
|
71811D
71811-35130-B1 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [11.2010 -] GSJ15..LHD DK.GRAY,TRIM1# |
71811-35130-B1 |
US $34.80 |
||
|
71849
|
71849
71848-33010 Cap, Rear Seat[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
71848-33010 |
US $1.79 |
||
|
71861
|
71861
71861-60100-B3 Shield, Front Seat Cushion, Inner Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
71861-60100-B3 |
US $23.59 |
||
|
71875A
|
71875A
71875-58060 Cover, Reclining Adjuster Inside, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
71875-58060 |
US $8.88 |
||
|
71875B
|
71875B
71875-60160-B3 Cover, Reclining Adjuster Inside, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
71875-60160-B3 |
US $3.93 |
||
|
71876
|
71876
71876-58060 Cover, Reclining Adjuster Inside, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
71876-58060 |
US $8.88 |
||
|
71876A
|
71876A
71876-60160-B3 Cover, Reclining Adjuster Inside, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
71876-60160-B3 |
US $3.93 |
||
|
71910A
|
71910A
71910-35731-B1
Headrest Assy, Front Seat
[11.2010 - 12.2014] GSJ15..LHD DK.GRAY,TRIM1# |
71910-35731-B1 |
— | ||
|
71931
|
71931
71930-52030-B0 Support Assy, Front Seat Headrest[11.2010 -] GSJ15..CHI,GCC,GEN,SA W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
71930-52030-B0 |
from US $10.36 |
||
|
71931
|
71931
71931-42020-B4 Support Assy, Front Seat Headrest[11.2010 -] GSJ15..CHI,GCC,GEN,SA W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
71931-42020-B4 |
US $8.60 |
||
|
72137E
|
72137E
72137-35090-B0 Cover, Seat Track, No.1SEAT TRACK, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
72137-35090-B0 |
US $10.63 |
||
|
72525A
|
72525A
72525-60100-B3 Handle, Reclining Adjuster Release, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
72525-60100-B3 |
US $8.56 |
||
|
72848A
|
72848A
72848-28030-B5 Cover, Rear Seat Armrest Hole Rh[08.2012 -] GSJ15..(GEN,SA)..RHD DK.GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DK.GRAY,TRIM1# |
72848-28030-B5 |
from US $2.55 |
||
|
72848A
|
72848A
72848-60010-B3 Cap, Seat Armrest, No.1SEAT ARMREST, NO.1 [11.2010 - 08.2012] GSJ15..RHD DK.GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DK.GRAY,TRIM1# |
72848-60010-B3 |
from US $3.02 |
||
|
72877
|
72877
72848-35010-B0
Cover, Seat Armrest, Rh
[11.2010 - 08.2012] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
72848-35010-B0 |
— | ||
|
72877
|
72877
72848-35020-B0
Cover, Seat Armrest, Rh
[08.2012 -] GSJ15..(GCC,GEN)..LHD DK.GRAY,TRIM1# |
72848-35020-B0 |
— | ||
|
72880
|
72880
72880-35022-B1
Armrest Assy, Seat, C Rh
[11.2010 - 08.2012] GSJ15..RHD DARK GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DARK GRAY,TRIM1# |
72880-35022-B1 |
— | ||
| replacement | |||||
|
72880
|
72880
72880-35023-B1 Armrest Assy, Seat, C Rh[11.2010 - 08.2012] GSJ15..RHD DARK GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DARK GRAY,TRIM1# |
72880-35023-B1 |
from US $276.06 |
||
|
72880
|
72880
72880-35030-B0 Armrest Assy, Seat, C Rh[08.2012 - 07.2013] GSJ15..ARL,SA DARK GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DARK GRAY,TRIM1# |
72880-35030-B0 |
US $269.36 |
||
| replacement | |||||
|
72880
|
72880
72880-35031-B0 Armrest Assy, Seat, C Rh[08.2012 - 07.2013] GSJ15..ARL,SA DARK GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DARK GRAY,TRIM1# |
72880-35031-B0 |
from US $239.97 |
||
|
72880
|
72880
72880-35031-B0 Armrest Assy, Seat, C Rh[08.2013 -] GSJ15..(GEN,SA)..RHD DARK GRAY,TRIM1#; GSJ15..(GCC,GEN)..LHD FRONT ARMREST-PASSENGER SEAT(DOP),DARK GRAY,TRIM1# |
72880-35031-B0 |
from US $239.97 |
||
|
74611H
|
74611H
74607-35010-B0 Grip, Assist[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
74607-35010-B0 |
US $26.06 |
||
|
74617D
|
74617D
74617-35050-B0 Plug, Assist Grip[11.2010 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
74617-35050-B0 |
US $3.94 |
||
|
76519B
|
76519B
76519-42010 Clip, Rear Seat Cushion Cover[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
76519-42010 |
US $1.43 |
||
|
82666M
|
82666M
82666-58030 Holder, Connector[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
82666-58030 |
US $18.93 |
||
|
91674A1025
|
91674A1025
91674-A1025 BOLT FLANGE |
91674-A1025 |
from US $1.10 |
||
|
7184735010
|
7184735010
71847-35010 Ornament, Front Seat Bracket, Rh |
71847-35010 |
from US $1.29 |
||
|
9011006032
|
9011006032
90110-06032 BOLT HEXAGON SOCKET |
90110-06032 |
US $0.73 |
||
|
9011910966
|
9011910966
90119-10966 BOLT WWASHER |
90119-10966 |
from US $0.89 |
||
|
9151281070
|
9151281070
91512-81070 BOLT FLANGE |
91512-81070 |
from US $1.35 |
||
