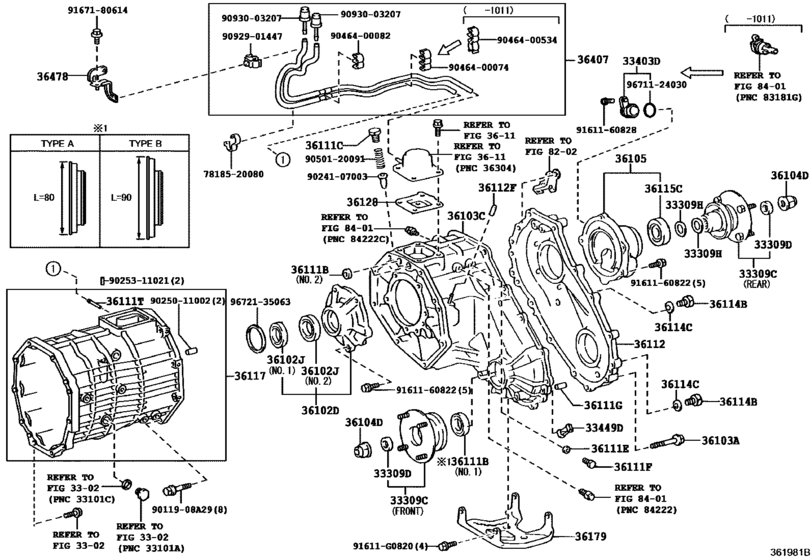

Transfer Case & Extension Housing ([08.2009 - ] (0908- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309C
|
33309C
33309-35111
Flange Sub-Assy, Output Shaft Companion
[11.2010 - 11.2014] GSJ15 FRONT,PNC36111B=T/PA |
33309-35111 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[11.2010 - 11.2014] GSJ15 FRONT,PNC36111B=T/PA |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2010 - 11.2014] GSJ15 FRONT,PNC36111B=T/PA |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[11.2010 - 11.2014] GSJ15 FRONT,PNC36111B=T/PA |
90311-41017 |
from US $7.17 |
||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2010 - 11.2014] GSJ15 FRONT,PNC36111B=T/PA |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[11.2014 -] GSJ15..CHI,GCC,GEN,SA FRONT,PNC36111B=T/PB |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2014 -] GSJ15..CHI,GCC,GEN,SA FRONT,PNC36111B=T/PB |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
33309-35120 Flange Sub-Assy, Output Shaft Companion[11.2010 -] GSJ15..CHI,GCC,GEN,SA REAR |
33309-35120 |
from US $100.04 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90312-23001 |
from US $2.15 |
||
|
33309H
|
33309H
36275-35030 Washer, Transfer Output Shaft[11.2010 -] GSJ15..MTM N=31,OD=38 |
36275-35030 |
from US $1.25 |
||
|
33403D
|
33403D
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
33403-35230 |
from US $19.82 |
||
|
33449D
|
33449D
33449-32020 Magnet, Transmission[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
33449-32020 |
US $11.65 |
||
|
36102D
|
36102D
36102-35080 Retainer Sub-Assy, Transfer Rh BearingTRANSFER RH BEARING [11.2010 -] GSJ15..MTM |
36102-35080 |
US $77.17 |
||
|
36102J
|
36102J
90311-43007 Seal, Oil(For Transfer Case Adapter Rear)[11.2010 -] GSJ15..MTM NO.1 |
90311-43007 |
from US $5.20 |
||
|
36102J
|
36102J
90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[11.2010 -] GSJ15..MTM NO.2; GSJ15..ATM..(CHI,GCC,GEN,SA) |
90311-43008 |
from US $7.17 |
||
|
36103A
|
36103A
90119-08A28 Bolt (For Transfer Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA *8-1.25PX55-30 |
90119-08A28 |
US $1.51 |
||
|
36103C
|
36103C
36103-60350
Case, Transfer, Front
[11.2010 -] GSJ15..MTM |
36103-60350 |
— | ||
|
36104D
|
36104D
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90179-22016 |
from US $2.30 |
||
|
36105
|
36105
36105-60040 Housing Sub-Assy, Transfer Extension, Front[11.2010 -] GSJ15..MTM |
36105-60040 |
US $68.43 |
||
|
36111B
|
36111B
90311-15008 Seal, Oil (For Transfer Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA NO.2 |
90311-15008 |
from US $3.76 |
||
|
36111B
|
36111B
90311-41013 Seal, Oil (For Transfer Case)[11.2010 - 11.2014] GSJ15 NO.1T/P A:REF.ILLUST |
90311-41013 |
from US $7.17 |
||
|
36111B
|
36111B
90311-41017 Seal, Oil (For Transfer Case)[11.2014 -] GSJ15..CHI,GCC,GEN,SA NO.1T/P B:REF.ILLUST |
90311-41017 |
from US $7.17 |
||
|
36111C
|
36111C
90341-14012 Plug (For Transfer Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90341-14012 |
US $3.40 |
||
|
36111E
|
36111E
90430-18008 Gasket[11.2010 -] GSJ15..MTM |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36111E
|
36111E
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2010 -] GSJ15..MTM |
90430-T0021 |
US $0.99 |
||
|
36111F
|
36111F
90341-18006 Plug (No magnet)[11.2010 -] GSJ15..MTM |
90341-18006 |
from US $3.23 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[11.2010 -] GSJ15..CHI,GCC,GEN,SA L=14,OD=10 |
90250-10214 |
from US $1.35 |
||
|
36111T
|
36111T
90441-05001 Tube (For Transfer Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90441-05001 |
US $2.33 |
||
|
36112
|
36112
36112-60180 Case, Transfer, Rear[11.2010 -] GSJ15..MTM |
36112-60180 |
US $227.14 |
||
|
36112F
|
36112F
90339-04024 Cap, Transfer, Rear Case[11.2010 -] GSJ15..MTM |
90339-04024 |
US $1.79 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90341-18006 |
from US $3.23 |
||
|
36114C
|
36114C
90430-18008 Gasket[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90430-T0021 |
US $0.99 |
||
|
36115C
|
36115C
90311-41007
Seal, Oil (Transfer Extension Front Housing Sub-Assy)
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90311-41007 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90311-41020 |
from US $6.99 |
||
|
36117
|
36117
33102-35061 Adapter, Transfer[11.2010 -] GSJ15..MTM |
33102-35061 |
US $1,315.24 |
||
|
36128
|
36128
36128-60061 Deflector, Breather Oil[11.2010 -] GSJ15..MTM |
36128-60061 |
US $2.48 |
||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36179-60030 |
US $20.79 |
||
|
36407
|
36407
36407-35050
Hose Sub-Assy, Transfer Breather
[11.2010 -] GSJ15..MTM |
36407-35050 |
— | ||
|
36478
|
36478
36478-60060 Bracket, Transfer BreatherTRANSFER BREATHER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36478-60060 |
US $6.99 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9011908A29
|
9011908A29
90119-08A29 Bolt(For Head To Camshaft Bearing Cap) |
90119-08A29 |
US $1.79 |
||
|
7818520080
|
7818520080
78185-20080 Clamp, Accelerator Control Cable, No.2 |
78185-20080 |
US $2.20 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.87 |
||
|
9025011002
|
9025011002
90250-11002
New Genuine Part
|
90250-11002 |
— | ||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.41 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400534
|
9046400534
90464-00534 New Genuine Part |
90464-00534 |
US $2.33 |
||
|
9050120091
|
9050120091
90501-20091 Spring, Compression (For Transfer Case) |
90501-20091 |
US $0.96 |
||
|
9092901447
|
9092901447
90929-01447 New Genuine Part |
90929-01447 |
US $1.46 |
||
|
9093003207
|
9093003207
90930-03207
New Genuine Part
|
90930-03207 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.15 |
||
|
9672135063
|
9672135063
96721-35063 Ring, O |
96721-35063 |
from US $2.62 |
||
