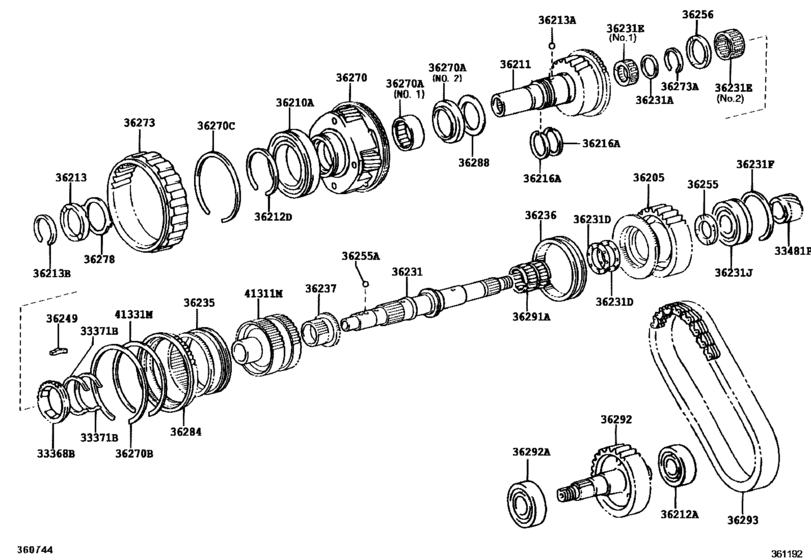

Transfer Gear ([07.2007 - ] (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33368B
|
33368B
33367-60130 Ring, Synchronizer (For Transfer Front Drive Clutch)SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) [11.2010 -] GSJ15..MTM |
33367-60130 |
US $46.88 |
||
|
33371B
|
33371B
33371-36030 Spring, Synchromesh Shifting Key, No.1[11.2010 -] GSJ15..MTM |
33371-36030 |
from US $3.38 |
||
|
33481P
|
33481P
33481-60130 Gear, Speedometer Drive (For Transfer)[11.2010 -] GSJ15..MTM N=11 |
33481-60130 |
US $19.95 |
||
|
36205
|
36205
36205-60020 Sprocket Sub-Assy, Transfer Drive[11.2010 - 07.2013] GSJ15..MTM |
36205-60020 |
US $113.68 |
||
|
36205
|
36205
36205-60040 Sprocket Sub-Assy, Transfer Drive[07.2013 -] GSJ15..MTM |
36205-60040 |
US $68.84 |
||
|
36210A
|
36210A
90363-75001 Bearing (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90363-75001 |
from US $26.56 |
||
|
36211
|
36211
36201-60050 Shaft, Transfer InputTRANSFER INPUT [11.2010 -] GSJ15..MTM |
36201-60050 |
US $160.74 |
||
|
36212A
|
36212A
90363-28013
Bearing, Radial Ball (For Transfer Input Gear)
[11.2010 -] GSJ15..MTM |
90363-28013 |
— | ||
| replacement | |||||
|
36212A
|
36212A
90363-28021 9036328021[11.2010 -] GSJ15..MTM |
90363-28021 |
from US $20.08 |
||
|
36212D
|
36212D
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.45,MARK 1 |
90520-72001 |
US $1.05 |
||
|
36212D
|
36212D
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.50,MARK 2 |
90520-72002 |
US $1.75 |
||
|
36212D
|
36212D
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.55,MARK 3 |
90520-72003 |
US $1.75 |
||
|
36212D
|
36212D
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.60,MARK 4 |
90520-72004 |
US $1.75 |
||
|
36212D
|
36212D
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.65,MARK 5 |
90520-72005 |
US $1.75 |
||
|
36213
|
36213
36213-35020 Stopper, Transfer Input Gear[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36213-35020 |
from US $7.16 |
||
|
36213A
|
36213A
90360-05012 Ball, Reverse Shift Restrict[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90360-05012 |
from US $0.84 |
||
|
36213B
|
36213B
90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.10-2.15,MARK A |
90520-44003 |
US $1.05 |
||
|
36213B
|
36213B
90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.15-2.20,MARK B |
90520-44004 |
US $1.75 |
||
|
36213B
|
36213B
90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.20-2.25,MARK C |
90520-44005 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.25-2.30,MARK D |
90520-44006 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.30-2.35,MARK E |
90520-44007 |
US $1.75 |
||
|
36213B
|
36213B
90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.35-2.40,MARK F |
90520-44008 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.40-2.45,MARK G |
90520-44009 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.45-2.50,MARK H |
90520-44010 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.50-2.55,MARK J |
90520-44011 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.55-2.60,MARK K |
90520-44012 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.60-2.65,MARK L |
90520-44013 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.65-2.70,MARK M |
90520-44014 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.70-2.75,MARK N |
90520-44015 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.75-2.80,MARK P |
90520-44016 |
US $1.75 |
||
|
36213B
|
36213B
90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.80-2.85,MARK Q |
90520-44017 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.85-2.90,MARK R |
90520-44018 |
US $1.75 |
||
|
36213B
|
36213B
90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.90-2.95,MARK S |
90520-44019 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.95-3.00,MARK T |
90520-44020 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=3.00-3.05,MARK U |
90520-44021 |
from US $1.75 |
||
|
36216A
|
36216A
36216-35012 Ring, Transfer Input Shaft Seal, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36216-35012 |
from US $2.24 |
||
|
36231
|
36231
36231-35050 Shaft, Transfer Output, Rear[11.2010 -] GSJ15..MTM |
36231-35050 |
US $139.78 |
||
|
36231A
|
36231A
90560-28004 Spacer (For Transfer Output Shaft)[11.2010 -] GSJ15..MTM T=4.0 |
90560-28004 |
US $0.70 |
||
|
36231D
|
36231D
36275-35020 Washer, Plate (For Transfer Output Shaft)[11.2010 -] GSJ15..MTM |
36275-35020 |
US $2.97 |
||
|
36231E
|
36231E
90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)[11.2010 -] GSJ15..MTM NO.1; GSJ15..ATM..(CHI,GCC,GEN,SA) |
90364-28004 |
from US $23.83 |
||
|
36231E
|
36231E
90364-35009 Bearing, Needle Roller (For Transfer Output Shaft Front)[11.2010 -] GSJ15..MTM NO.2 |
90364-35009 |
from US $13.68 |
||
|
36231F
|
36231F
90520-82001 Ring, Shaft Snap (For Transfer Input Gear)[11.2010 -] GSJ15..MTM T=1.65 |
90520-82001 |
US $3.76 |
||
|
36231J
|
36231J
90363-32040 Bearing, Radial Ball (For Transfer Output Shaft Rear)[11.2010 -] GSJ15..MTM |
90363-32040 |
from US $47.04 |
||
|
36235
|
36235
36235-35031 Sleeve, Transfer High & Low ClutchTRANSFER HIGH & LOW CLUTCH [11.2010 -] GSJ15..MTM |
36235-35031 |
from US $87.99 |
||
|
36236
|
36236
36236-60080 Sleeve, Front Drive Clutch[11.2010 -] GSJ15..MTM |
36236-60080 |
US $32.91 |
||
|
36237
|
36237
36237-60060 Hub, Transfer Clutch[11.2010 -] GSJ15..MTM |
36237-60060 |
US $27.26 |
||
|
36249
|
36249
36249-60030 Key, Synchromesh Shifting, Transfer Drive, No.2SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 [11.2010 -] GSJ15..MTM |
36249-60030 |
US $2.77 |
||
|
36255
|
36255
36255-35030 Spacer, Transfer Output Shaft, No.1[11.2010 -] GSJ15..MTM |
36255-35030 |
US $7.34 |
||
|
36255A
|
36255A
90360-05012 Ball, Reverse Shift Restrict[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90360-05012 |
from US $0.84 |
||
|
36256
|
36256
36256-35030 Spacer, Transfer Output Shaft, No.2[11.2010 -] GSJ15..MTM |
36256-35030 |
US $5.07 |
||
|
36270
|
36270
36270-35040
Gear Assy, Transfer Low Planetary
[11.2010 -] GSJ15..MTM |
36270-35040 |
— | ||
|
36270A
|
36270A
90364-47001
Bearing (For Transfer Input Shaft)
[11.2010 -] GSJ15..CHI,GCC,GEN,SA NO.1 |
90364-47001 |
— | ||
| replacement | |||||
|
36270A
|
36270A
90364-47013 Bearing (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA NO.1 |
90364-47013 |
from US $24.64 |
||
|
36270A
|
36270A
90374-49001 Bearing, Thrust (For Transfer Input Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA NO.2 |
90374-49001 |
from US $14.13 |
||
|
36270B
|
36270B
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[11.2010 -] GSJ15..MTM T=6.0 |
90520-99078 |
US $4.02 |
||
|
36270C
|
36270C
90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90520-99072 |
US $2.62 |
||
|
36273
|
36273
36273-35030 Gear, Transfer Low Planetary Ring[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36273-35030 |
from US $45.08 |
||
|
36273A
|
36273A
90520-29052 Ring, Shaft Snap (For 5Th Gear)[11.2010 -] GSJ15..MTM |
90520-29052 |
US $0.70 |
||
|
36278
|
36278
36278-35020 Washer, Manual Transfer Planetary Carrier[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=0.95-1.05 |
36278-35020 |
from US $2.97 |
||
|
36284
|
36284
36284-35031 Piece, Transfer Low Planetary Gear SplineTRANSFER LOW PLANETARY GEAR SPLINE [11.2010 -] GSJ15..MTM |
36284-35031 |
US $45.86 |
||
|
36288
|
36288
36288-28010 Race, Transfer Thrust Bearing, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
36288-28010 |
from US $8.49 |
||
|
36291A
|
36291A
90364-37013 Bearing (For Transfer Drive Sprocket)[11.2010 -] GSJ15 |
90364-37013 |
from US $13.28 |
||
|
36292
|
36292
36292-35050 Sprocket, Transfer Driven[11.2010 - 07.2013] GSJ15 |
36292-35050 |
from US $161.61 |
||
|
36292
|
36292
36292-35070 Sprocket, Transfer Driven[07.2013 -] GSJ15..CHI,GCC,GEN,SA |
36292-35070 |
US $118.81 |
||
|
36292A
|
36292A
90363-32037 Bearing (For Transfer Driven Sprocket)[11.2010 -] GSJ15..MTM; GSJ15..ATM..(CHI,GCC,GEN,SA) NO.2 |
90363-32037 |
from US $27.66 |
||
|
36293
|
36293
36293-35040 Chain, Transfer Front Drive[11.2010 - 07.2013] GSJ15 |
36293-35040 |
from US $420.36 |
||
|
36293
|
36293
36293-35050 Chain, Transfer Front Drive[07.2013 -] GSJ15..CHI,GCC,GEN,SA |
36293-35050 |
from US $349.44 |
||
|
41311M
|
41311M
41301-60140
Case, Center Differential
[11.2010 - 11.2015] GSJ15..MTM |
41301-60140 |
— | ||
| replacement | |||||
|
41311M
|
41311M
4130160142
Case Sub-Assy, Differential
[11.2010 - 11.2015] GSJ15..MTM |
4130160142 |
— | ||
|
41311M
|
41311M
41301-60141
Case, Center Differential
[11.2015 - 08.2017] GSJ15..MTM |
41301-60141 |
— | ||
|
41331M
|
41331M
90520-99079 Ring, Hole Snap(For Center Differential Planetary Ring Gear)[11.2010 -] GSJ15..MTM |
90520-99079 |
US $2.62 |
||
