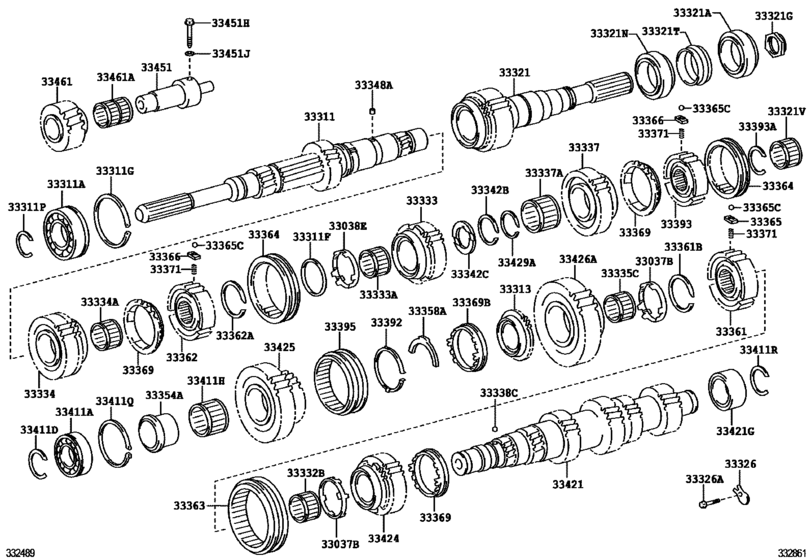

Transmission Gear (Mtm) ([07.2007 - ] RA61F (0707- )MTM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33037B
|
33037B
33037-35020 Ring Set, Synchronizer, No.1SYNCHRONIZER, NO.1 [11.2010 -] GSJ15..MTM 1ST GEAR SIDE |
33037-35020 |
US $50.16 |
||
|
33037B
|
33037B
33037-35050 Ring Set, Synchronizer, No.1SYNCHRONIZER, NO.1 [11.2010 -] GSJ15..MTM 2ND GEAR SIDE |
33037-35050 |
from US $65.02 |
||
|
33038E
|
33038E
33038-35010 Ring Set, Synchronizer, No.2SYNCHRONIZER, NO.2 [11.2010 -] GSJ15..MTM |
33038-35010 |
from US $60.65 |
||
|
33311
|
33311
33311-35141
Shaft, Input
[11.2010 -] GSJ15..MTM |
33311-35141 |
— | ||
|
33311A
|
33311A
90363-34002 Bearing (For Input Shaft Front)[11.2010 -] GSJ15..MTM |
90363-34002 |
from US $41.67 |
||
|
33311F
|
33311F
90560-45004 Spacer (For Input Shaft)[11.2010 -] GSJ15..MTM |
90560-45004 |
from US $0.70 |
||
|
33311G
|
33311G
90520-81007 Ring, Shaft Snap (For Front Bearing)SHAFT SNAP (FOR FRONT BEARING) [11.2010 -] GSJ15..MTM |
90520-81007 |
US $2.80 |
||
|
33311P
|
33311P
90520-31026 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.65,MARK A |
90520-31026 |
from US $0.96 |
||
|
33311P
|
33311P
90520-31027 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.70,MARK B |
90520-31027 |
from US $1.60 |
||
|
33311P
|
33311P
90520-31028 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.75,MARK C |
90520-31028 |
from US $1.60 |
||
|
33311P
|
33311P
90520-31029 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.80,MARK D |
90520-31029 |
from US $1.60 |
||
|
33311P
|
33311P
90520-31030 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.85,MARK E |
90520-31030 |
from US $1.75 |
||
|
33311P
|
33311P
90520-31031 Ring, Shaft Snap (For Input Shaft Rear Bearing)SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) [11.2010 -] GSJ15..MTM T=2.90,MARK F |
90520-31031 |
from US $1.75 |
||
|
33313
|
33313
33313-35010 Piece, Reverse Gear SplineREVERSE GEAR SPLINE [11.2010 -] GSJ15..MTM |
33313-35010 |
from US $28.30 |
||
|
33321
|
33321
33302-35021
Shaft, Output
[11.2010 - 05.2013] GSJ15..MTM |
33302-35021 |
— | ||
| replacement | |||||
|
33321
|
33321
33302-35022
Shaft, Output
[11.2010 - 05.2013] GSJ15..MTM |
33302-35022 |
— | ||
|
33321
|
33321
33302-35022
Shaft, Output
[05.2013 -] GSJ15..MTM |
33302-35022 |
— | ||
|
33321A
|
33321A
90366-50089 Bearing (For Output Shaft Rear)[11.2010 -] GSJ15..MTM |
90366-50089 |
from US $36.25 |
||
|
33321G
|
33321G
90179-48004 Nut (For Manual Transmission Output Shaft Rear Set)[11.2010 -] GSJ15..MTM |
90179-48004 |
from US $2.45 |
||
|
33321N
|
33321N
90366-50097 Bearing (For Output Shaft Front)[11.2010 -] GSJ15..MTM |
90366-50097 |
US $47.04 |
||
|
33321T
|
33321T
35469-35030 Spacer (For Output Shaft)[11.2010 -] GSJ15..MTM |
35469-35030 |
from US $6.45 |
||
|
33321V
|
33321V
90364-33012 Bearing (For Output Shaft Center)[11.2010 - 05.2015] GSJ15..MTM |
90364-33012 |
from US $28.84 |
||
|
33321V
|
33321V
90364-33017
Bearing (For Output Shaft Center)
[12.2015 -] GSJ15..MTM |
90364-33017 |
— | ||
|
33321V
|
33321V
90364-T0038 Bearing, Input Shaft[05.2015 - 12.2015] GSJ15..MTM |
90364-T0038 |
US $28.65 |
||
|
33326
|
33326
33326-35010 Plate, Bearing LockBEARING LOCK [11.2010 -] GSJ15..MTM |
33326-35010 |
US $3.79 |
||
|
33326A
|
33326A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[11.2010 -] GSJ15..MTM |
91611-B0825 |
from US $1.08 |
||
|
33332B
|
33332B
90364-54007 Bearing, Needle Roller (For 2Nd Gear)NEEDLE ROLLER (FOR 2ND GEAR) [11.2010 -] GSJ15..MTM |
90364-54007 |
US $32.50 |
||
|
33333
|
33333
33034-35111 Gear, 3Rd3RD [11.2010 -] GSJ15..MTM |
33034-35111 |
from US $135.41 |
||
|
33333A
|
33333A
90364-45010 Bearing, Needle Roller (For 3Rd Gear)NEEDLE ROLLER (FOR 3RD GEAR) [11.2010 -] GSJ15..MTM |
90364-45010 |
from US $24.64 |
||
|
33334
|
33334
33035-35010 Gear, 4Th4TH [11.2010 -] GSJ15..MTM |
33035-35010 |
US $135.41 |
||
|
33334A
|
33334A
90364-45011
Bearing, Needle Roller (For 4Th Gear)
[11.2010 -] GSJ15..MTM |
90364-45011 |
— | ||
|
33335C
|
33335C
90364-48002 Bearing, Needle Roller(For 1St Gear)NEEDLE ROLLER(FOR 1ST GEAR) [11.2010 -] GSJ15..MTM |
90364-48002 |
US $20.97 |
||
|
33337
|
33337
33037-60060 Gear Sub-Assy, 6Th6TH [11.2010 -] GSJ15..MTM |
33037-60060 |
US $125.80 |
||
|
33337A
|
33337A
90364-42003 Bearing, Needle Roller (For 6Th Gear)NEEDLE ROLLER (FOR 6TH GEAR) [11.2010 -] GSJ15..MTM |
90364-42003 |
US $57.96 |
||
|
33338C
|
33338C
90360-06004 Ball, Detent(For Gear Shift Head No.4)[11.2010 -] GSJ15..MTM |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
33338C
|
33338C
90080-36191
Ball, Check Valve
[11.2010 -] GSJ15..MTM |
90080-36191 |
— | ||
|
33342B
|
33342B
90520-39026 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.07,MARK A |
90520-39026 |
from US $1.31 |
||
|
33342B
|
33342B
90520-39027 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.12,MARK B |
90520-39027 |
from US $1.31 |
||
|
33342B
|
33342B
90520-39028 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.17,MARK C |
90520-39028 |
US $1.31 |
||
|
33342B
|
33342B
90520-39029 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.22,MARK D |
90520-39029 |
US $1.46 |
||
|
33342B
|
33342B
90520-39030 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.27,MARK E |
90520-39030 |
US $1.46 |
||
|
33342B
|
33342B
90520-39031 Ring, Shaft Snap (For Gear Thrust Washer)SHAFT SNAP (FOR GEAR THRUST WASHER) [11.2010 -] GSJ15..MTM T=2.32,MARK F |
90520-39031 |
US $1.46 |
||
|
33342C
|
33342C
33342-35010 Washer, 3Rd Gear Thrust3RD GEAR THRUST [11.2010 -] GSJ15..MTM |
33342-35010 |
US $11.72 |
||
|
33348A
|
33348A
90250-04056 Pin, Straight (For Gear Thrust Washer)[11.2010 -] GSJ15..MTM |
90250-04056 |
from US $0.67 |
||
|
33354A
|
33354A
33354-35010 Race, Reverse Gear Bearing, InnerREVERSE GEAR BEARING, INNER [11.2010 -] GSJ15..MTM |
33354-35010 |
US $15.87 |
||
|
33358A
|
33358A
33358-35010
Key, Synchromesh Shifting, No.4
[11.2010 -] GSJ15..MTM |
33358-35010 |
— | ||
|
33361
|
33361
33361-35050
Hub, Transmission Clutch, No.1
[11.2010 -] GSJ15..MTM |
33361-35050 |
— | ||
|
33361B
|
33361B
90520-45013 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.28,MARK A |
90520-45013 |
US $2.62 |
||
|
33361B
|
33361B
90520-45014 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.33,MARK B |
90520-45014 |
US $2.18 |
||
|
33361B
|
33361B
90520-45015 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.38,MARK C |
90520-45015 |
from US $2.18 |
||
|
33361B
|
33361B
90520-45016 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.43,MARK D |
90520-45016 |
from US $2.18 |
||
|
33361B
|
33361B
90520-45017 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.48,MARK E |
90520-45017 |
from US $2.18 |
||
|
33361B
|
33361B
90520-45018 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.53,MARK F |
90520-45018 |
US $2.18 |
||
|
33361B
|
33361B
90520-45019 Ring, Shaft Snap (For Clutch Hub No.1)SHAFT SNAP (FOR CLUTCH HUB NO.1) [11.2010 -] GSJ15..MTM T=2.58,MARK G |
90520-45019 |
US $2.18 |
||
|
33362
|
33362
33362-35050 Hub, Transmission Clutch, No.2TRANSMISSION CLUTCH, NO.2 [11.2010 -] GSJ15..MTM |
33362-35050 |
US $60.98 |
||
|
33362A
|
33362A
90520-42012 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=1.80,MARK A |
90520-42012 |
from US $1.75 |
||
|
33362A
|
33362A
90520-42013 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=1.85,MARK B |
90520-42013 |
from US $1.75 |
||
|
33362A
|
33362A
90520-42014 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=1.90,MARK C |
90520-42014 |
US $1.89 |
||
|
33362A
|
33362A
90520-42015 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=1.95,MARK D |
90520-42015 |
from US $1.89 |
||
|
33362A
|
33362A
90520-42016 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=2.00,MARK E |
90520-42016 |
from US $1.89 |
||
|
33362A
|
33362A
90520-42017 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=2.05,MARK F |
90520-42017 |
from US $2.04 |
||
|
33362A
|
33362A
90520-42018 Ring, Shaft Snap (For Clutch Hub No.2 Setting)SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) [11.2010 -] GSJ15..MTM T=2.10,MARK G |
90520-42018 |
US $2.04 |
||
|
33363
|
33363
33363-35041 Sleeve, Transmission Hub, No.1TRANSMISSION HUB, NO.1 [11.2010 -] GSJ15..MTM |
33363-35041 |
from US $72.88 |
||
|
33364
|
33364
33364-35061 Sleeve, Transmission Hub, No.2TRANSMISSION HUB, NO.2 [11.2010 -] GSJ15..MTM |
33364-35061 |
from US $72.88 |
||
|
33365
|
33365
33365-35050 Key, Synchromesh Shifting, No.1SYNCHROMESH SHIFTING, NO.1 [11.2010 -] GSJ15..MTM |
33365-35050 |
from US $1.38 |
||
|
33365C
|
33365C
90360-05010 Ball(For Synchromesh Shifting Key)[11.2010 -] GSJ15..MTM |
90360-05010 |
US $1.61 |
||
|
33366
|
33366
33366-35060 Key, Synchromesh Shifting, No.2SYNCHROMESH SHIFTING, NO.2 [11.2010 -] GSJ15..MTM |
33366-35060 |
from US $1.18 |
||
|
33369
|
33369
33369-35031 Ring, Synchronizer, No.3SYNCHRONIZER, NO.3 [11.2010 - 05.2013] GSJ15..MTM 5TH GEAR SIDE |
33369-35031 |
from US $36.04 |
||
|
33369
|
33369
33369-35050
Ring, Synchronizer, No.1
[05.2013 -] GSJ15..MTM 5TH GEAR SIDE |
33369-35050 |
— | ||
|
33369
|
33369
33369-35060 Ring, Synchronizer, No.3SYNCHRONIZER, NO.3 [11.2010 -] GSJ15..MTM 4TH,6TH GEAR SIDE |
33369-35060 |
from US $29.24 |
||
|
33369B
|
33369B
33381-35010
Ring, Synchronizer, No.4
[11.2010 - 07.2013] GSJ15..MTM |
33381-35010 |
— | ||
| replacement | |||||
|
33369B
|
33369B
33381-35011 Ring, Synchronizer, No.4[11.2010 - 07.2013] GSJ15..MTM |
33381-35011 |
from US $23.54 |
||
|
33369B
|
33369B
33381-35011 Ring, Synchronizer, No.4[07.2013 -] GSJ15..MTM |
33381-35011 |
from US $23.54 |
||
|
33371
|
33371
33371-53010 Spring, Synchromesh Shifting Key, No.1[11.2010 -] GSJ15..MTM |
33371-53010 |
from US $0.80 |
||
|
33392
|
33392
33392-35010 Spring, Synchromesh Shifting Key, No.3SYNCHROMESH SHIFTING KEY, NO.3 [11.2010 -] GSJ15..MTM |
33392-35010 |
from US $3.32 |
||
|
33393
|
33393
33393-35061
Hub, Transmission Clutch, No.3
[11.2010 -] GSJ15..MTM |
33393-35061 |
— | ||
|
33393A
|
33393A
90520-33022 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.10,MARK A |
90520-33022 |
US $1.31 |
||
|
33393A
|
33393A
90520-33023 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.15,MARK B |
90520-33023 |
US $1.31 |
||
|
33393A
|
33393A
90520-33024 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.20,MARK C |
90520-33024 |
US $1.46 |
||
|
33393A
|
33393A
90520-33025 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.25,MARK D |
90520-33025 |
US $1.46 |
||
|
33393A
|
33393A
90520-33026 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.30,MARK E |
90520-33026 |
US $1.46 |
||
|
33393A
|
33393A
90520-33027 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.35,MARK F |
90520-33027 |
US $1.46 |
||
|
33393A
|
33393A
90520-33028 Ring, Shaft Snap (For Transmission Clutch Hub No.3)SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) [11.2010 -] GSJ15..MTM T=2.40,MARK G |
90520-33028 |
US $1.60 |
||
|
33395
|
33395
33395-35050
Sleeve, Transmission Hub, No.3
[11.2010 - 08.2013] GSJ15..MTM |
33395-35050 |
— | ||
| replacement | |||||
|
33395
|
33395
33395-35051 Sleeve, Transmission Hub, No.3[11.2010 - 08.2013] GSJ15..MTM |
33395-35051 |
US $59.62 |
||
|
33395
|
33395
33395-35051 Sleeve, Transmission Hub, No.3[08.2013 -] GSJ15..MTM |
33395-35051 |
US $59.62 |
||
|
33411A
|
33411A
90363-34003 Bearing Or Roller(For Counter Gear Front)[11.2010 -] GSJ15..MTM |
90363-34003 |
from US $24.49 |
||
|
33411D
|
33411D
90520-31015 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.35,MARK A |
90520-31015 |
US $0.61 |
||
|
33411D
|
33411D
90520-31016 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.40,MARK B |
90520-31016 |
US $1.02 |
||
|
33411D
|
33411D
90520-31017 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.45,MARK C |
90520-31017 |
US $1.02 |
||
|
33411D
|
33411D
90520-31018 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.50,MARK D |
90520-31018 |
US $1.16 |
||
|
33411D
|
33411D
90520-31019 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.55,MARK E |
90520-31019 |
US $1.16 |
||
|
33411D
|
33411D
90520-31020 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.60,MARK F |
90520-31020 |
US $1.16 |
||
|
33411D
|
33411D
90520-31021 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.65,MARK G |
90520-31021 |
US $1.16 |
||
|
33411D
|
33411D
90520-31022 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.70,MARK H |
90520-31022 |
US $1.16 |
||
|
33411D
|
33411D
90520-31023 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.75,MARK J |
90520-31023 |
US $1.16 |
||
|
33411D
|
33411D
90520-31024 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.80,MARK K |
90520-31024 |
US $1.16 |
||
|
33411D
|
33411D
90520-31025 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.85,MARK L |
90520-31025 |
US $1.16 |
||
|
33411D
|
33411D
90520-31033 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.90,MARK M |
90520-31033 |
US $1.16 |
||
|
33411H
|
33411H
90364-45009 Bearing Or Roller(For Counter Gear Rear)[11.2010 -] GSJ15..MTM |
90364-45009 |
US $59.47 |
||
|
33411Q
|
33411Q
90520-68005 Ring, Counter Gear Front Bearing Snap, No.2COUNTER GEAR FRONT BEARING SNAP, NO.2 [11.2010 -] GSJ15..MTM T=1.67 |
90520-68005 |
US $1.25 |
||
|
33411R
|
33411R
90520-31015 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.35,MARK A |
90520-31015 |
US $0.61 |
||
|
33411R
|
33411R
90520-31016 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.40,MARK B |
90520-31016 |
US $1.02 |
||
|
33411R
|
33411R
90520-31017 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.45,MARK C |
90520-31017 |
US $1.02 |
||
|
33411R
|
33411R
90520-31018 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.50,MARK D |
90520-31018 |
US $1.16 |
||
|
33411R
|
33411R
90520-31019 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.55,MARK E |
90520-31019 |
US $1.16 |
||
|
33411R
|
33411R
90520-31020 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.60,MARK F |
90520-31020 |
US $1.16 |
||
|
33411R
|
33411R
90520-31021 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.65,MARK G |
90520-31021 |
US $1.16 |
||
|
33411R
|
33411R
90520-31022 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.70,MARK H |
90520-31022 |
US $1.16 |
||
|
33411R
|
33411R
90520-31023 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.75,MARK J |
90520-31023 |
US $1.16 |
||
|
33411R
|
33411R
90520-31024 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.80,MARK K |
90520-31024 |
US $1.16 |
||
|
33411R
|
33411R
90520-31025 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.85,MARK L |
90520-31025 |
US $1.16 |
||
|
33411R
|
33411R
90520-31033 Ring, Counter Gear Front Bearing Snap, No.1COUNTER GEAR FRONT BEARING SNAP, NO.1 [11.2010 -] GSJ15..MTM T=2.90,MARK M |
90520-31033 |
US $1.16 |
||
|
33421
|
33421
33421-60210 Gear, CounterCOUNTER [11.2010 -] GSJ15..MTM |
33421-60210 |
US $272.56 |
||
|
33421G
|
33421G
90365-34009 Bearing, Radial Ball(For Counter Gear Rear)RADIAL BALL(FOR COUNTER GEAR REAR) [11.2010 -] GSJ15..MTM |
90365-34009 |
from US $70.79 |
||
|
33424
|
33424
33424-35011 Gear, Counter Shaft 2Nd SpeedCOUNTER SHAFT 2ND SPEED [11.2010 -] GSJ15..MTM |
33424-35011 |
US $132 |
||
|
33425
|
33425
33425-35010 Gear, Countershaft ReverseCOUNTERSHAFT REVERSE [11.2010 -] GSJ15..MTM |
33425-35010 |
US $145.60 |
||
|
33426A
|
33426A
33426-35011 Gear, Countershaft, 1St SpeedCOUNTERSHAFT, 1ST SPEED [11.2010 -] GSJ15..MTM |
33426-35011 |
US $145.60 |
||
|
33429A
|
33429A
90562-42002 Ring, Shaft SnapSHAFT SNAP [11.2010 -] GSJ15..MTM T=1.0 |
90562-42002 |
from US $0.87 |
||
|
33451
|
33451
33451-60040
Shaft, Reverse Idler Gear
[11.2010 -] GSJ15..MTM |
33451-60040 |
— | ||
|
33451H
|
33451H
90105-10530 Bolt (For Reverse Idler Gear Shaft)[11.2010 -] GSJ15..MTM |
90105-10530 |
US $2.04 |
||
|
33451J
|
33451J
90430-10021 Gasket (For Reverse Idler Gear Shaft)[11.2010 -] GSJ15..MTM |
90430-10021 |
US $0.61 |
||
|
33461
|
33461
33461-35081
Gear, Reverse Idler
[11.2010 -] GSJ15..MTM |
33461-35081 |
— | ||
|
33461A
|
33461A
90364-23005 Bearing, Reverse Idler GearREVERSE IDLER GEAR [11.2010 -] GSJ15..MTM |
90364-23005 |
from US $29.11 |
||
